End Output (Scan Tool Function 06)



End Output (Scan Tool Function 06)

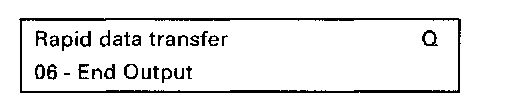

Indicated on display
- Press buttons -0- and -6- to select "End Output" function 06.





Indicated on display
- Press -Q- button to confirm input.





Indicated on display
- Switch ignition off.
- Disconnect VAG1551 scan tool from Data Link Connector (DLC).
- Switch ignition on.

ABS warning light -K47- and warning light for brake system -K118- must go out after approx. 2 seconds.
