Timing Cover

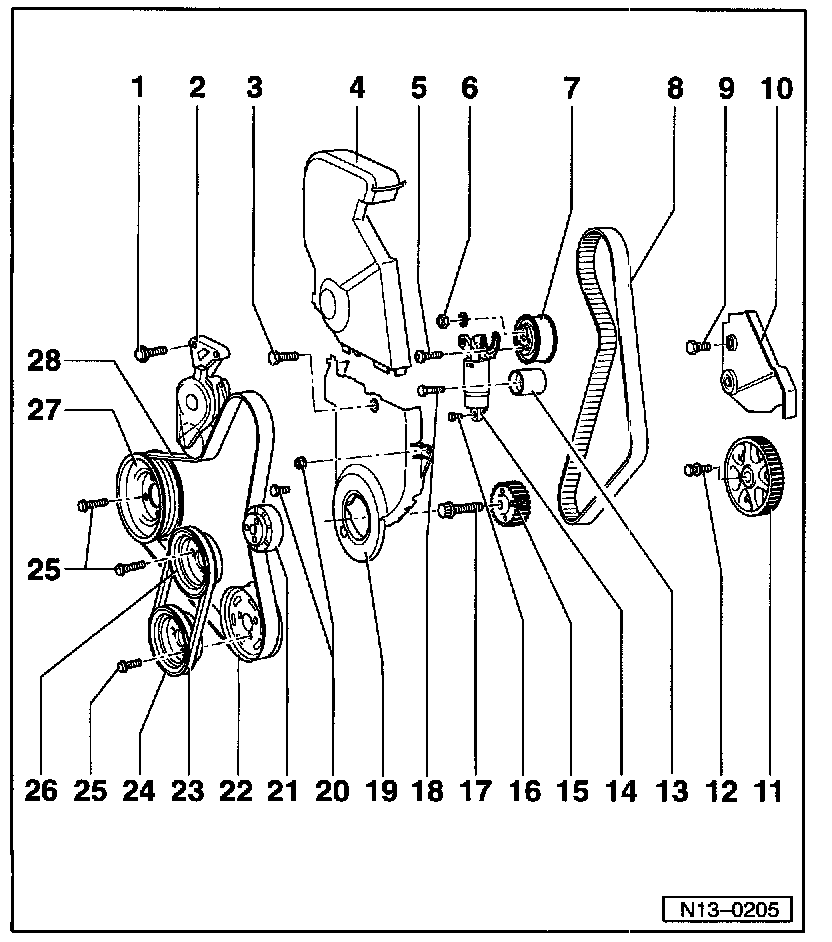

Toothed belt assembly overview






1. 25 Nm (18 ft lb)
2. Tensioning device for ribbed belt
3. 2O Nm (15 ft lb)
4. Toothed belt guard, upper section
5. 10 Nm (7 ft lb)
6. 20 Nm (15 ft lb)
7. Tensioning roller
8. Toothed belt
9. 20 Nm (15 ft lb)
10. Toothed belt guard, rear
11. Intermediate shaft sprocket
12. 80 Nm (59 ft lb)
13. Idler wheel
14. Tensioner for toothed belt
15. Crankshaft toothed belt sprocket
16. 10 Nm (7 ft lb)
17. 90 Nm +1/4 turn (90°) further
18. 25 Nm (18 ft lb)
19. Toothed belt guard - lower part
20. 10 Nm (7 ft lb)
21. Pulley
22. Pulley
23. V-belt
24. Pulley
25. 25 Nm (18 ft lb)
26. Pulley
27. Belt pulley/vibration damper
28. Ribbed belt
