Body Control Systems: Locations

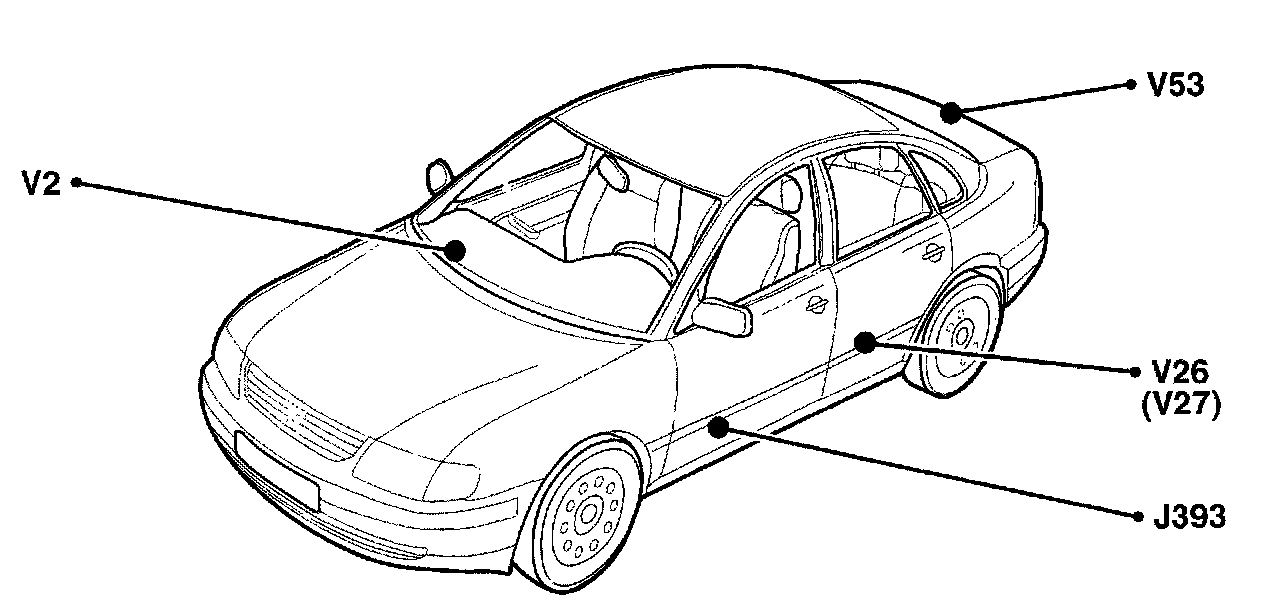

Component Locations

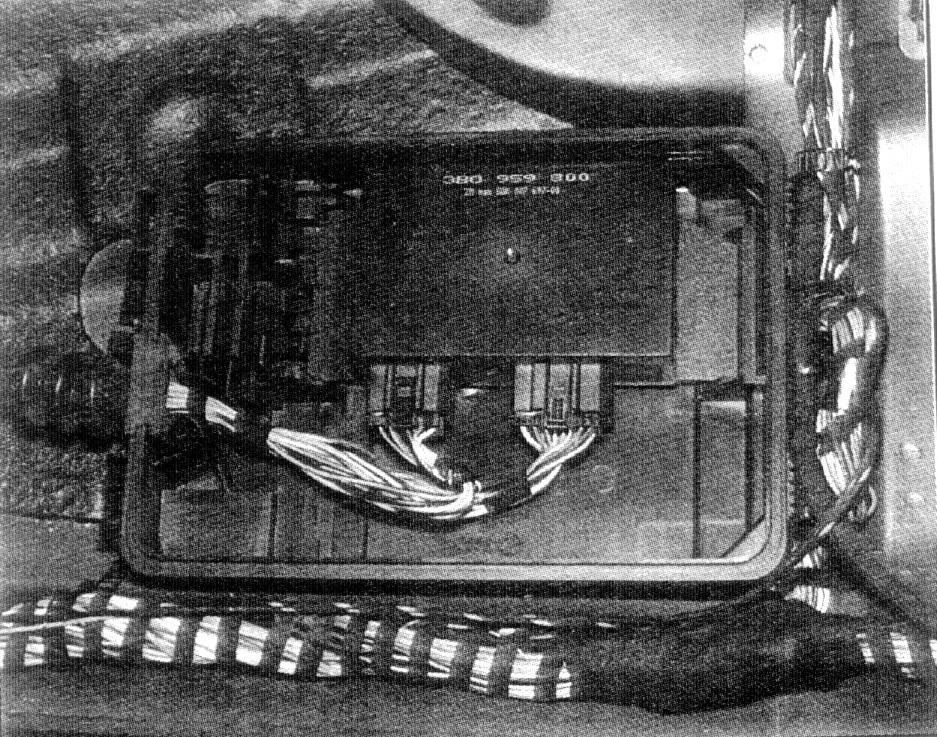

J393 Central Control Module / Comfort System Module:

J393 Central Control Module for Comfort System
- in protective box in floorpan cavity under driver's seat/carpet

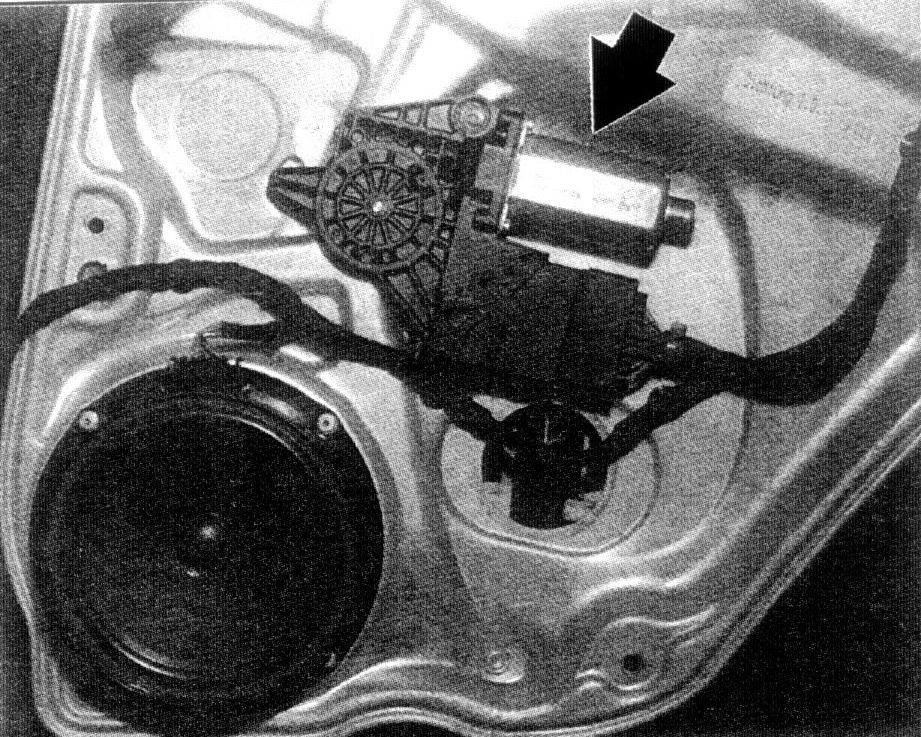

V26/V27 Rear Window Motor:

V26 Left Rear Window Motor

V27 Right rear window motor
- mounted to inside door panel structure at window regulator (right rear shown)

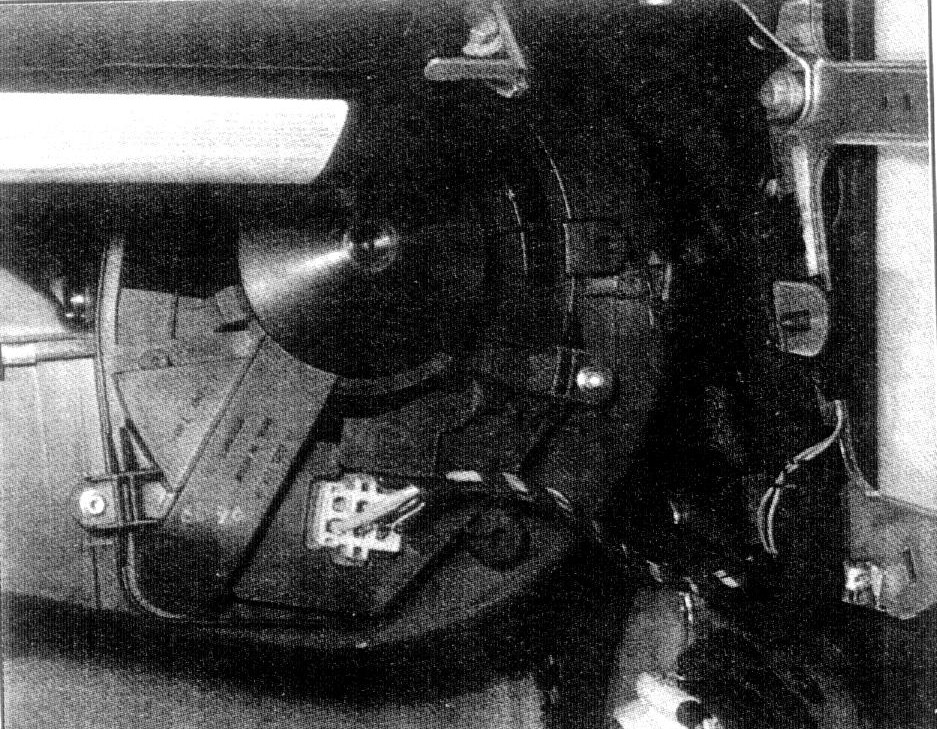

V2 Fresh Air Blower:

V2 Fresh Air Blower
- in fan/evaporator housing behind instrument panel/glovebox, right-side

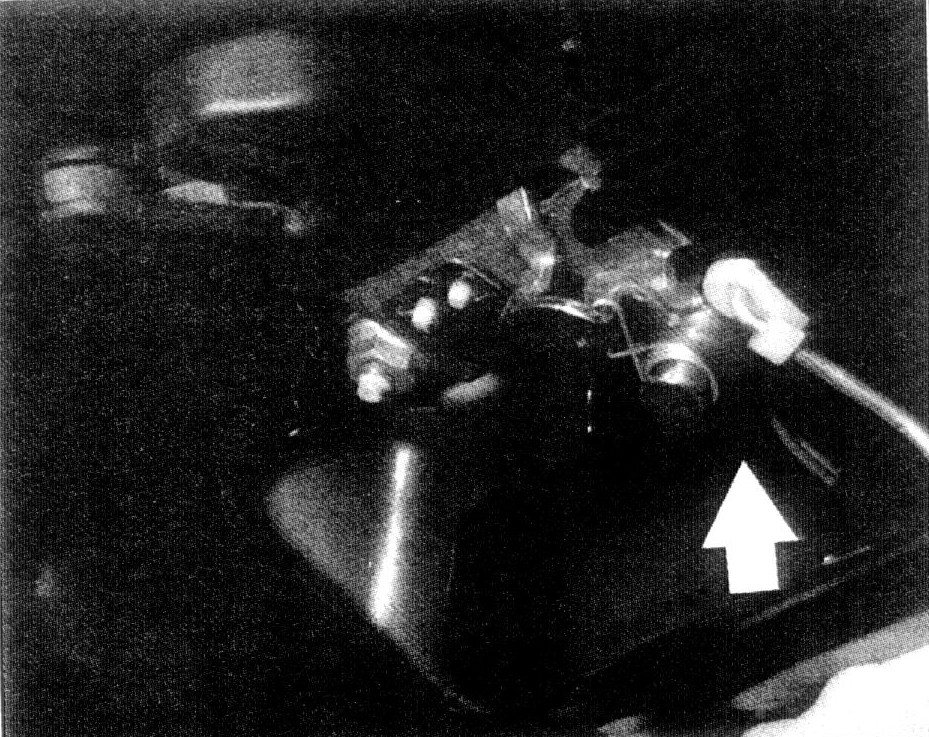

V53 Deck Lid Central Locking System:

V53 Deck Lid Central Locking System Motor
- in rear lid lock/latch mechanism
