Cruise Control Servo: Adjustments
Vacuum Servo Rod, Adjusting -
Adjust as per instructions above

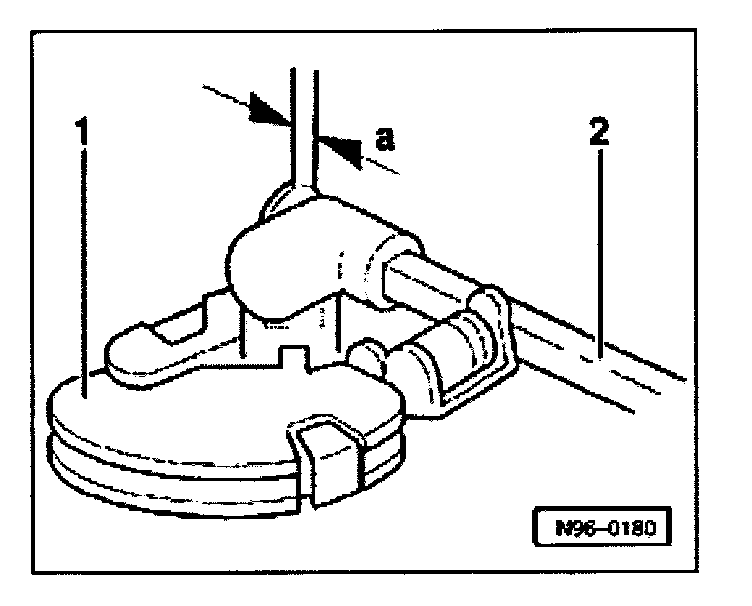

Play -a- between rod -2- and stop on throttle housing linkage -1- must be between
0.5 mm and 1.0 mm (0.019" and 0.03") -
Secure servo rod to keep from turning.
