Compressor Bracket, Removing and Installing




Compressor Bracket, Removing And Installing

Special tools, testers, measuring instruments and auxiliary items required

- Drift 3204
- Wrench 3212 or equivalent







- Open end wrench 3312
- Torque wrench VAG 1331 (5 - 50 Nm) or equivalent


NOTE:
- The compressor bracket and related components can be removed and installed without having to open the refrigerant circuit
- Removing ribbed drive belt

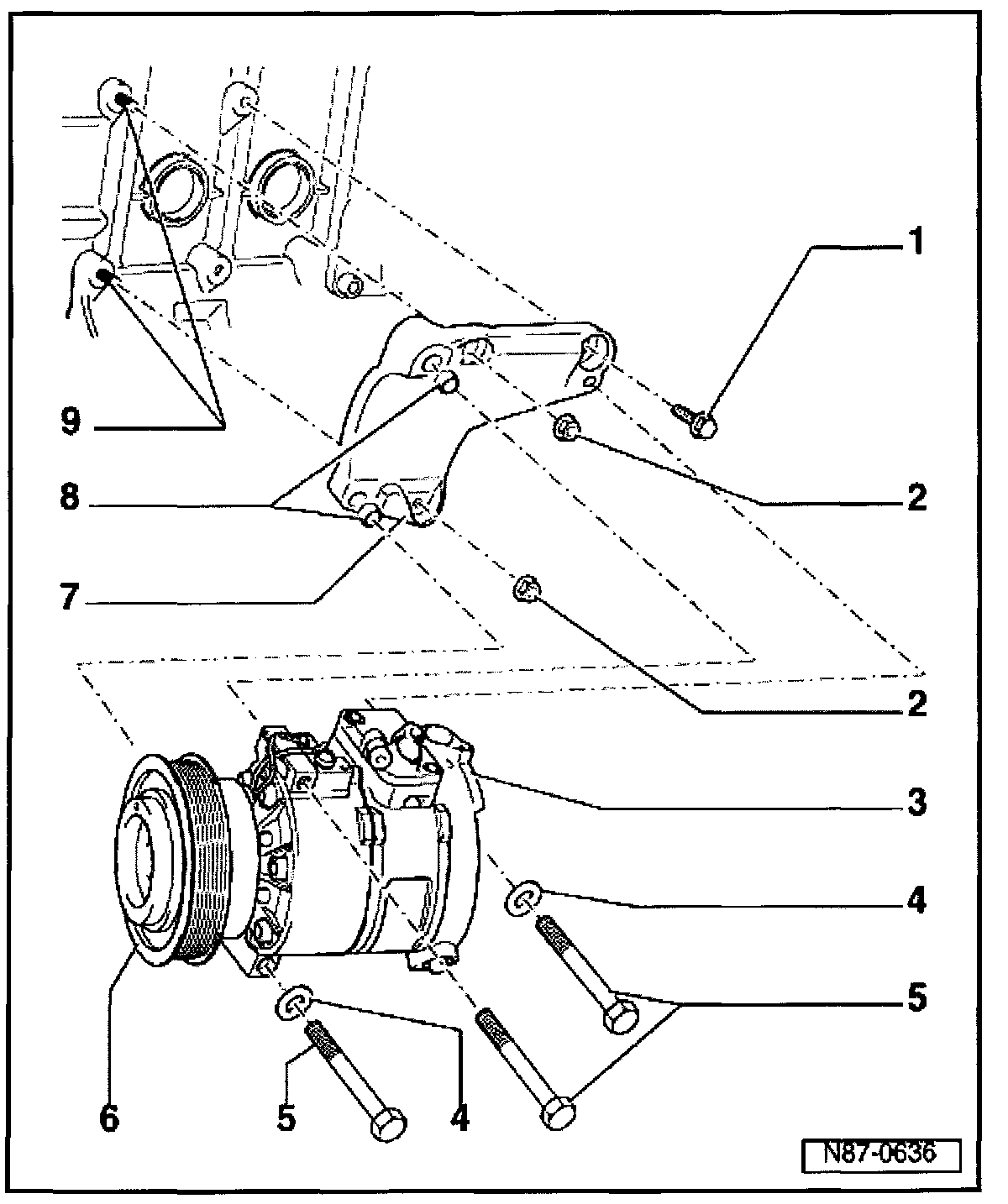

1 - Hex head combination bolt
- M8 x 26
- 25 Nm (18 ft lb)
2 - Nuts
- M8
- 25 Nm (18 ft lb)
3 - Compressor
- Manufacturer: Denso
- With A/C clutch -N25-
4 - Washer
5 - Hex head bolt
- M8 x 88
- 25 Nm (18 ft lb)
6 - A/C clutch -N25-
7 - Compressor bracket
8 - Spacer sleeve
- Qty.: 2
- Ensure proper fit in bracket
9 - Stud
- M8 X 20
