Vehicle Speed Sensor: Service and Repair
Vehicle speed sensor (VSS) -G68-:
-

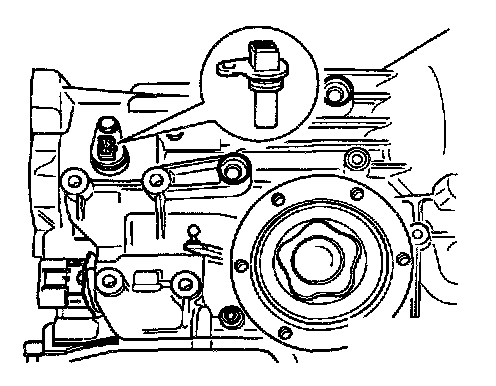

Location: The
vehicle speed sensor is located on top of the transmission.
Removing and installing vehicle speed sensor:
-
Pull black connector off sensor.
-
Remove bolt and pull sensor out.
-
Replace seal.
Installation is performed in reverse order of removal.
-
Tighten bolt to
10 Nm (7 ft lb).
