System Specifications



Capacities

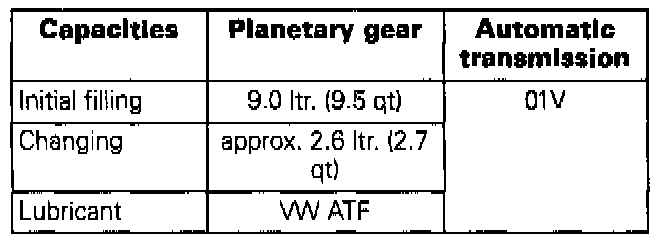

Planetary gearbox





Type VW ATF
Container size 0.5 ltr. Part No. G 052 162 A1
Container size 1.0 ltr. Part No. G 052 162 A2

CAUTION: Always check with your parts department for the latest part number information.
Note: Only VW ATF available as a replacement part, can be used in the 01V transmission.

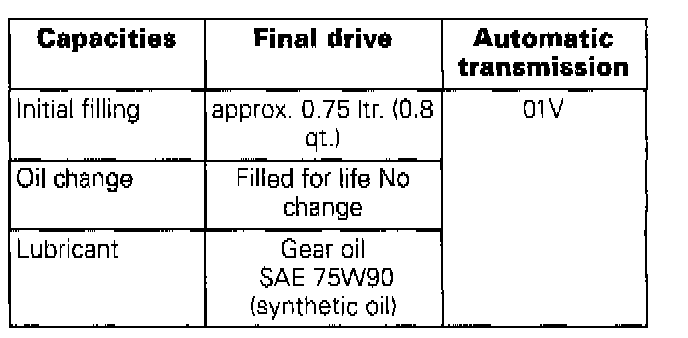

Final drive

Final Drive:





Type Gear oil SAE 75W90 (synthetic oil)
Container 1.0 ltr. Part No. G 052 145 S2

CAUTION: Always check with your parts department for the latest part number information.
