01V Automatic Transmission

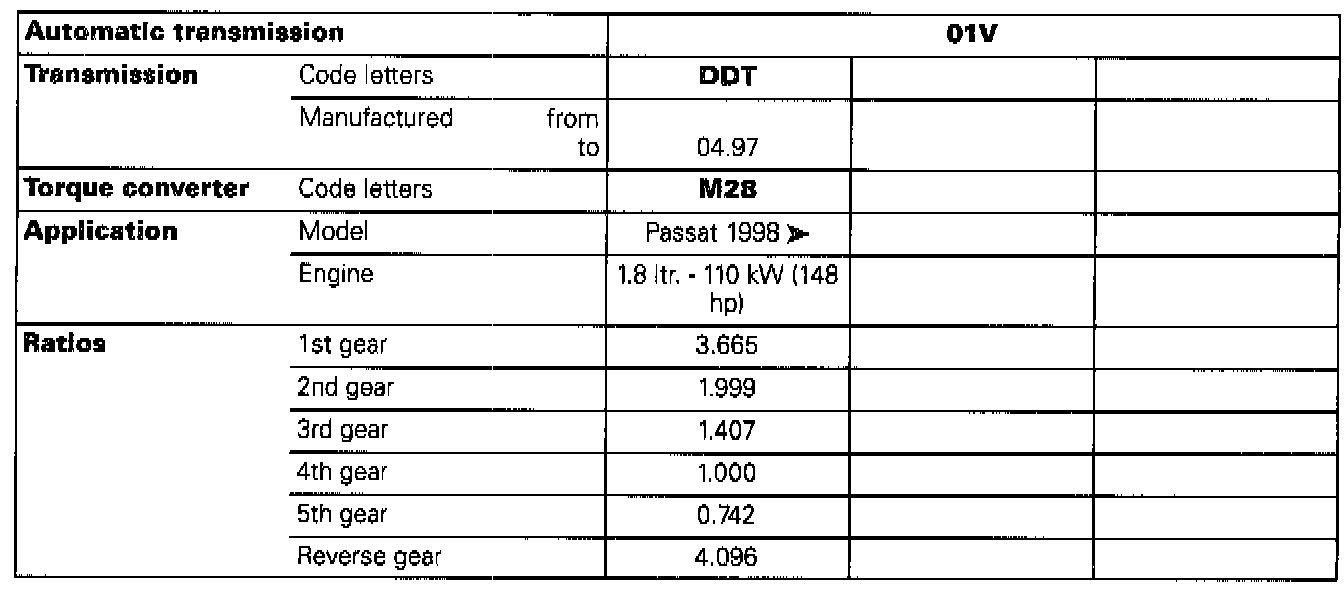

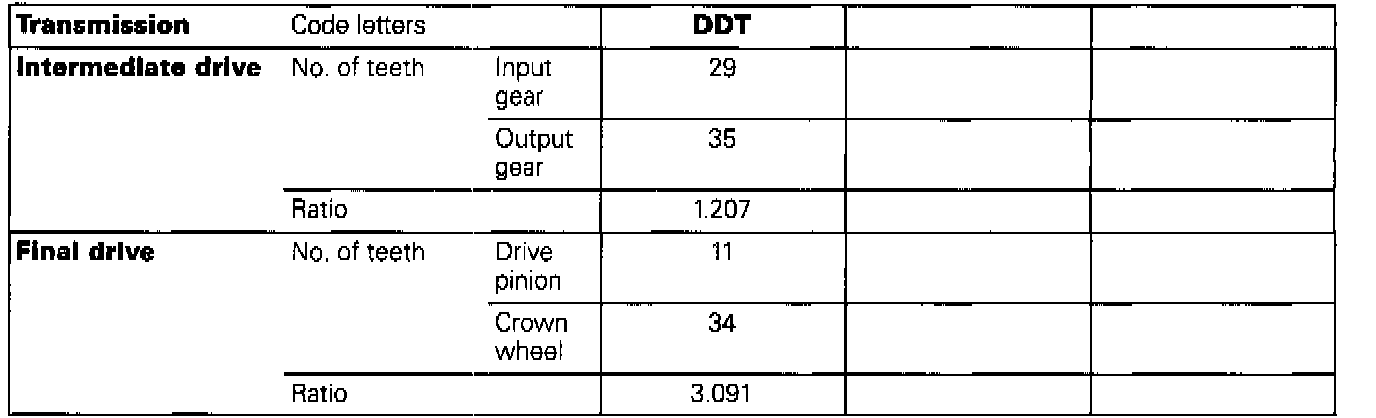

With Code Letters DDT.

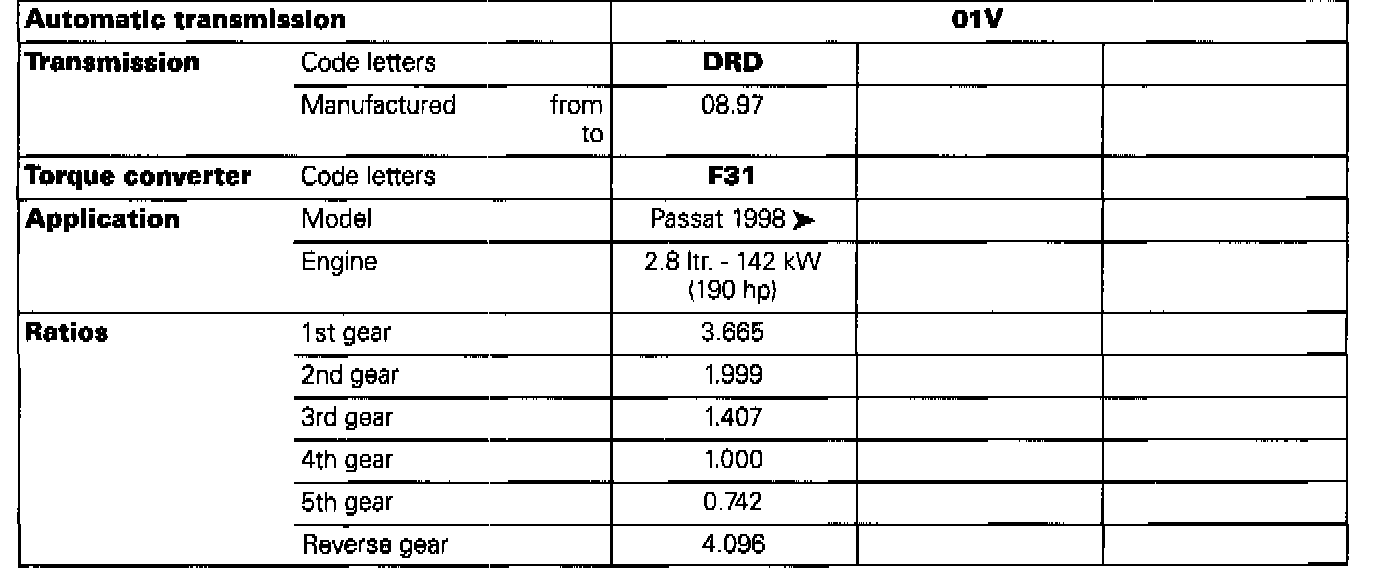

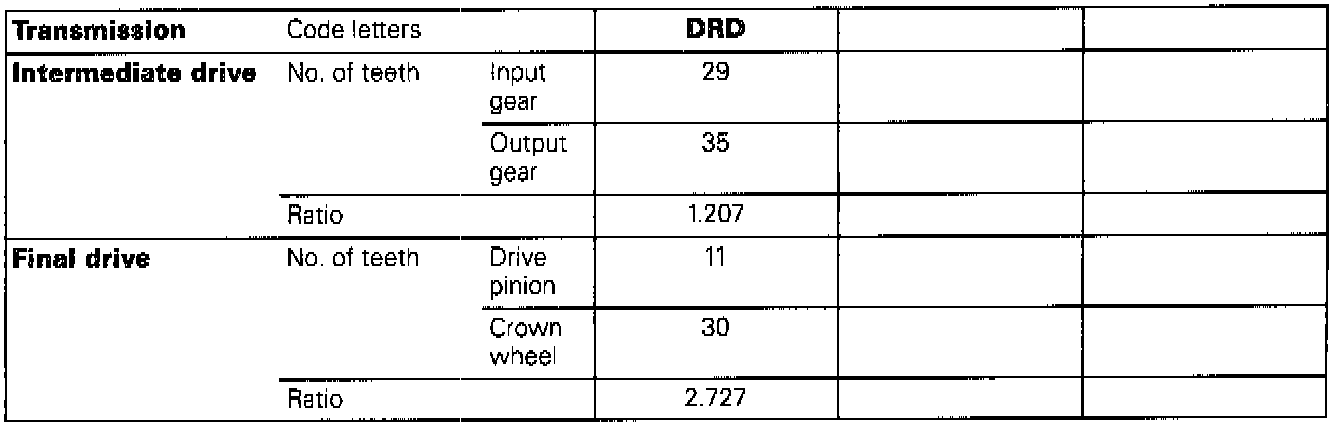

With Code Letters DRD.

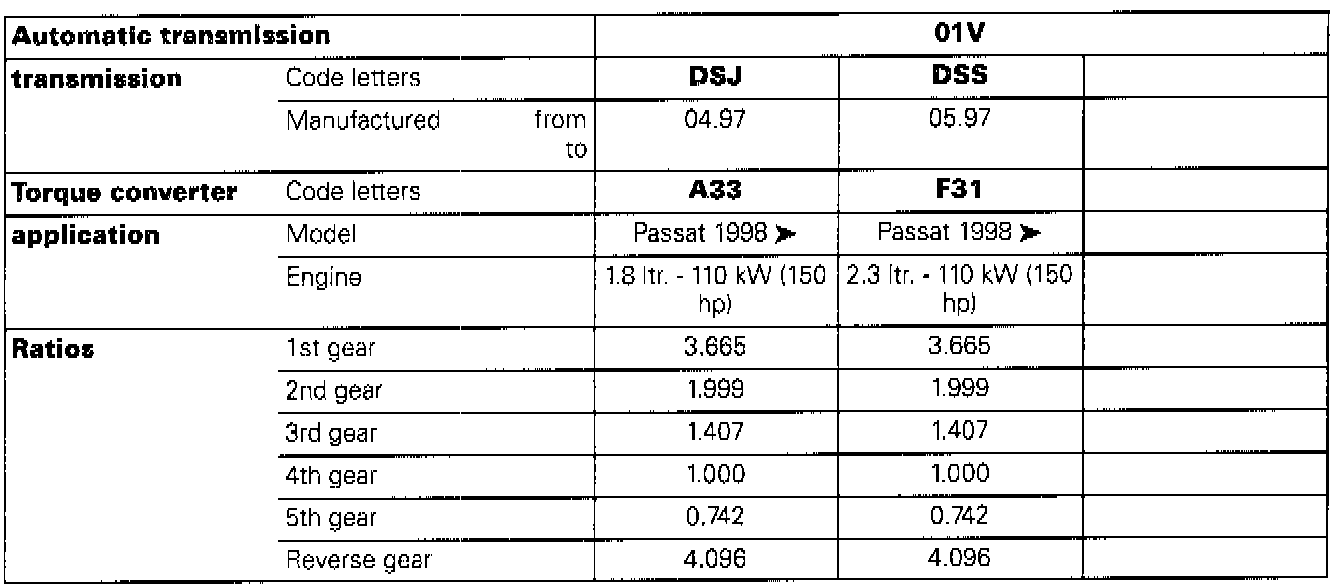

With Code Letters DSJ, and DSS.

Transmission codes, application, ratios, equipment

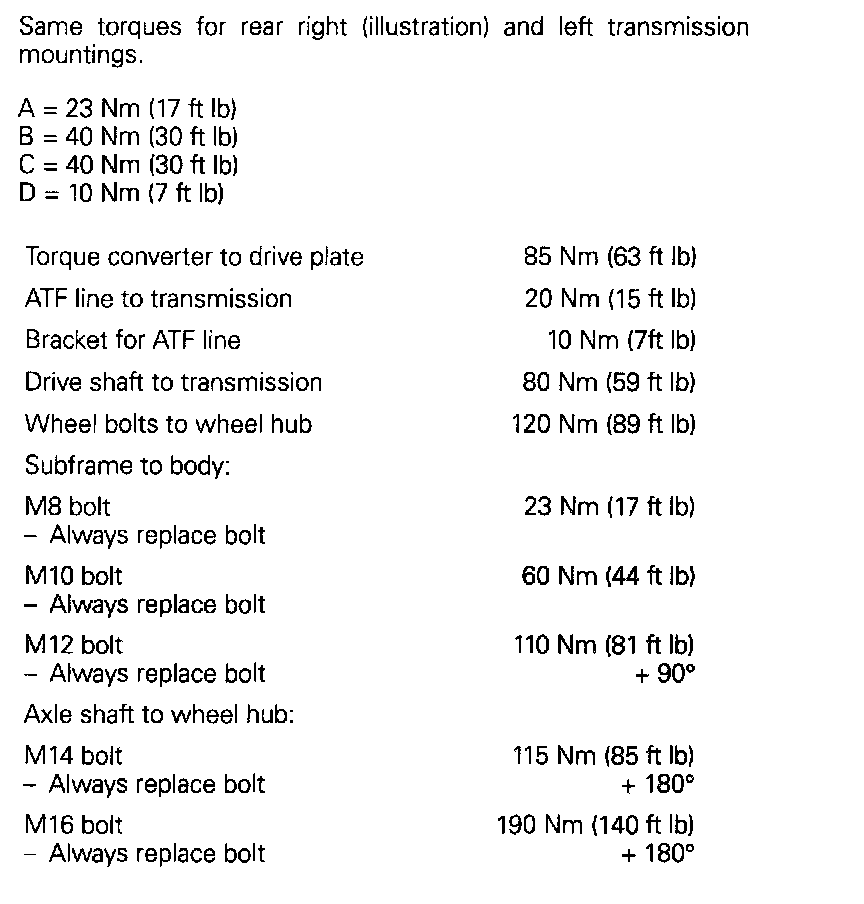

Tightening Torques
