Component Electrical Test Step List

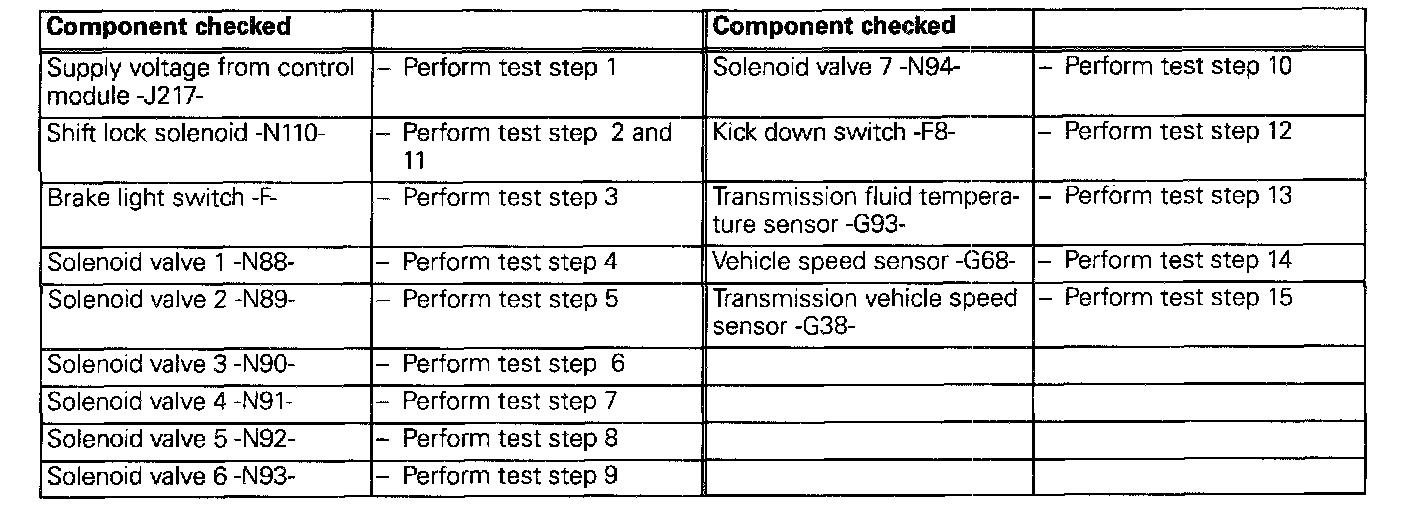

List of Test Steps (connector with 68-pins):
- Only perform test steps as listed in DTC table and measured value block.
- Test steps are described at "Electrical Test Tables (Pinout Charts)".
