Timing Chain

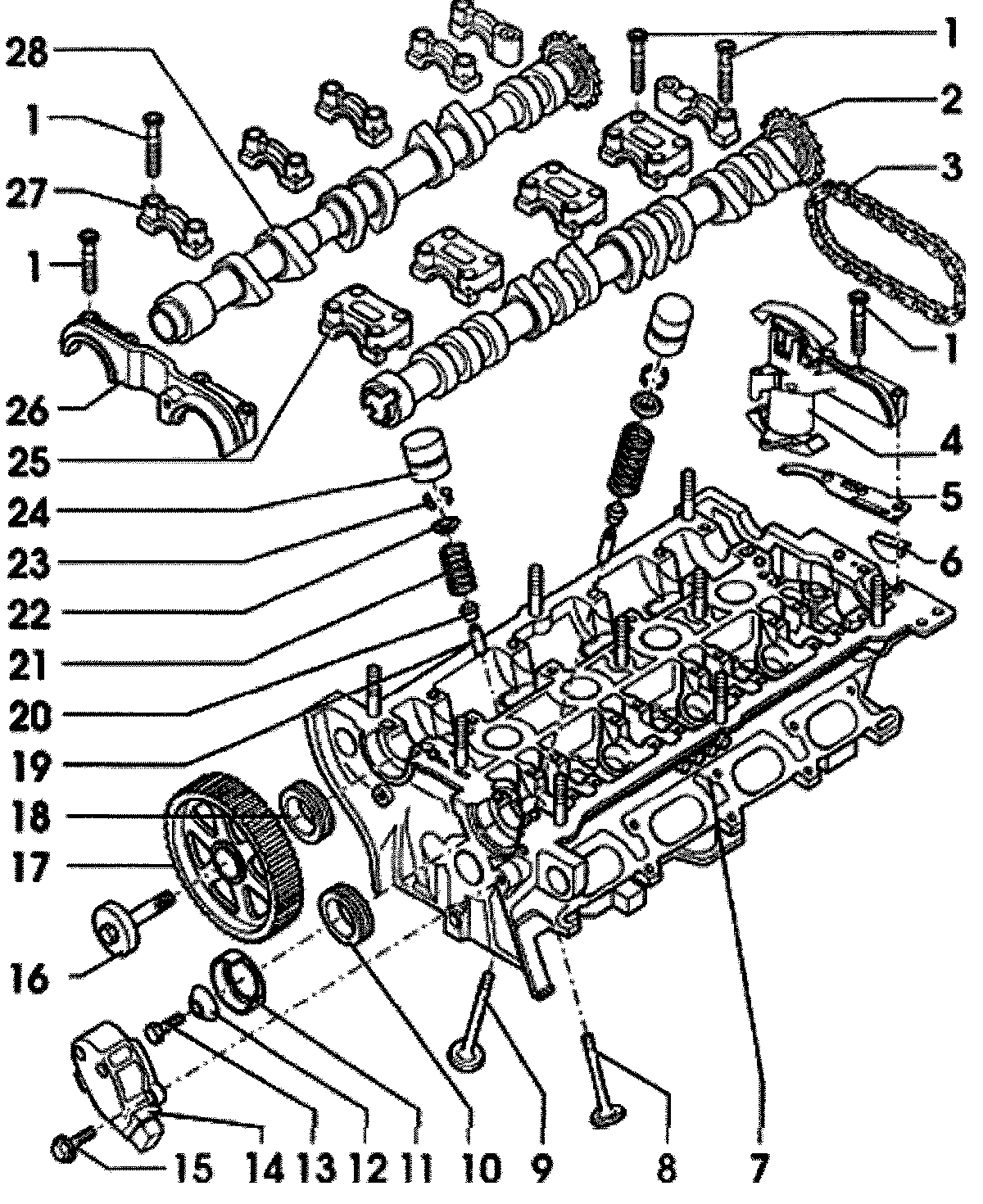

Valve train






1. 10 Nm
2. Intake camshaft
3. Drive chain
4. Chain tensioner
5. Seal
6. Seal
7. Cylinder head
8. Exhaust valves
9. Intake valves
10. Oil seal
11. Hood for Camshaft Position sensor
12. Washer
13. 25 Nm
14. Camshaft - Position sensor - G40
15. 10 Nm
16. 65 Nm
17. Camshaft - sprocket
18. Oil seal
19. Valve guide
20. Valve stem seal
21. Valve spring
22. Upper valve spring plate
23. Valve keepers
24. Hydraulic lifter
25. Intake camshaft bearing cap
26. Double bearing cap
27. Exhaust camshaft bearing cap
28. Exhaust camshaft
