Heating and A/C Controls, Assembly (W/O Climatronic)

Heating And A/C Controls, Assembly

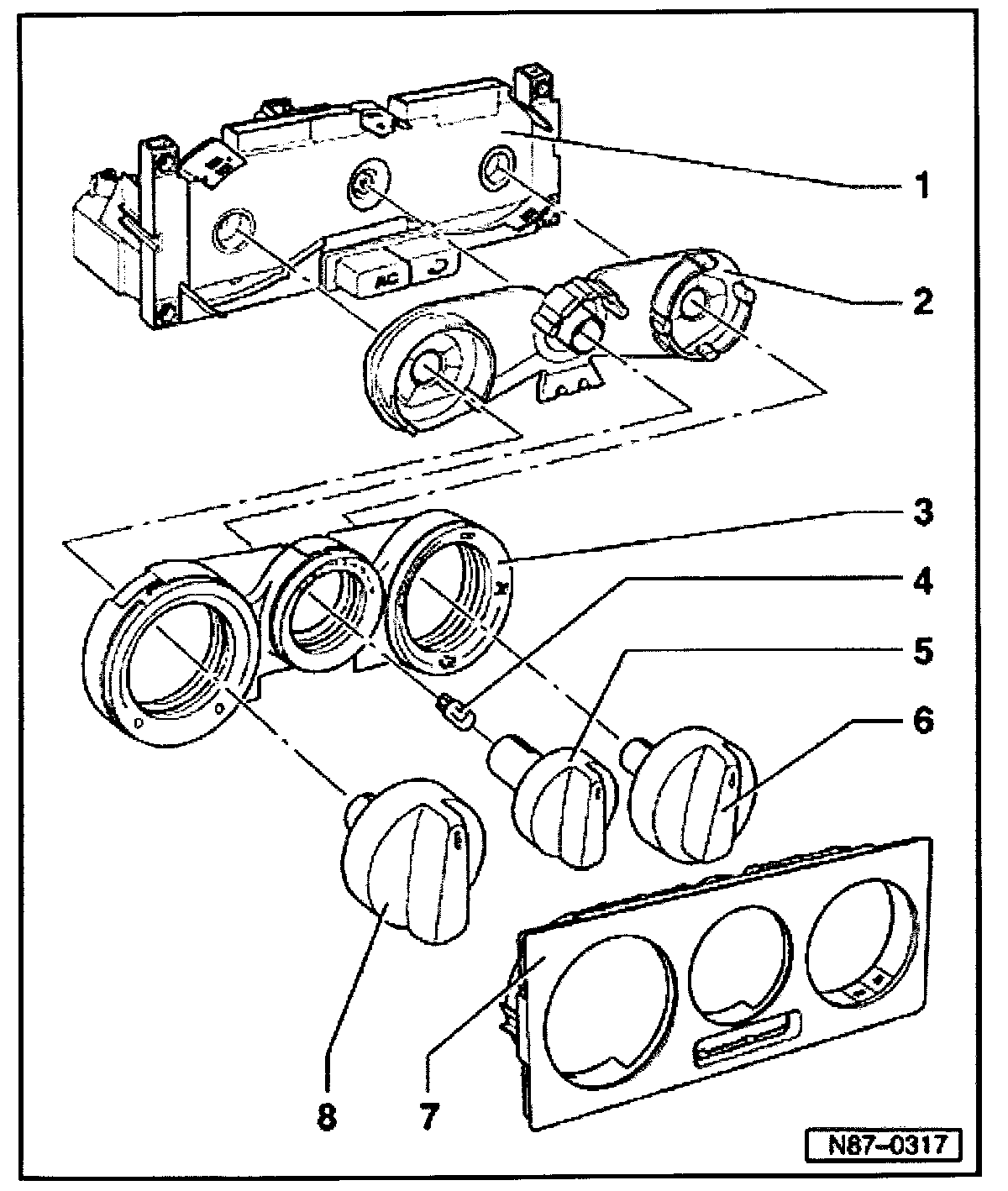

1 - Heating and A/C controls
With:
- A/C switch - E35-
- Fresh air blower switch -E9-
- Switch for fresh air blower and recirculated air -E184-
2 - Illumination filter
3 - Trim panel
4 - Fresh air control lever light -L16-
- 12V, 1.2W
- Removing:
- Un-clip trim panel -7- and rotary control -5-.
- Remove bulb (if necessary, slide a short piece fuel hose over bulb and pull out).
5 - Rotary control
- For blower speed
- To remove: Use pliers with suitable plastic or rubber protection on jaws
6 - Rotary control
- For air distribution
- To remove; Use pliers with suitable plastic or rubber protection on jaws
7 - Trim panel
8 - Rotary control
- For interior temperature
- To remove: Use pliers with suitable plastic or rubber protection on jaws
