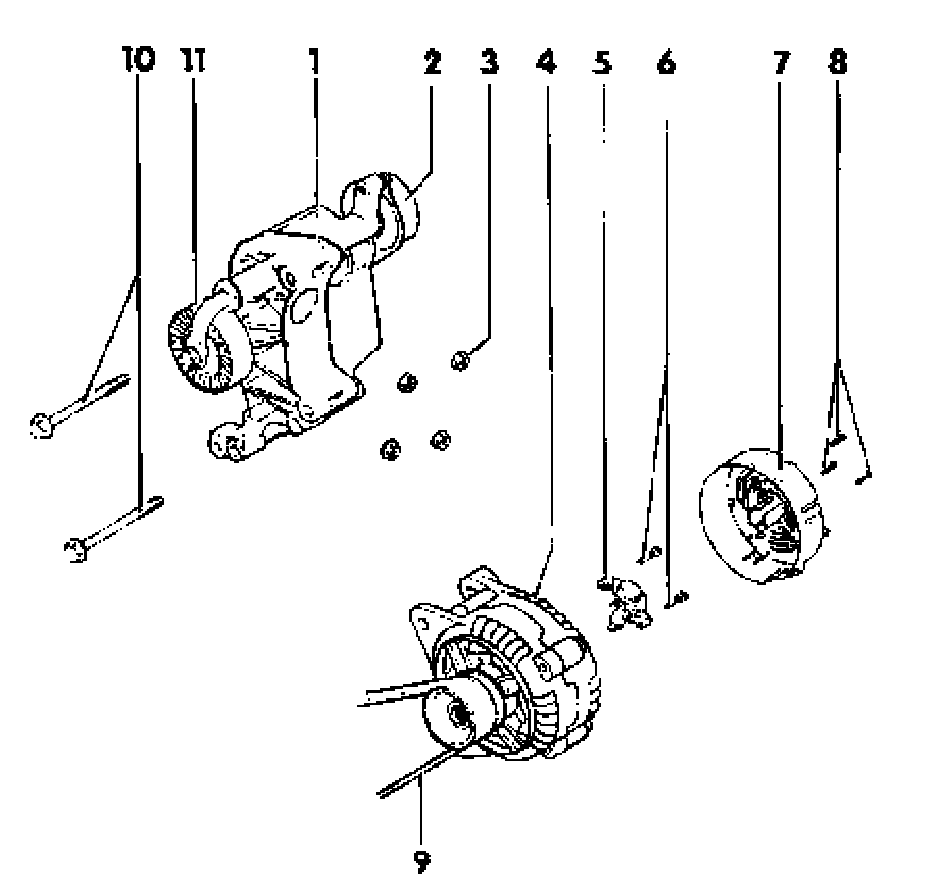

4-Cylinder Gasoline Engine With Power Steering and A/C

4-cylinder gasoline engine with power steering and A/C





1 - Mounting bracket

2 - Spring tensioner

3 - Nut M8
-30 Nm (22 ft lb)

4 - Generator (GEN)

5 - Voltage Regulator (VR)
- When replacing, remove and install items - 8-, - 7-, -6 - .

6 - Phillips-head screws M4 x 25

7 - Cover

8 - Bolts M3 x 18

9 - Ribbed belt

10 - Bolt M8 x 85
-25 Nm (18 ft lb)

11-Tensioner (idler) pulley
