Heater Control Valve Cable: Service and Repair

Heating & Ventilation Cables, Installing And Adjusting

Heater control valve cable

NOTE:

- Attach cables before installing controls.
- Place outer cable against stops on controls and secure.
- Defroster and footwell flap cables are self-adjusting. Adjust by turning air distribution knob fully from stop to stop.
- Adjust cable on regulating valve with controls installed.

Cables, installing

Heater control valve cable






(Identification: red/white)

- Turn heater control valve knob fully to left stop.

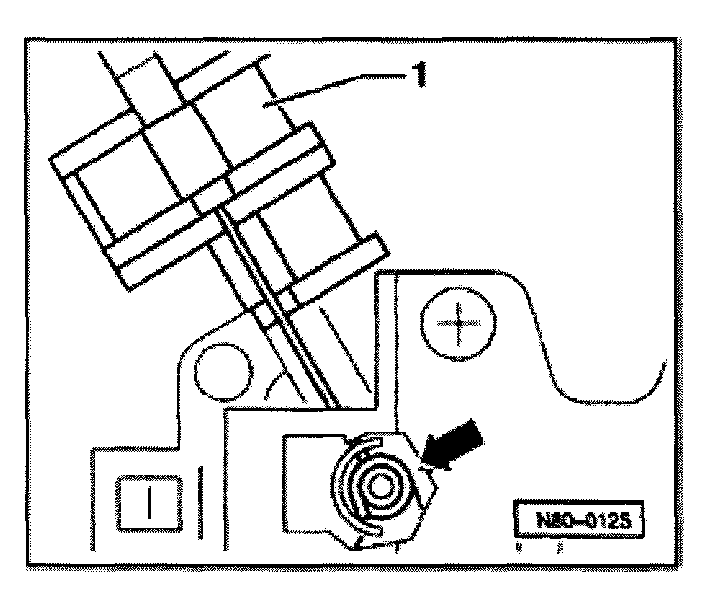

- Connect heater control valve cable -arrow-.
- Secure cable to controls -1- with clip.
