Caster, Checking and Adjusting

Checking
Caster must be checked at:
^ Steering pulls to one side
^ Wobbling of front wheels

Adjusting

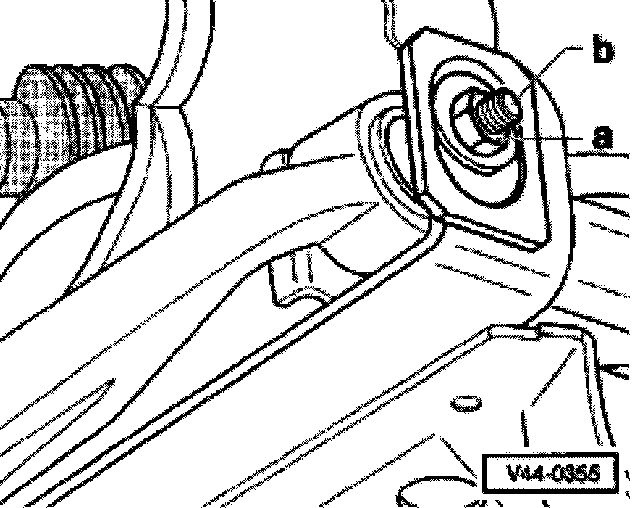

^ Loosen nut -a-.
^ Adjust eccentric bolt -b- until the specified values has been reached.
^ Tighten nut to 160 Nm.
