Vehicle Groups 1 and 6

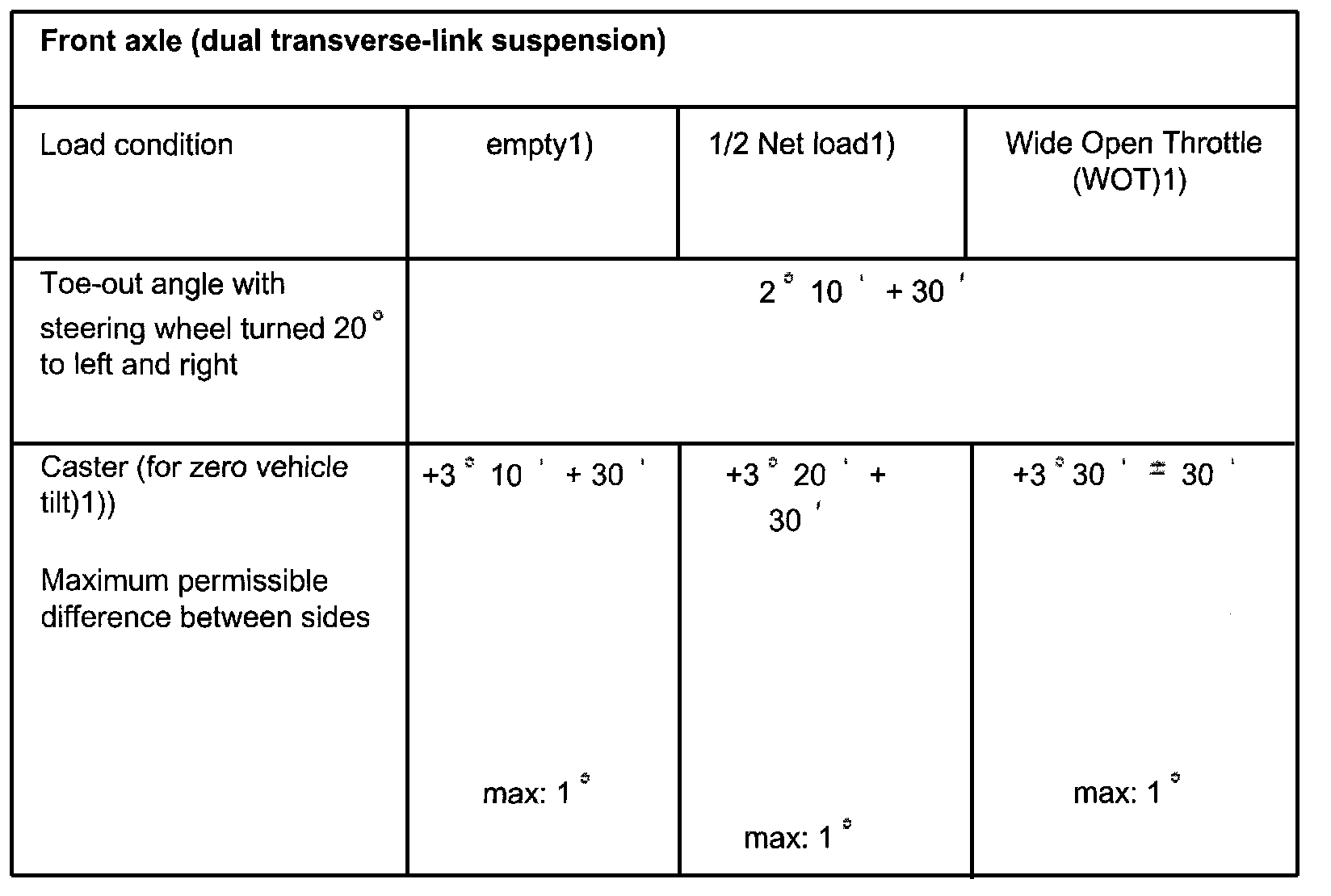

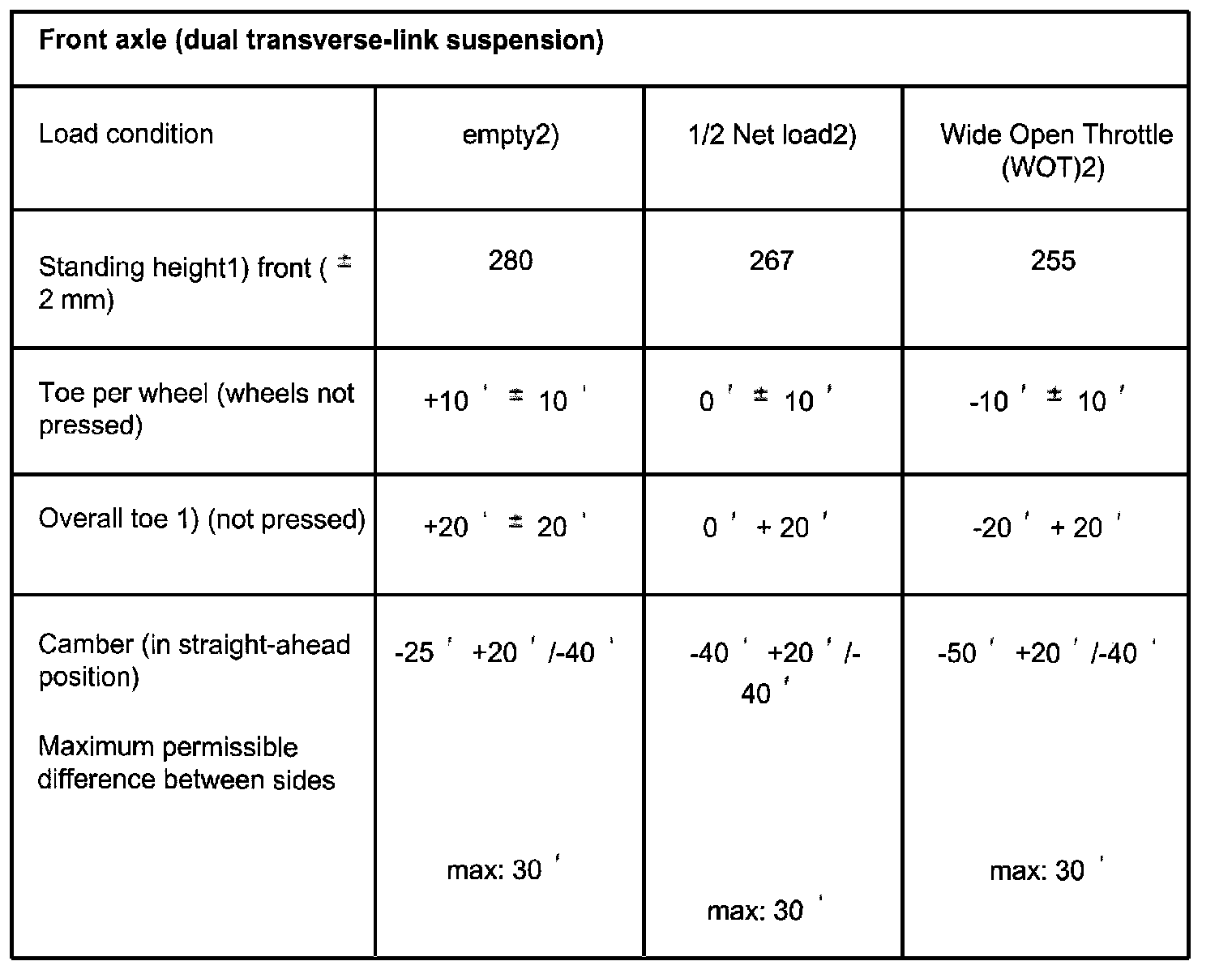

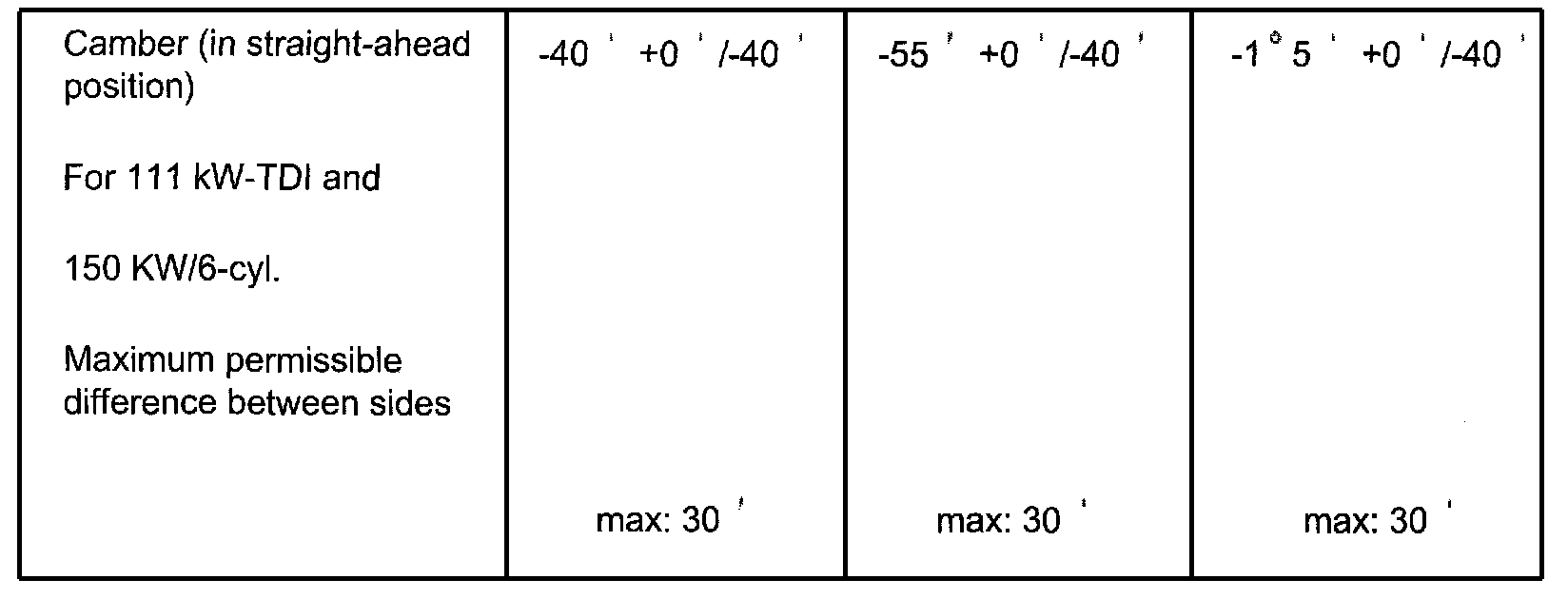

Front Suspension









1) If the standing height must be adjusted, the front axle must be aligned completely. After adjusting the standing height, push vehicle forward and backward approx. two meters and then measure standing height once again.
2) Measure longitudinal tilt of vehicle.





1) Load condition at time of vehicle alignment.

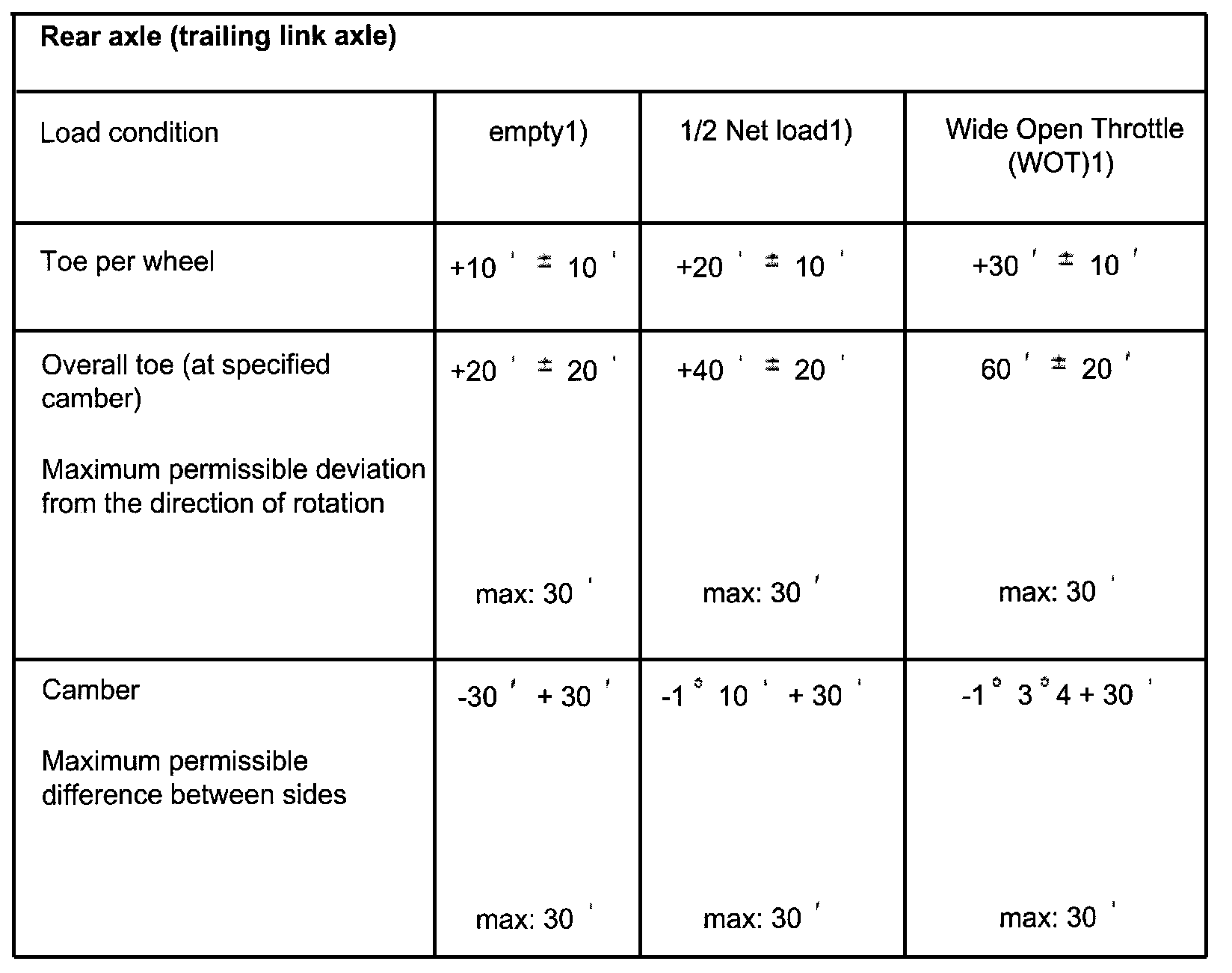

Rear Suspension





1) Load condition at time of vehicle alignment.
