Determining Vehicle Group Number

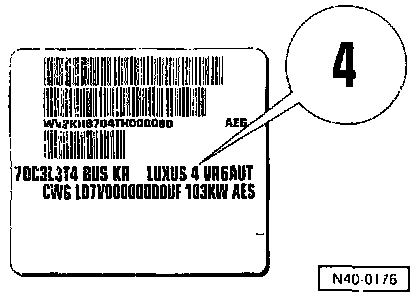

Vehicle Data Plate, Group Number Position

Group numbers 1 - 4 exist at present.

Digit -arrow- indicates vehicle group to which a vehicle is allocated.

The word "LUXUS" on vehicle data plate is given as an example. It is possible that a different word, for example "Kom. " be printed at this point.
