Accelerator Pedal Position Sensor: Service and Repair

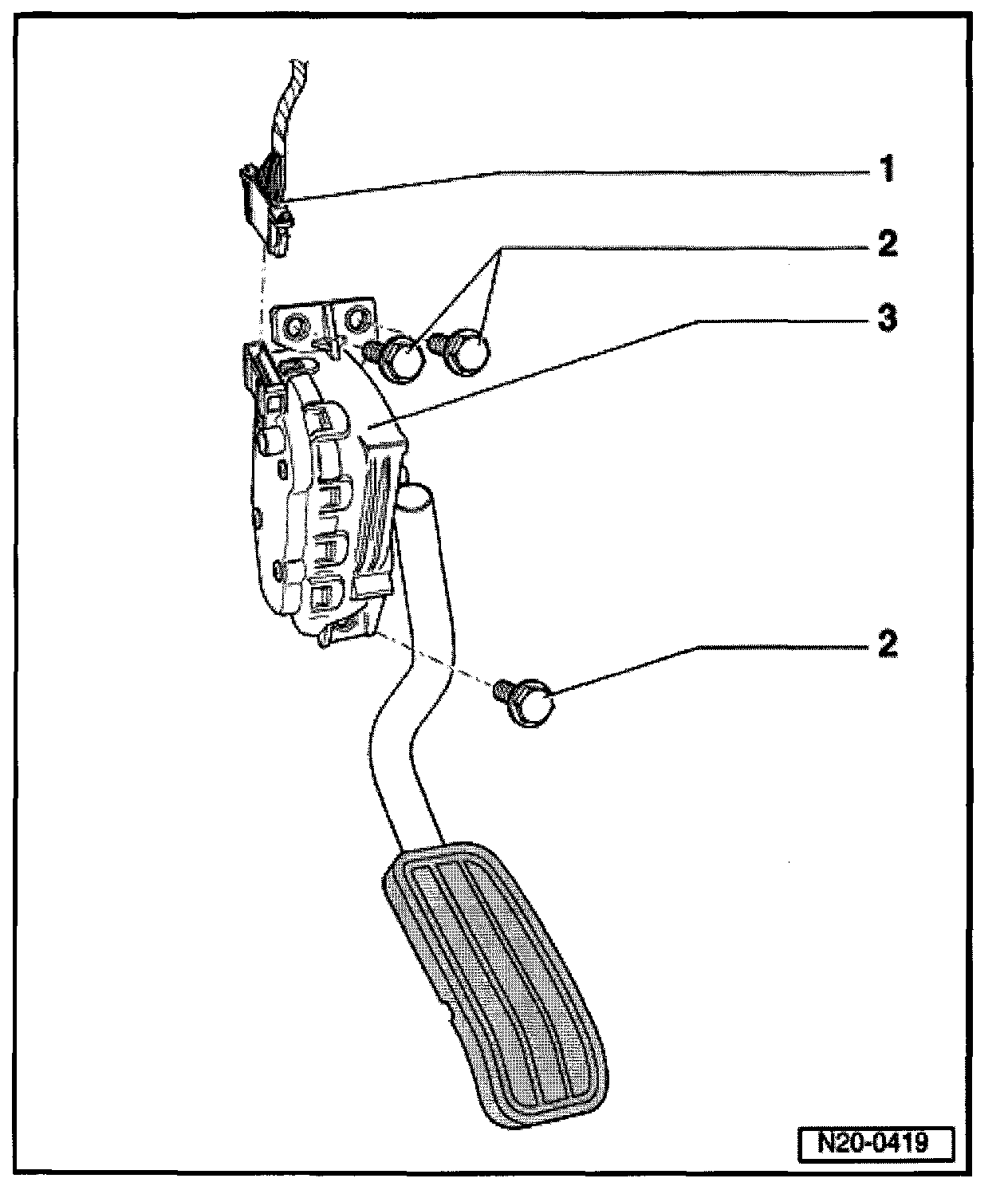

E-gas Components, Servicing






1 - Connector
- Black, 6-pin
2 - 10 Nm
3 - Throttle Position (TP) sensor -G79- and sender -2- for accelerator pedal position -G185-
- Not adjustable.
- Throttle Position (TP) sensor communicates the driver's intentions to the Engine Control Module (ECM)
