Display Groups 10-29 (Ignition)

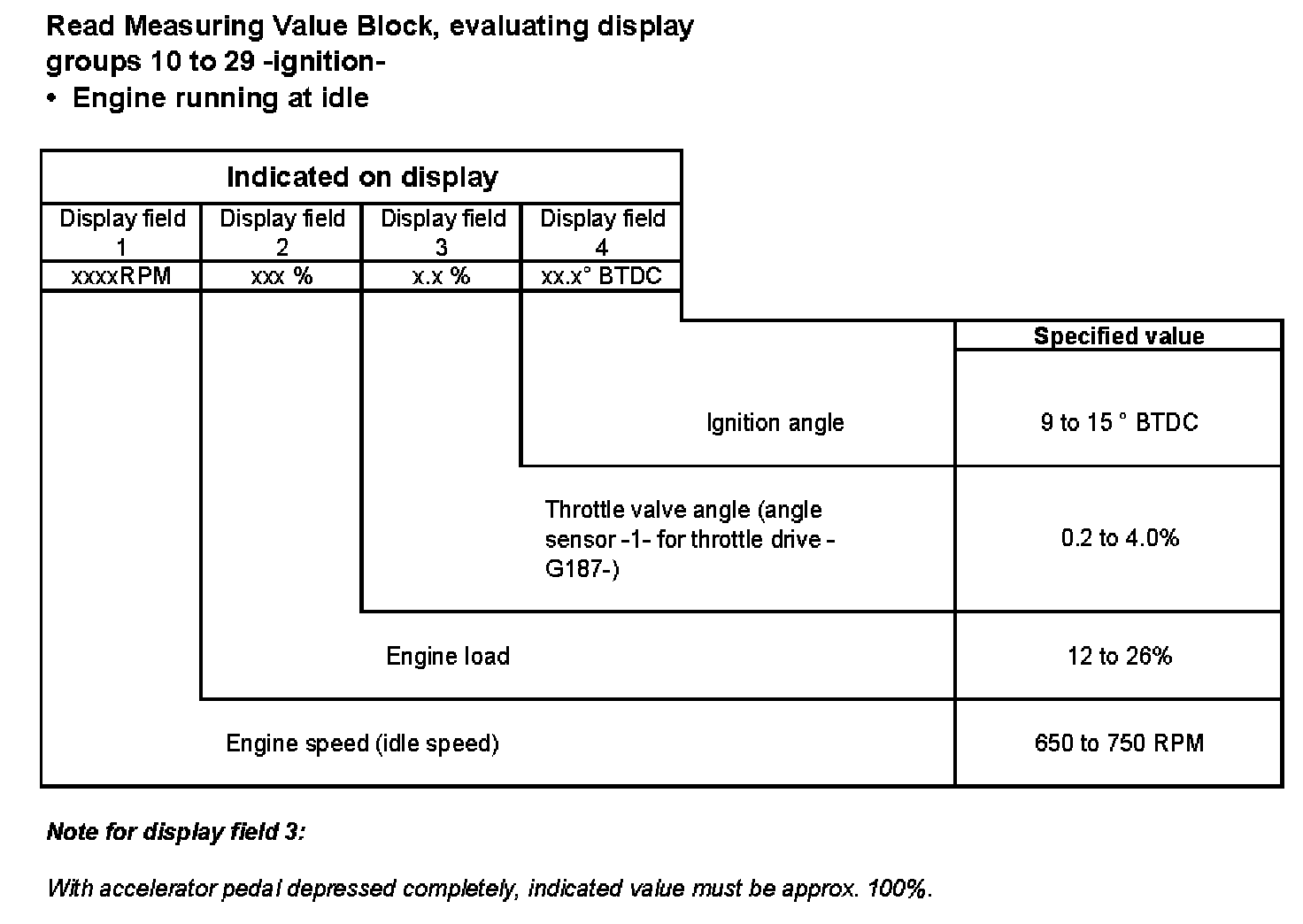

Display group 10 -ignition
Read Measuring Value Block 10:

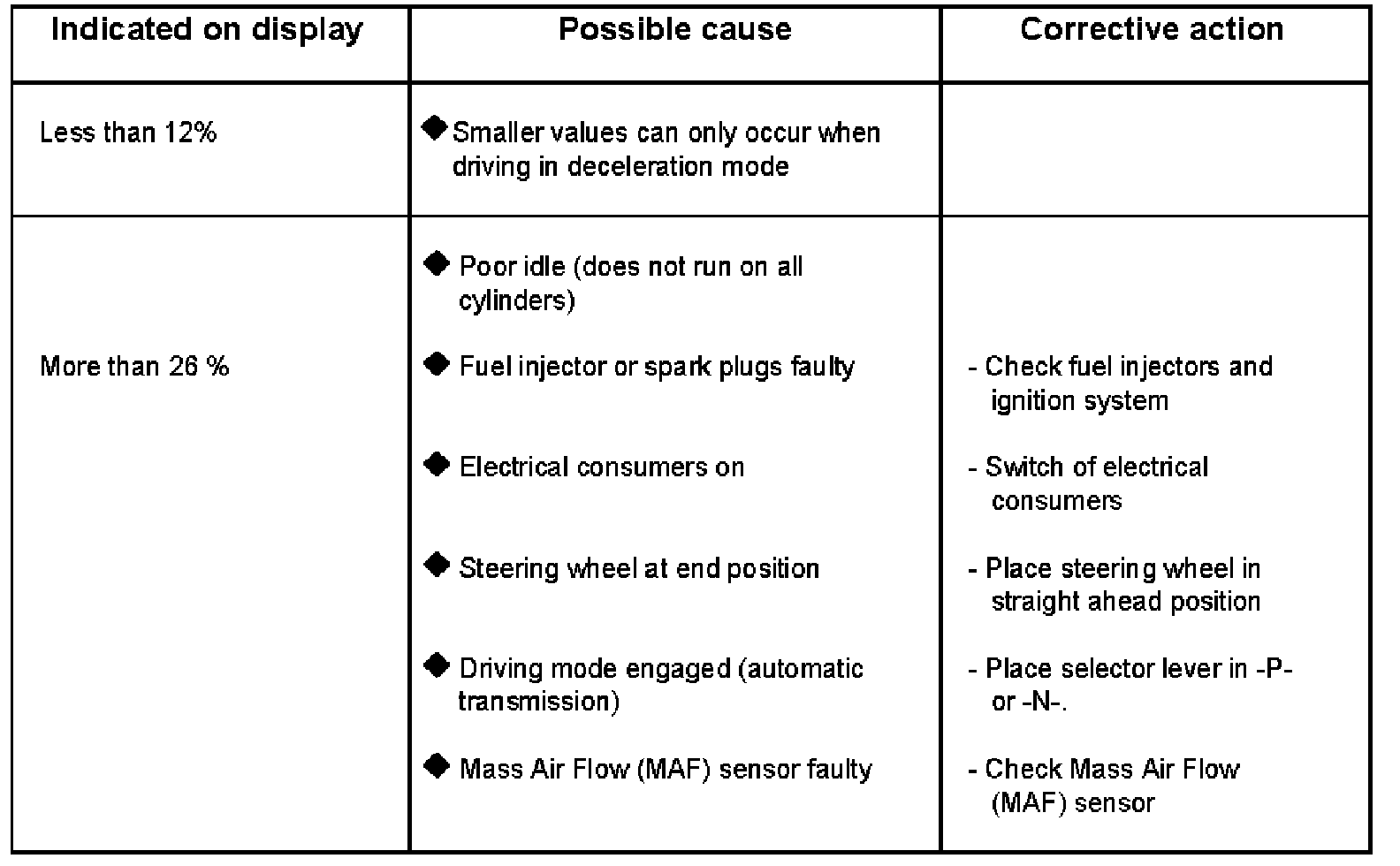

Evaluation display group 10, display field 2 - engine load

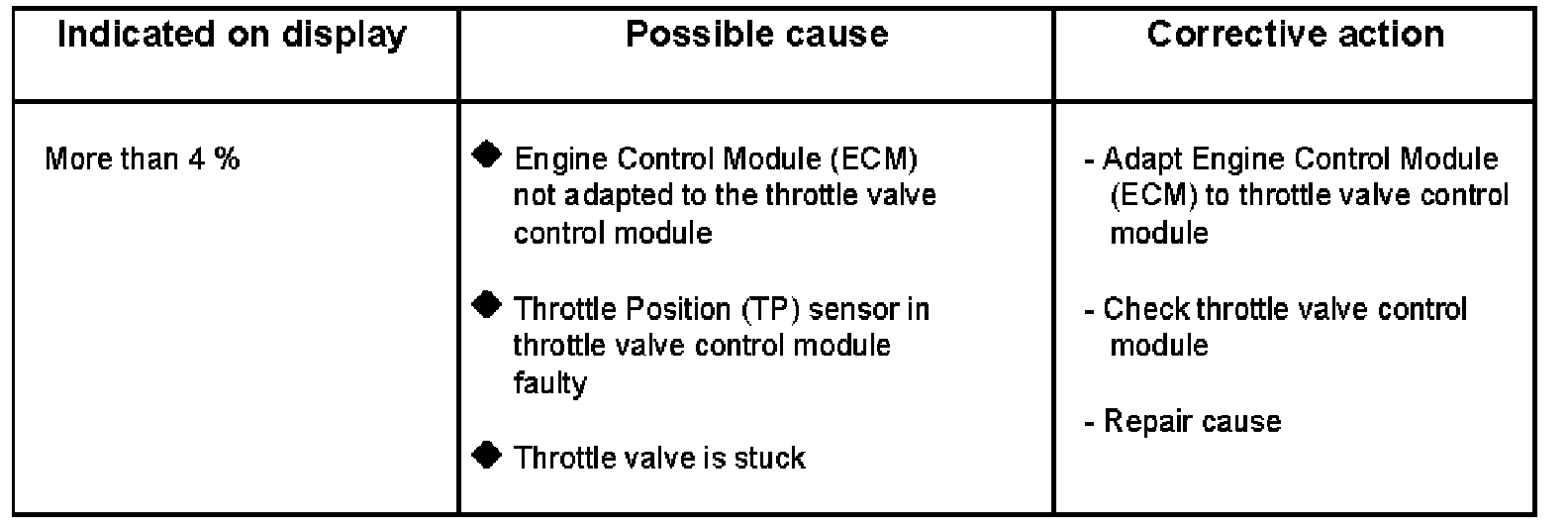

Evaluation display group 10, display field 3 - throttle valve angle

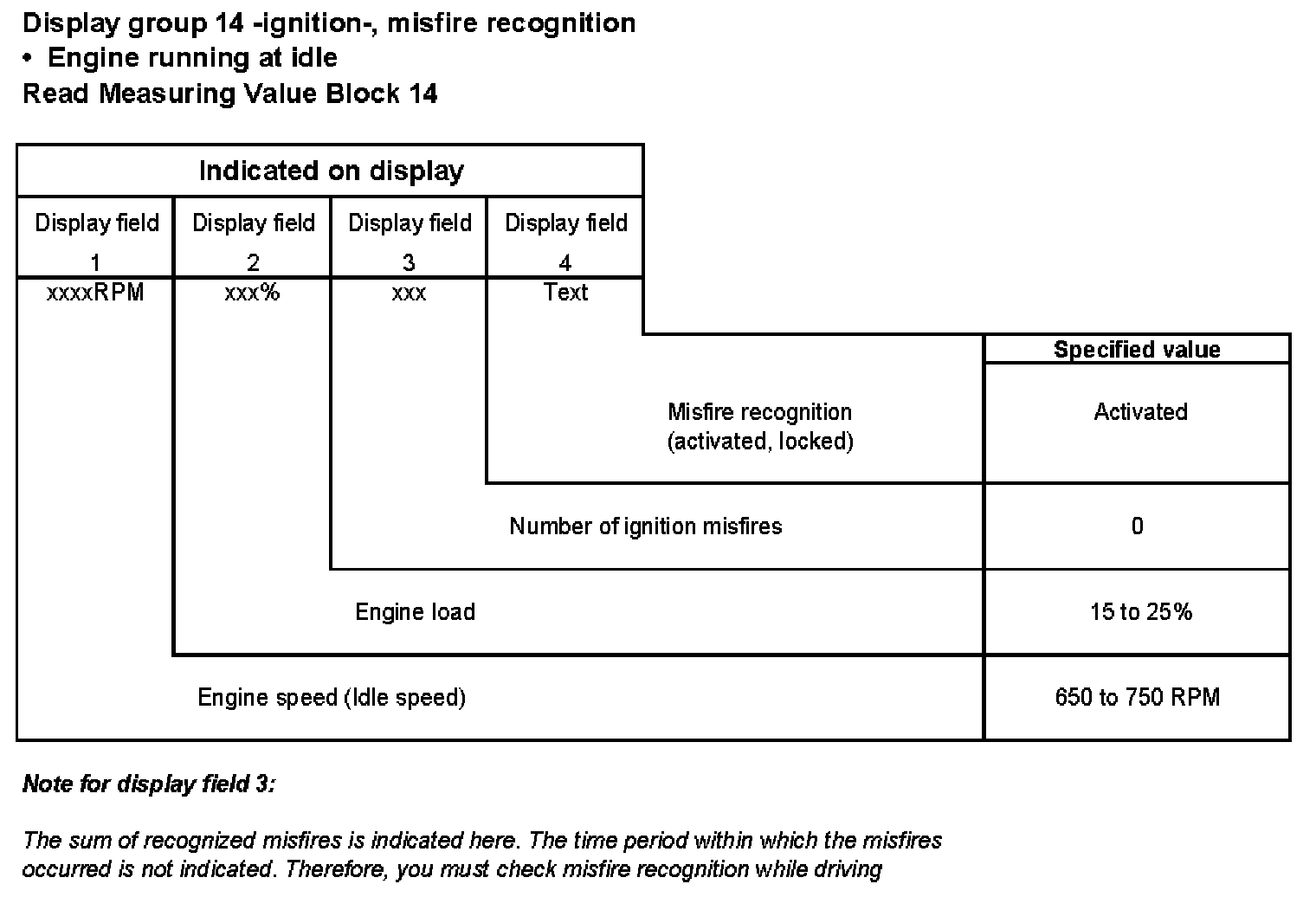

Display group 14 -ignition-, misfire recognition
Read Measuring Value Block 14:
Evaluation display group 14, display field 3 - number of ignition misfires

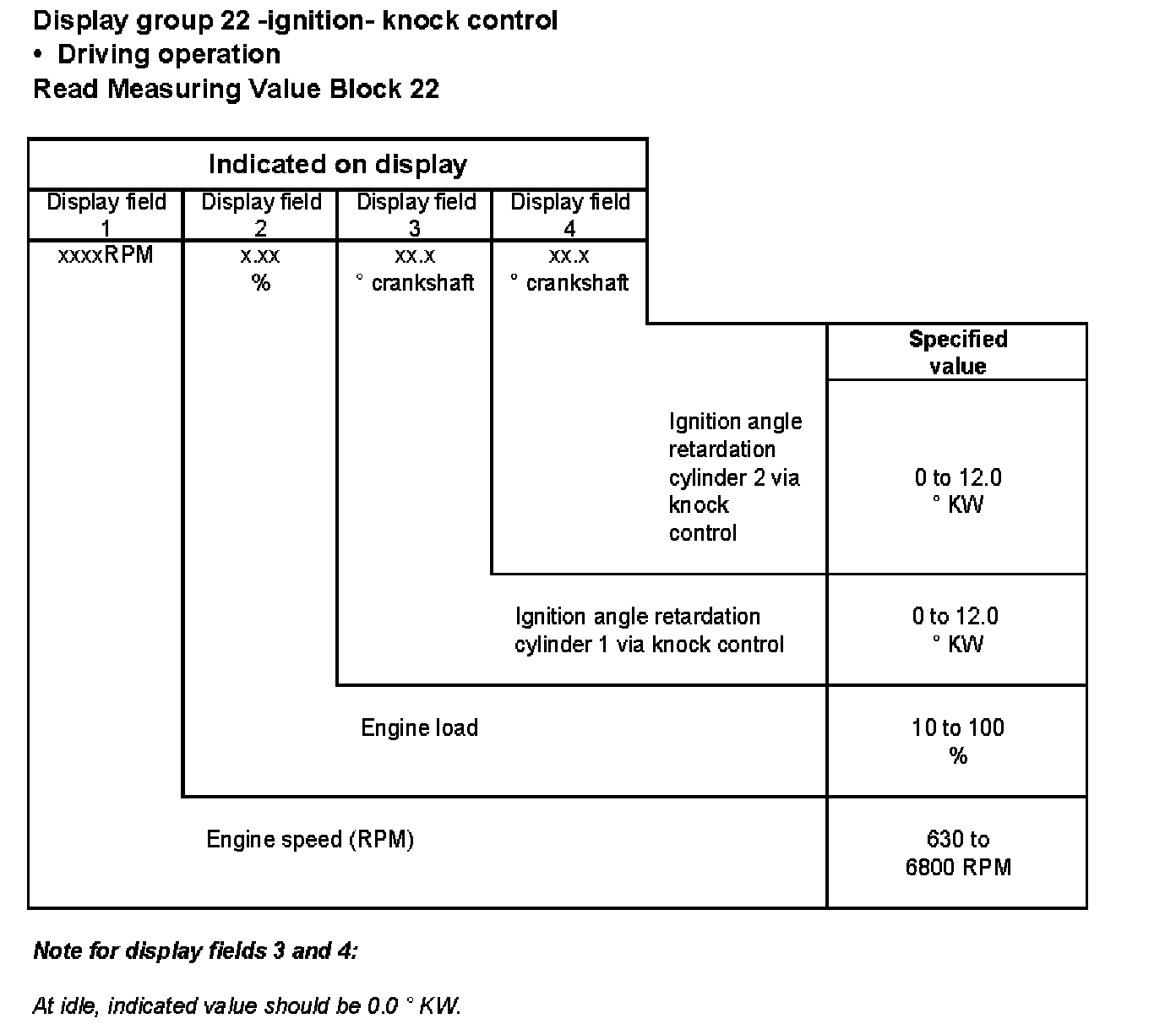

Display group 22 -ignition- knock control
Read Measuring Value Block 22:
Display group 23 -ignition- knock control
Read Measuring Value Block 23:

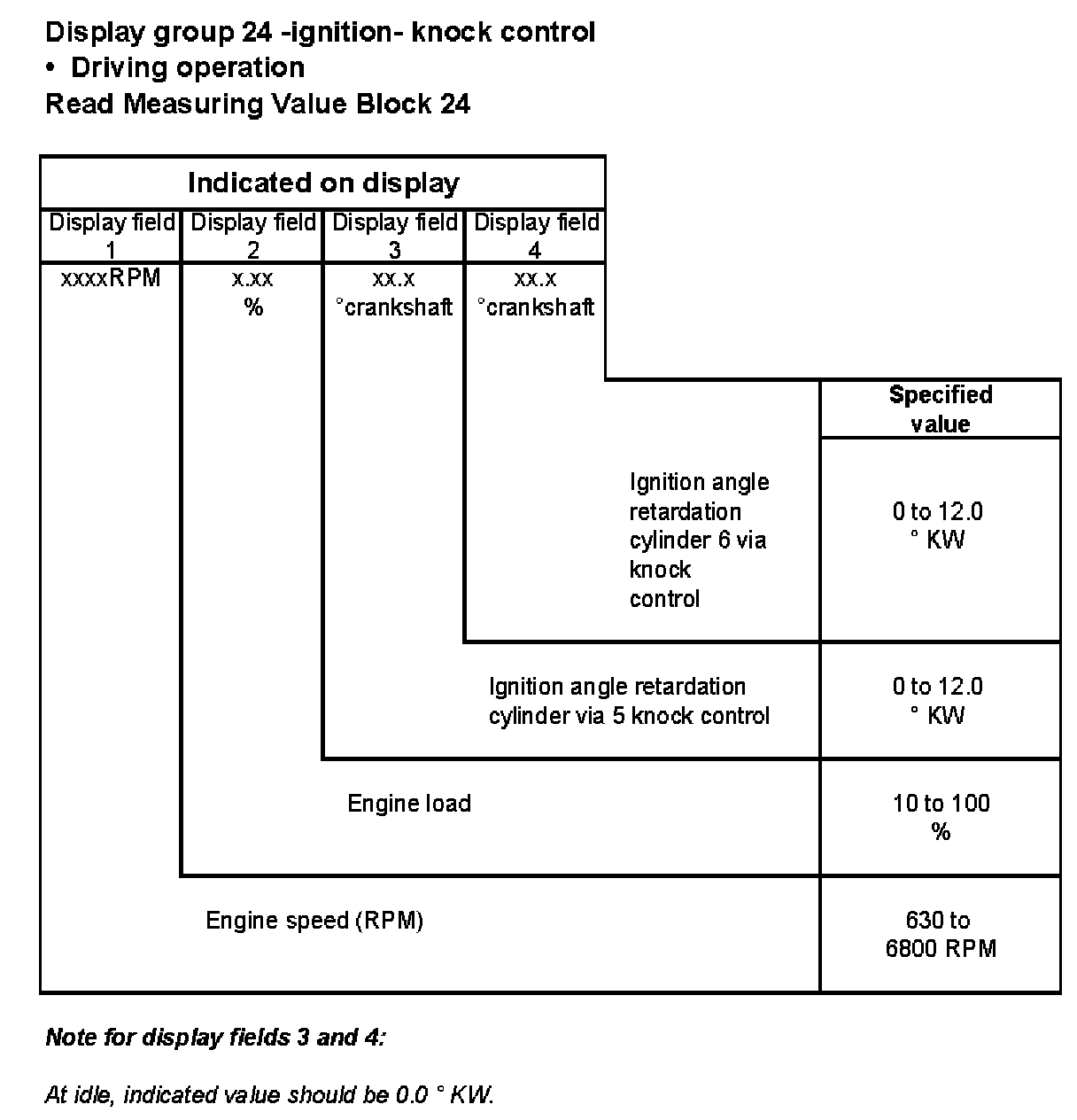

Display group 24 -ignition- knock control
Read Measuring Value Block 24:
Evaluation, display groups 22 to 24, display fields 3 and 4 - ignition angle retardation

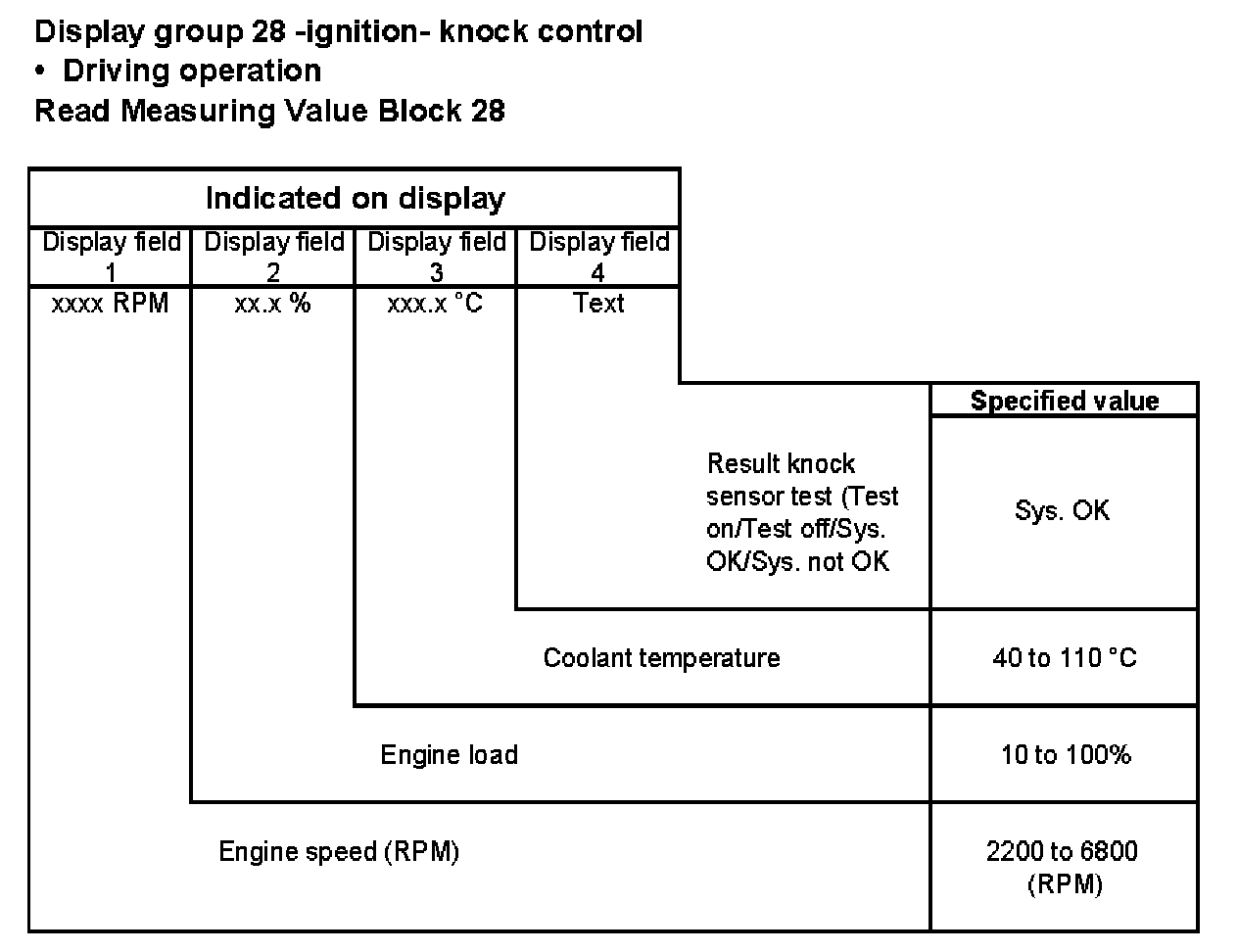

Display group 28 -ignition- knock control
Read Measuring Value Block 28:
