Display Groups 30-49, 99, 107 (Oxygen Sensor Control)

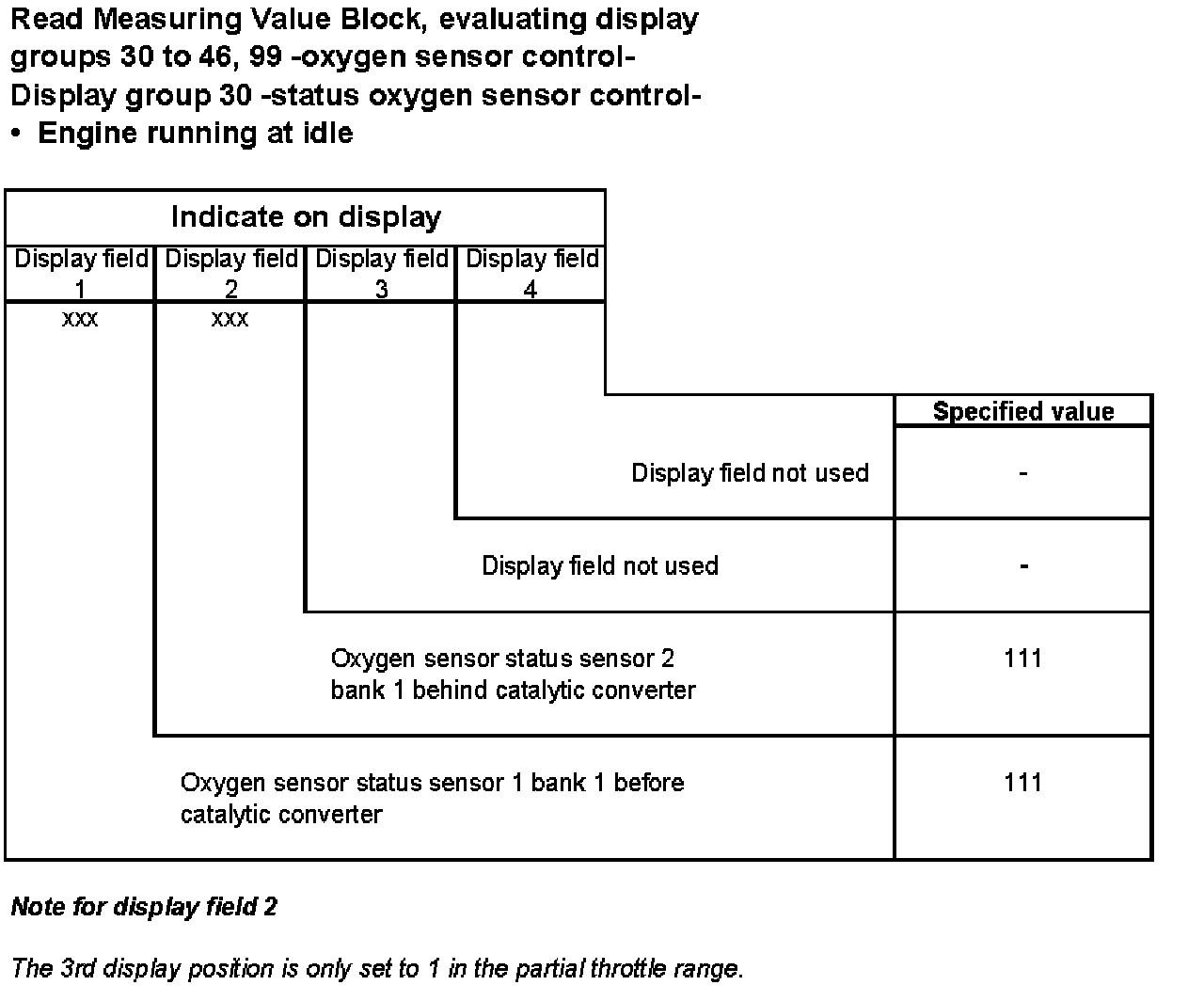

Display group 30 -status oxygen sensor control
Reading Measuring Value Block 30:

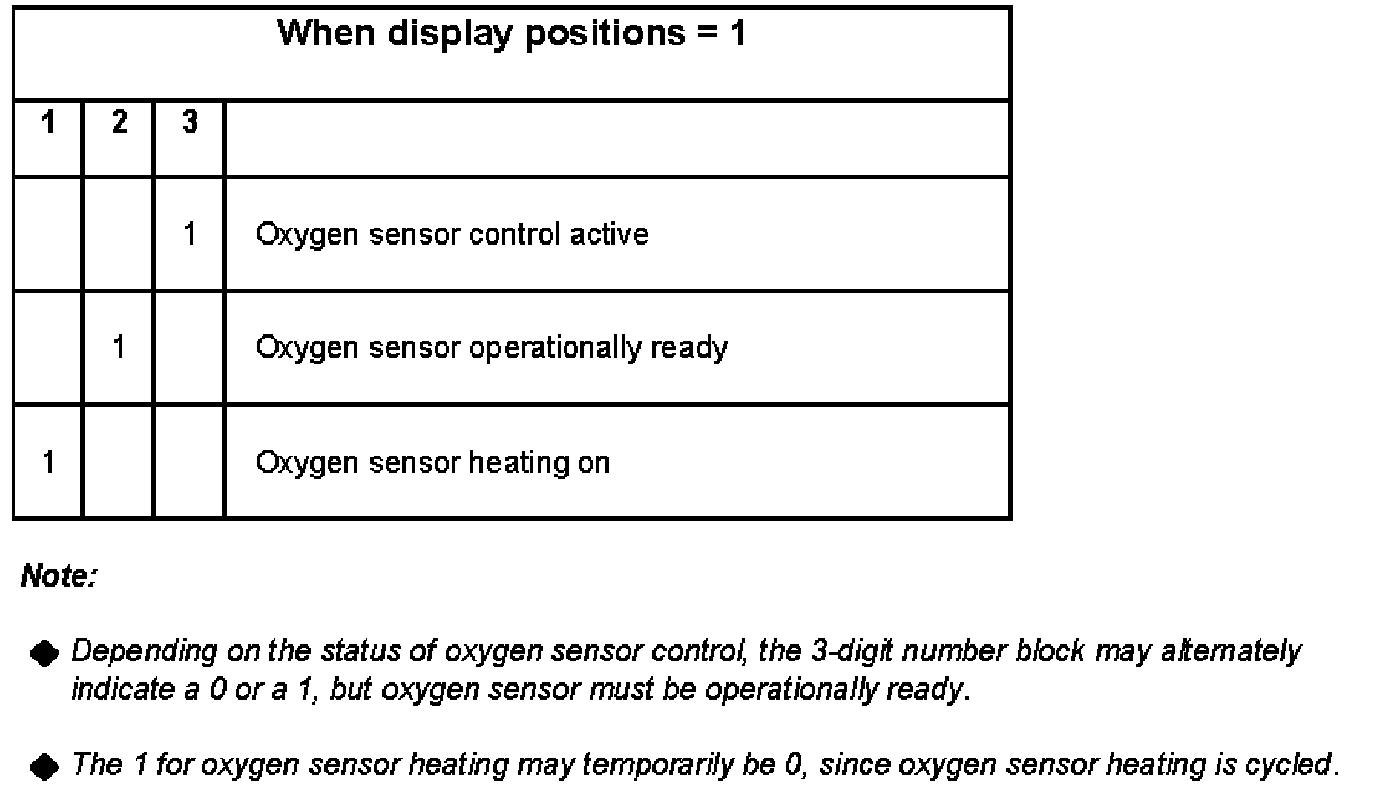

Explanation of 3-digit value in display field 1.
Display group 32 -oxygen sensor control- oxygen sensor adaptation values
Reading Measuring Value Block 32:

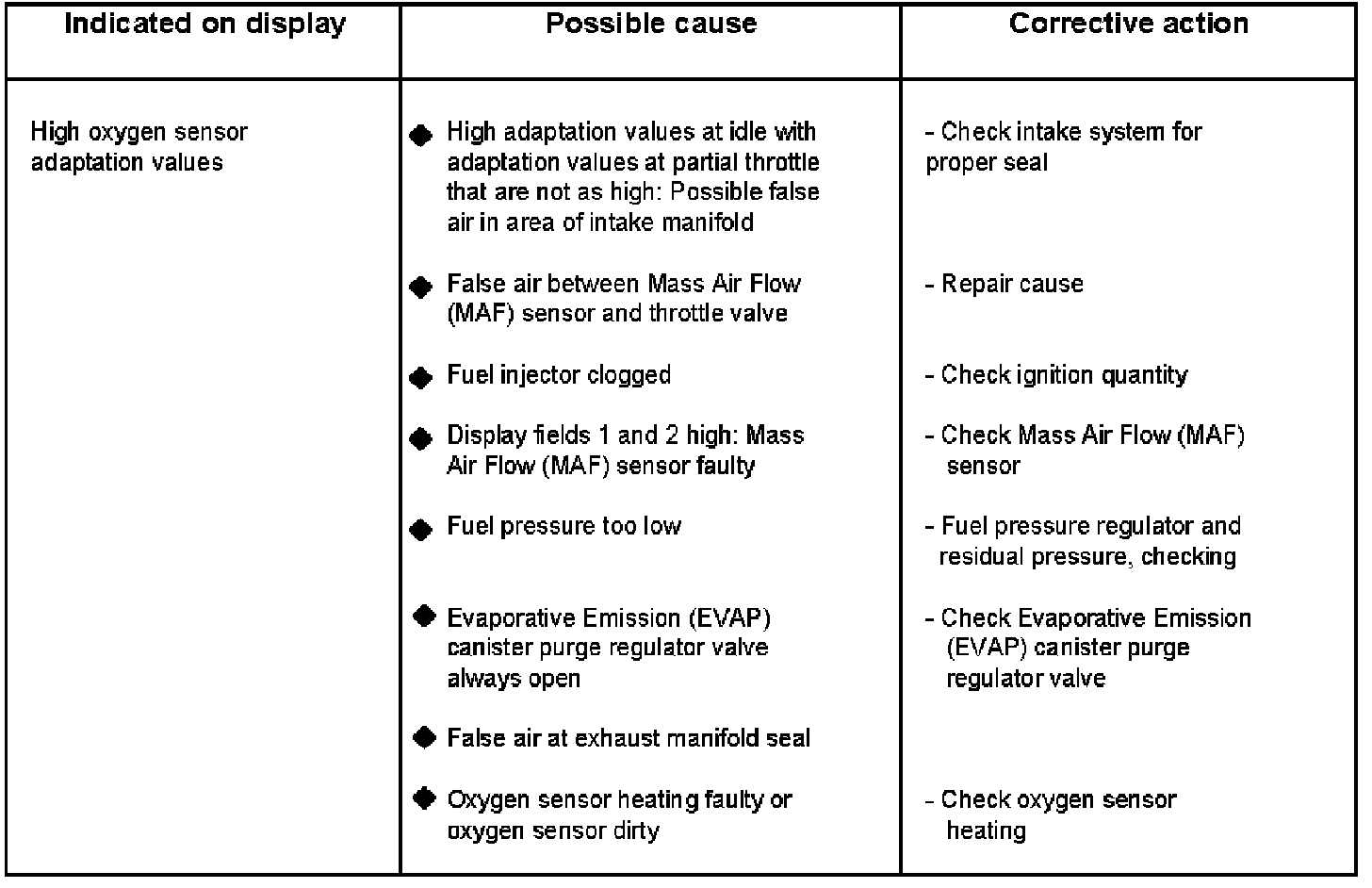

Evaluation, display group 32, display field 1 and 2 - oxygen sensor adaptation values

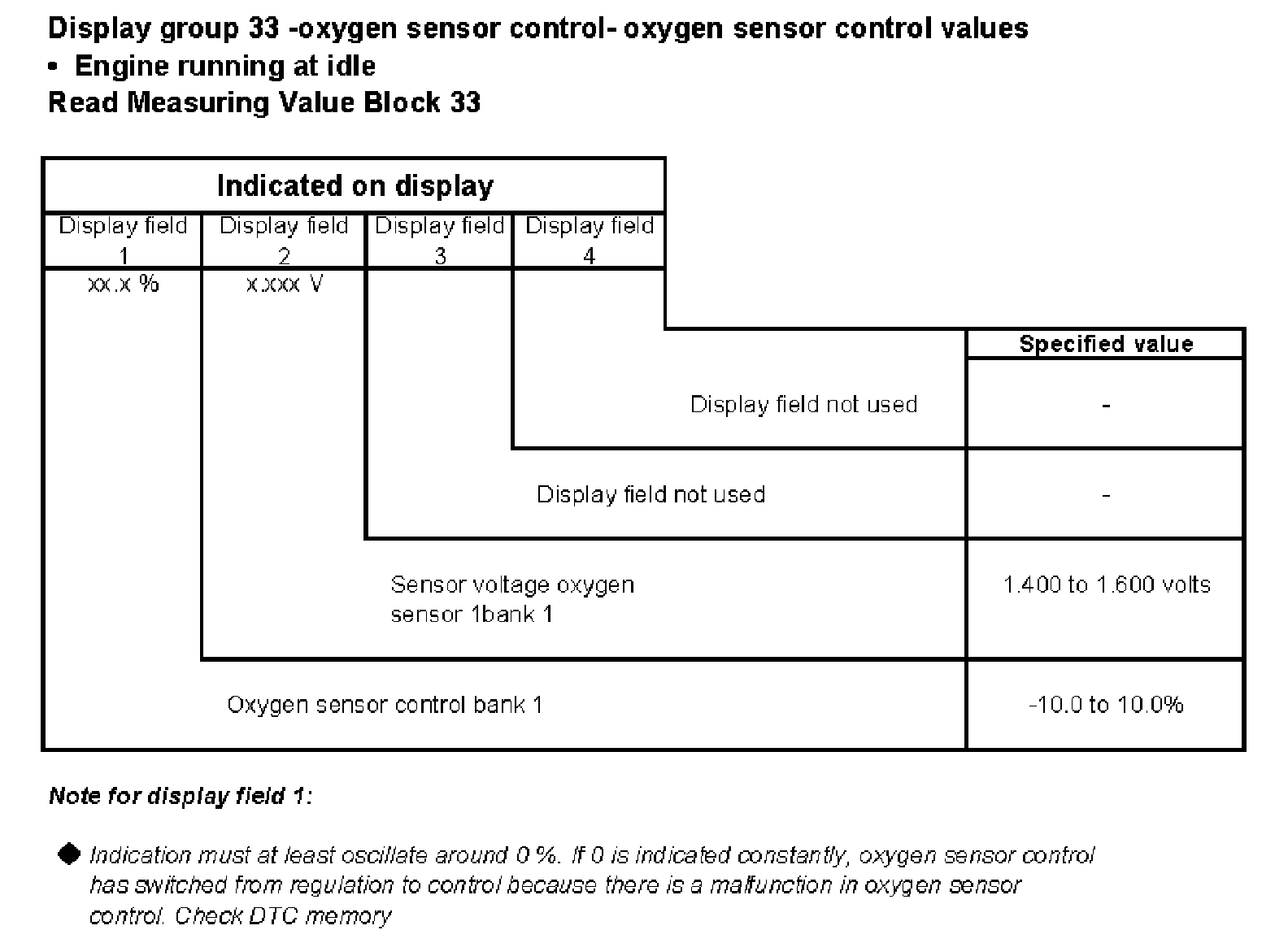

Display group 33 -oxygen sensor control- oxygen sensor control values
Read Measuring Value Block 33:

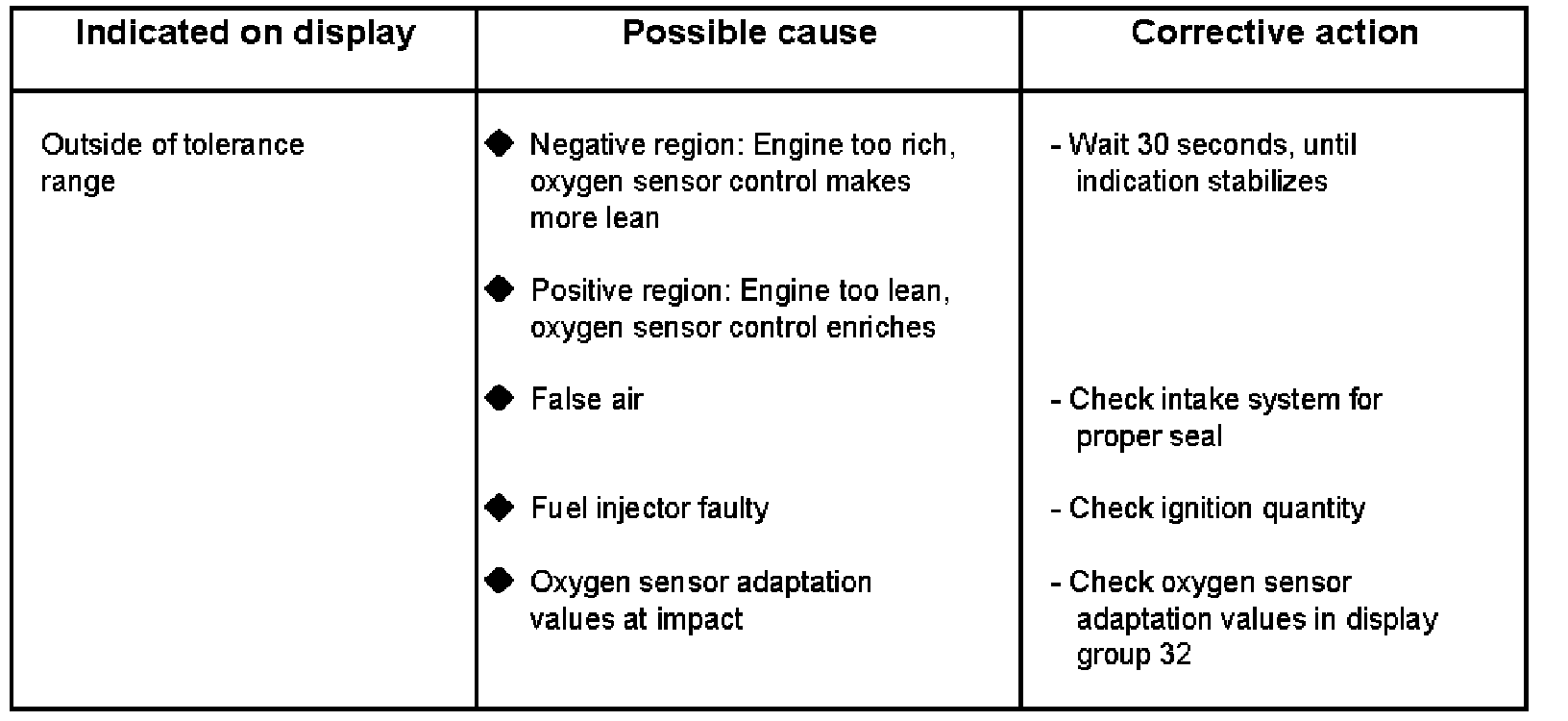

Evaluation, display group 33, display field 1 - oxygen sensor control, bank 1

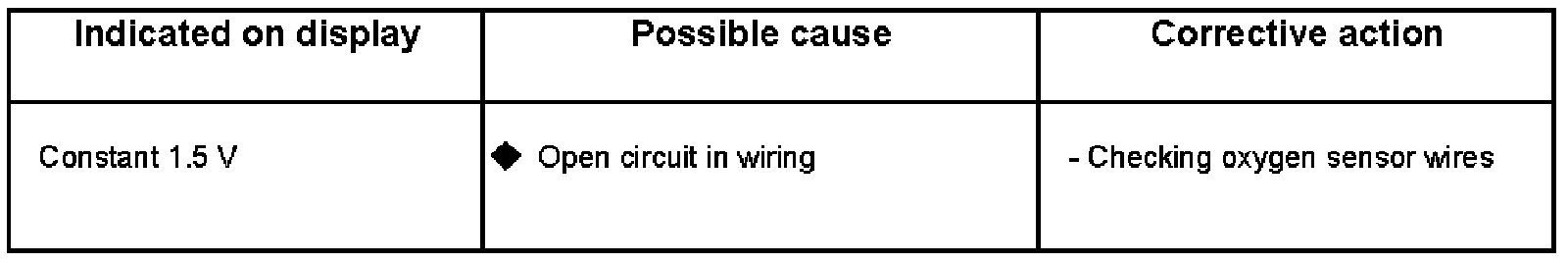

Evaluation, display group 33, display field 2 - oxygen sensor voltage, bank 1

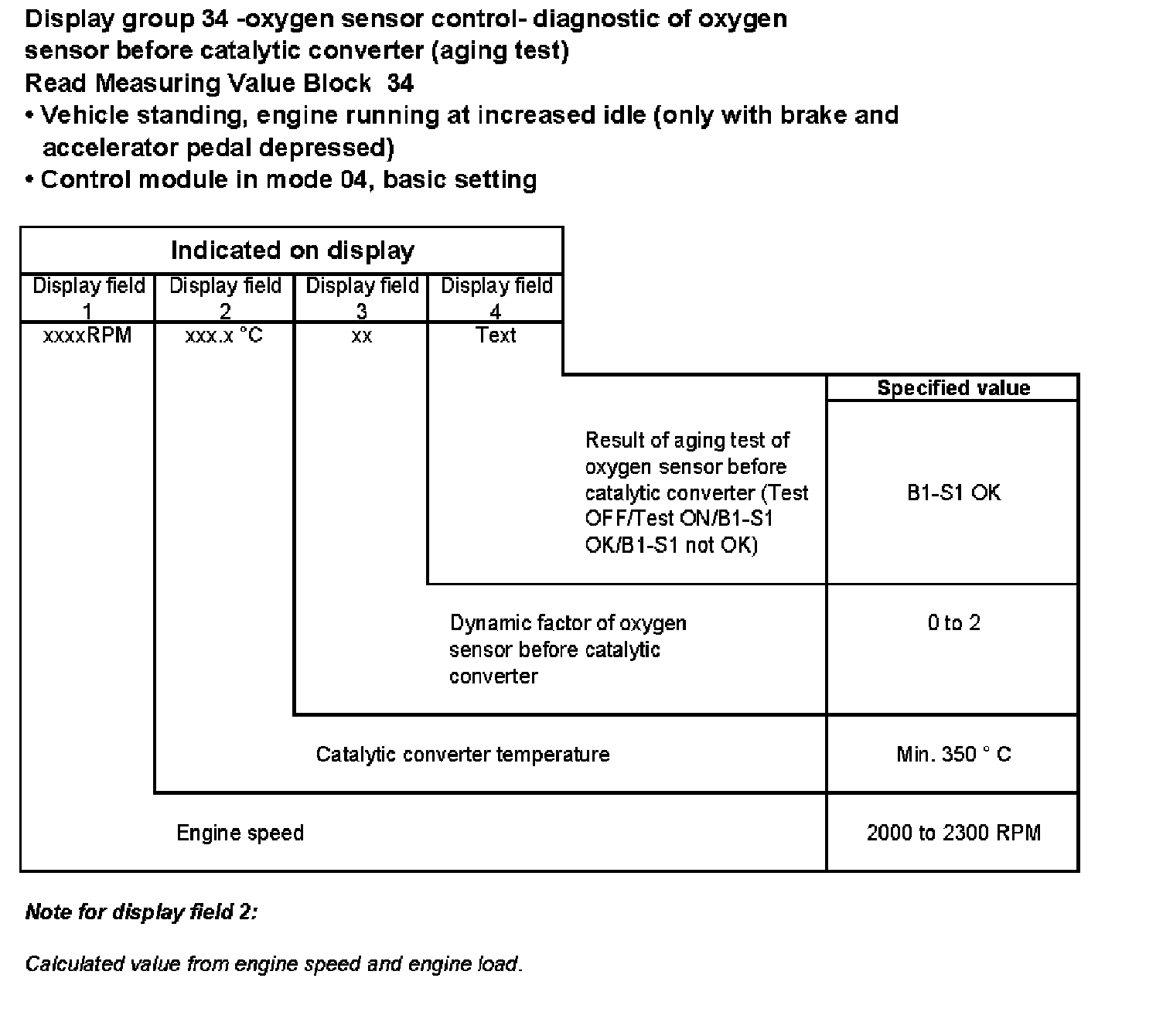

Display group 34 -oxygen sensor control- diagnostic of oxygen sensor before catalytic converter (aging test)
Reading Measuring Value Block 34:

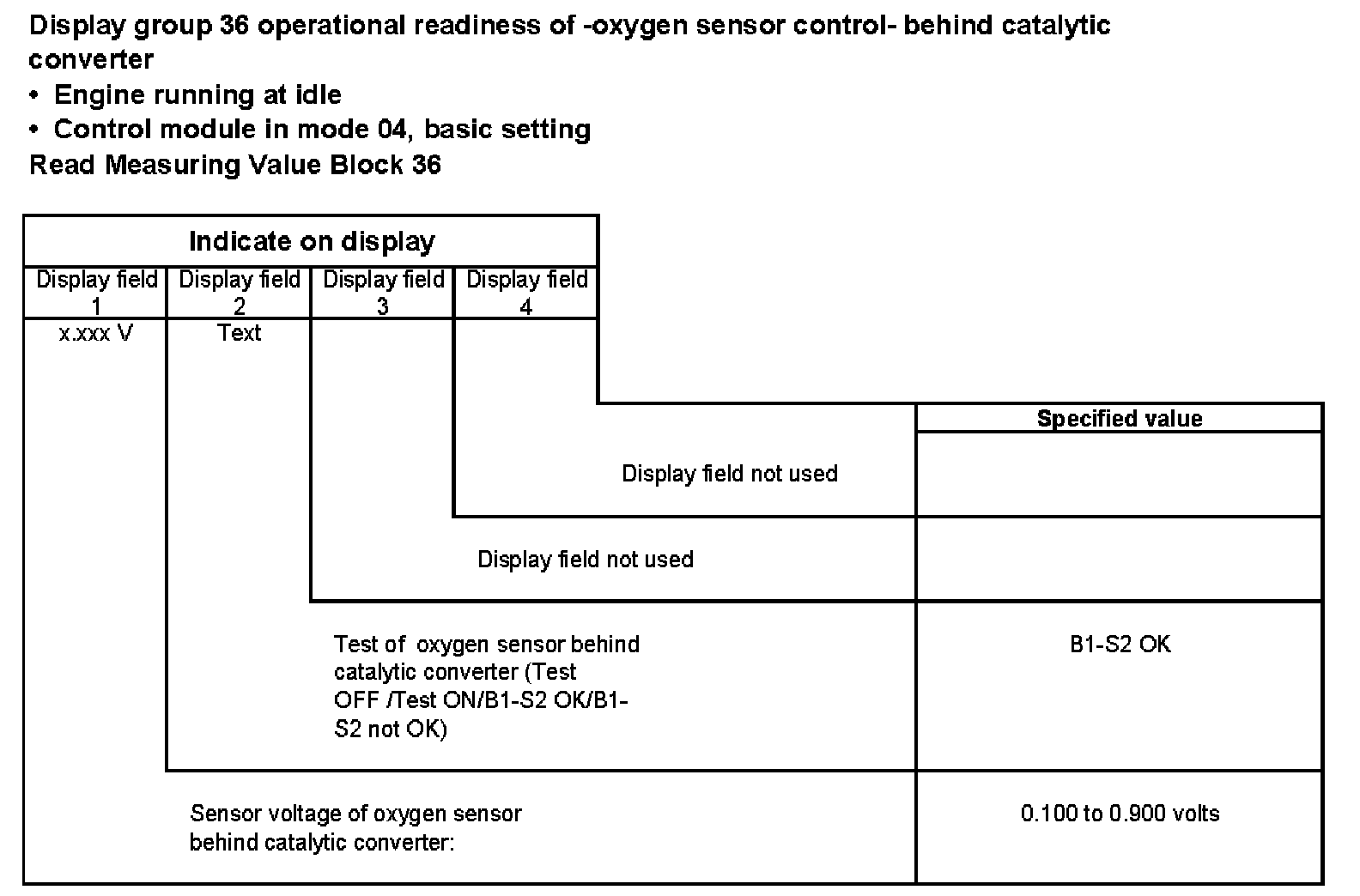

Display group 36 operational readiness of -oxygen sensor control- behind catalytic converter
Reading Measuring Value Block 36:

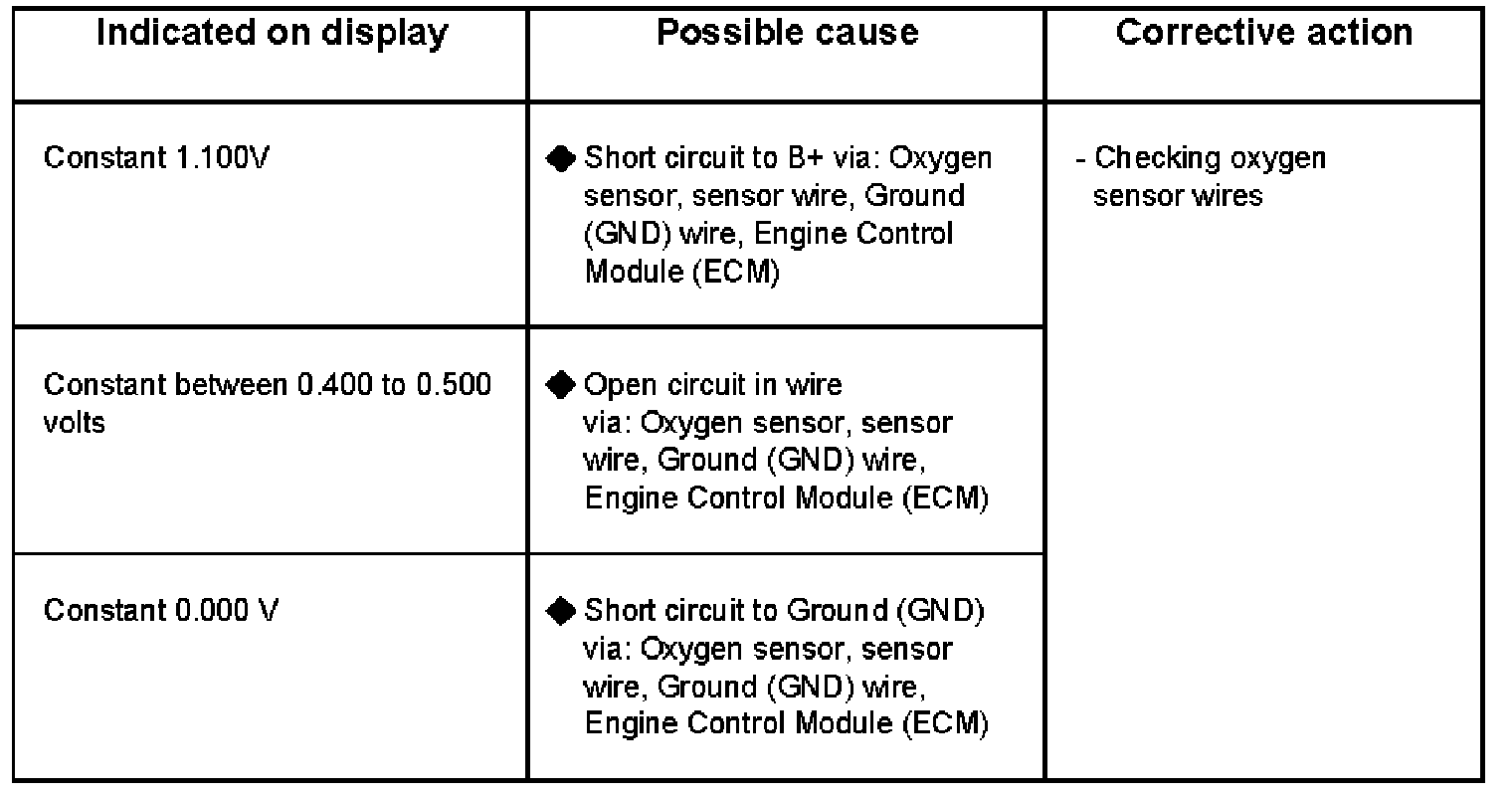

Evaluation, display group 36, display fields 1 - oxygen sensor voltage, oxygen sensor behind catalytic converter

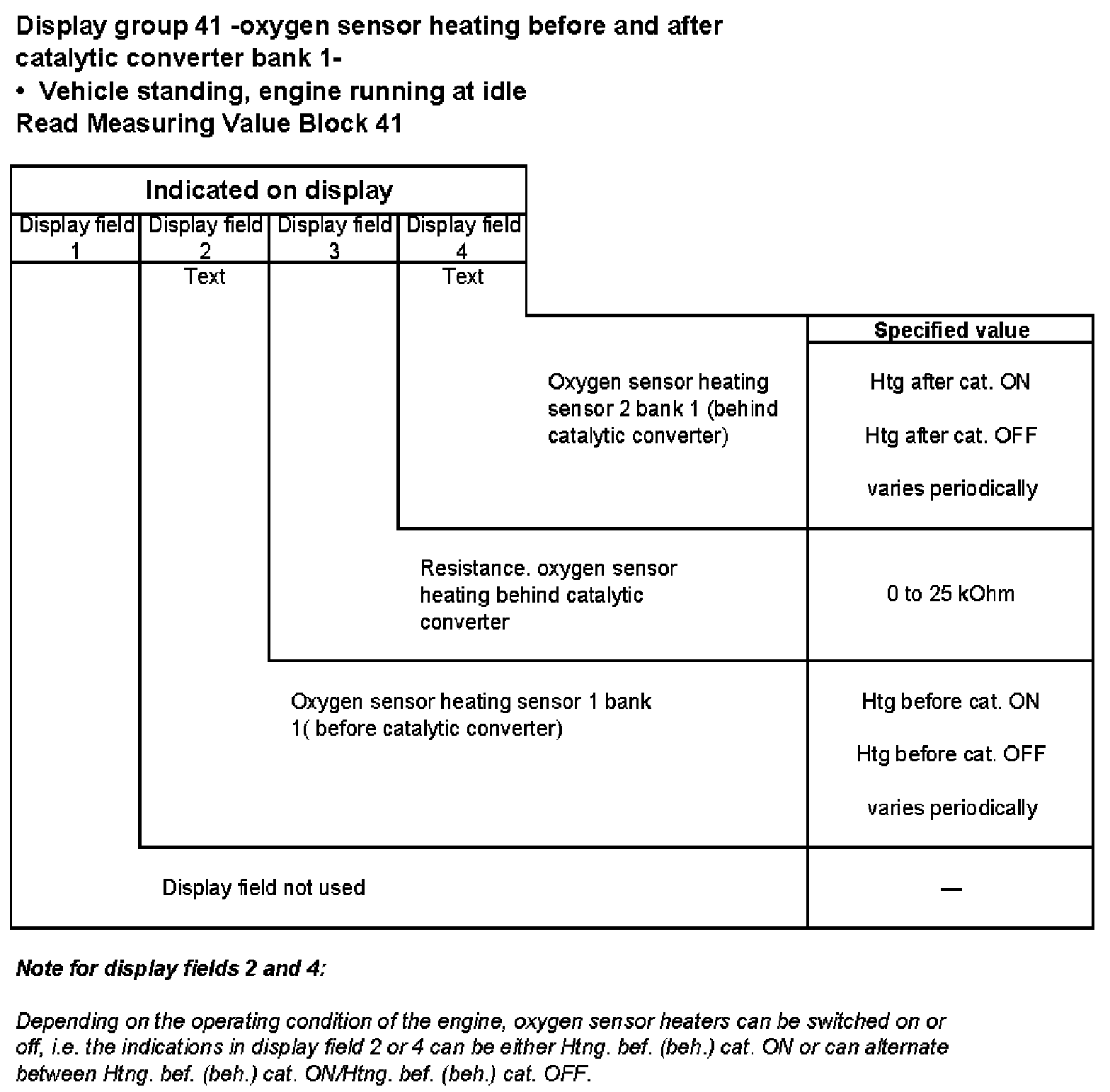

Display group 41 -oxygen sensor heating before and after catalytic converter bank 1
Reading Measuring Value Block 41:

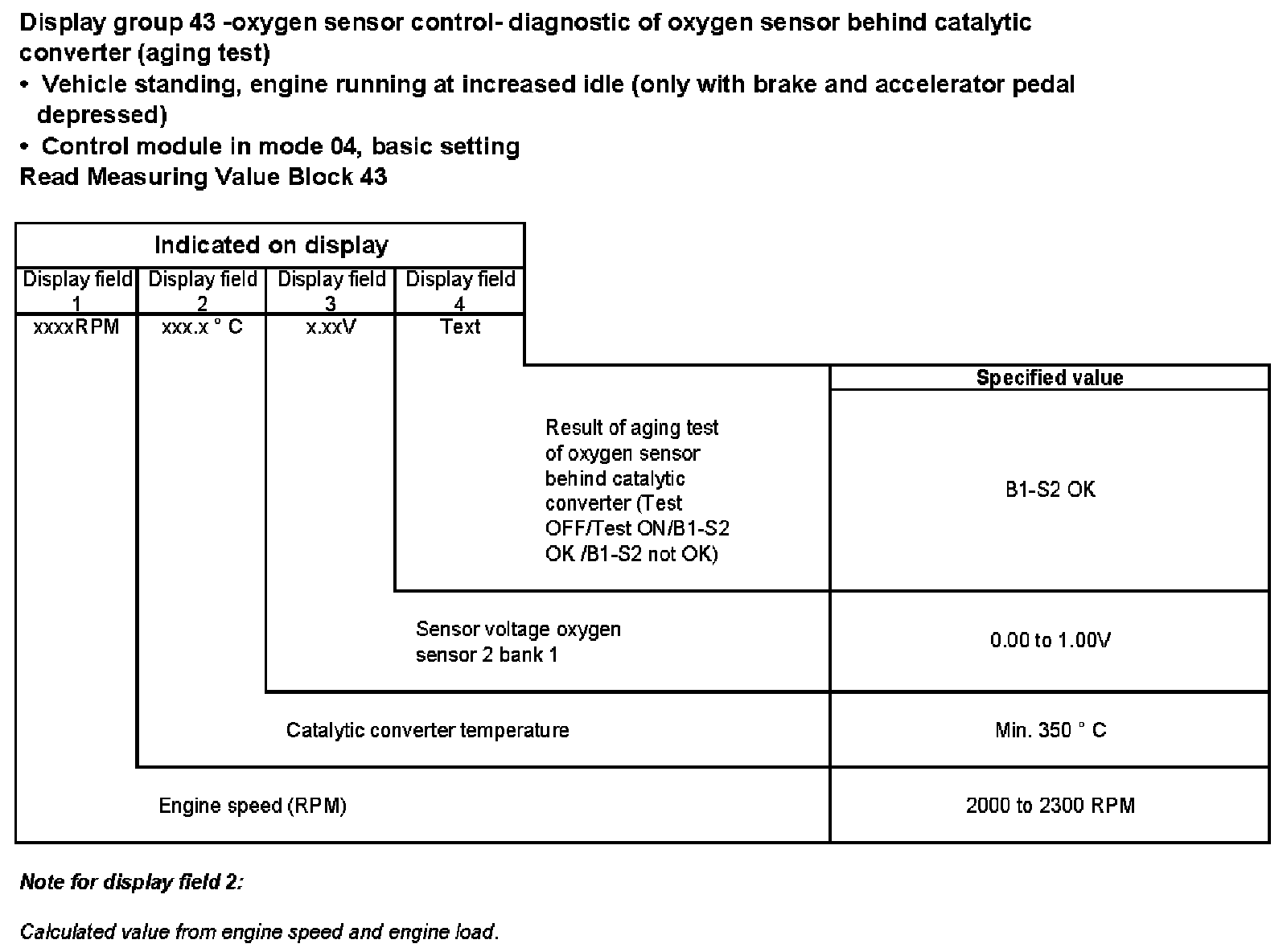

Display group 43 -oxygen sensor control- diagnostic of oxygen sensor behind catalytic converter(aging test)
Reading Measuring Value Block 43:

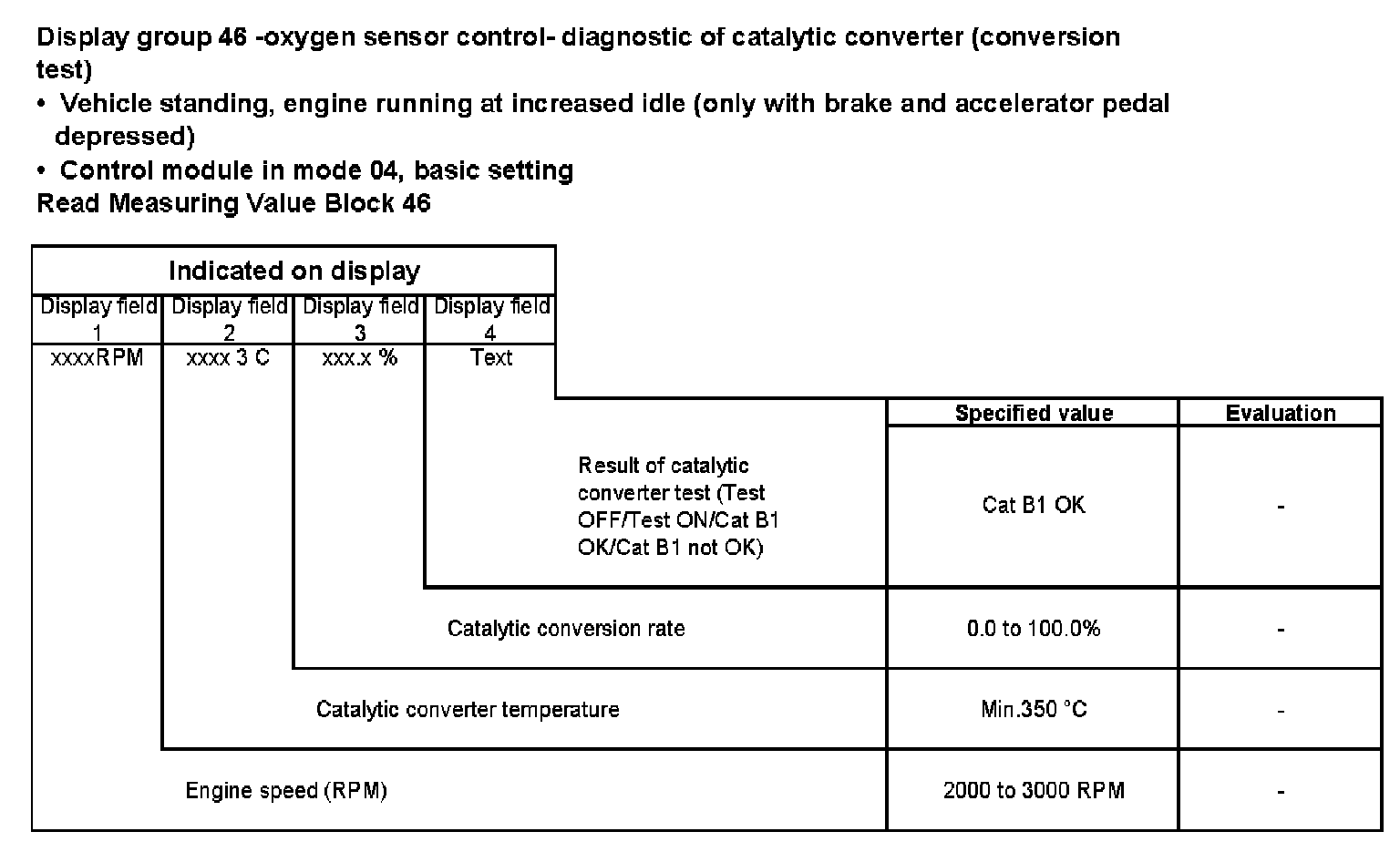

Display group 46 -oxygen sensor control- diagnostic of catalytic converter(conversion test)
Reading Measuring Value Block 46:

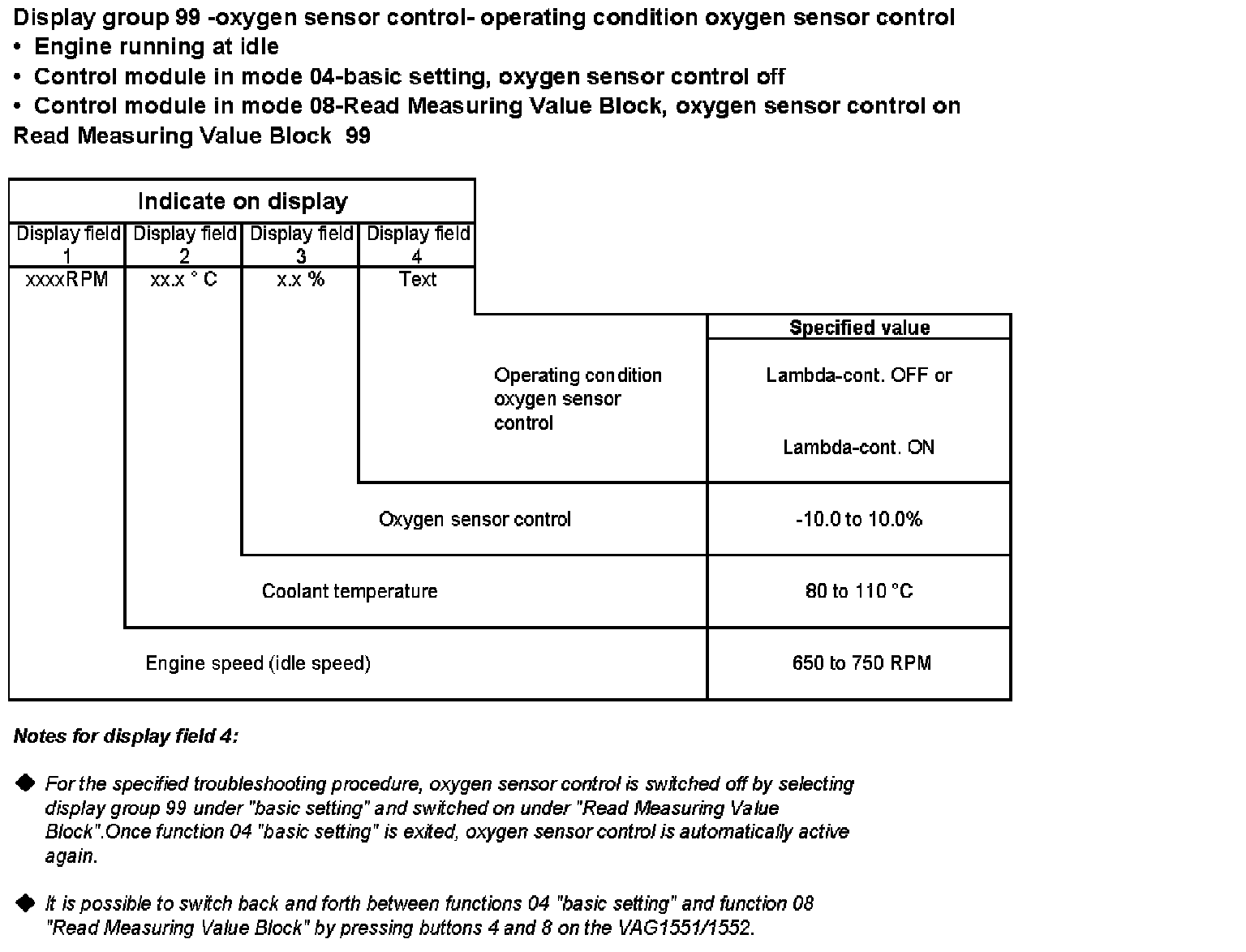

Display group 99 -oxygen sensor control- operating condition oxygen sensor control
Reading Measuring Value Block 99:
