Control Module -217- Multi-Pin Connector (68 Pin) Assignment
Control Module -217- Multi-Pin Connector (68 Pin) Assignment

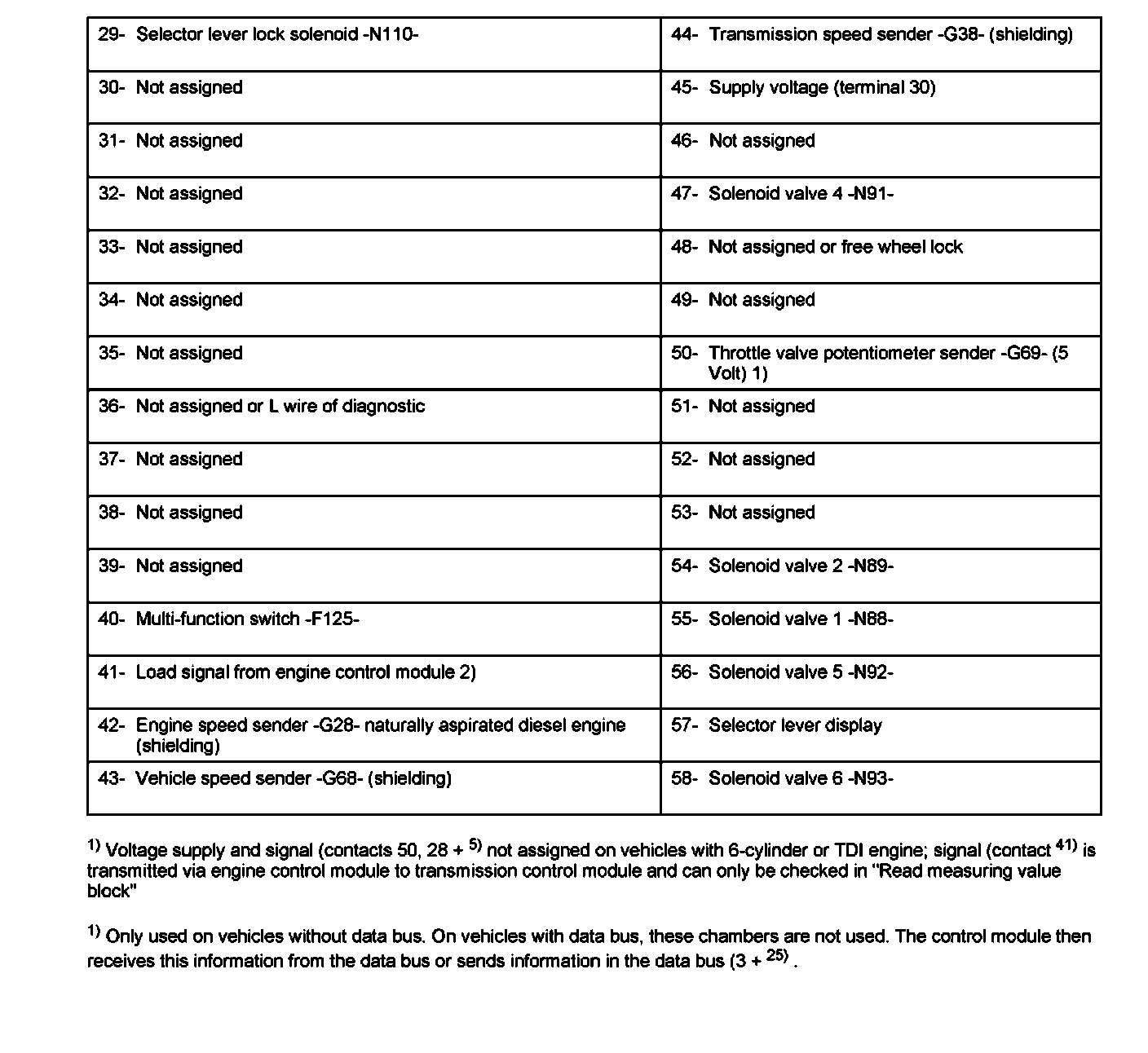

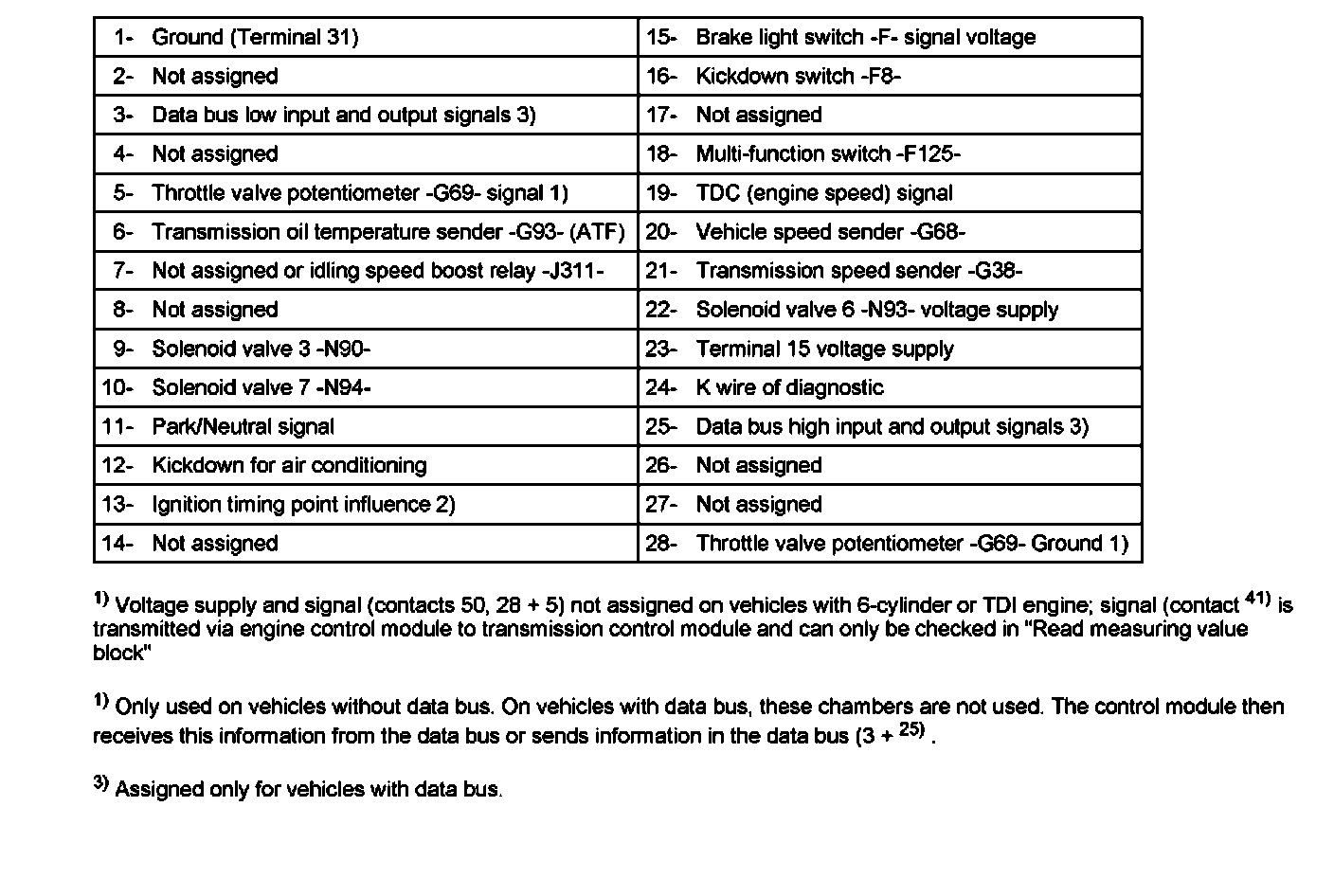

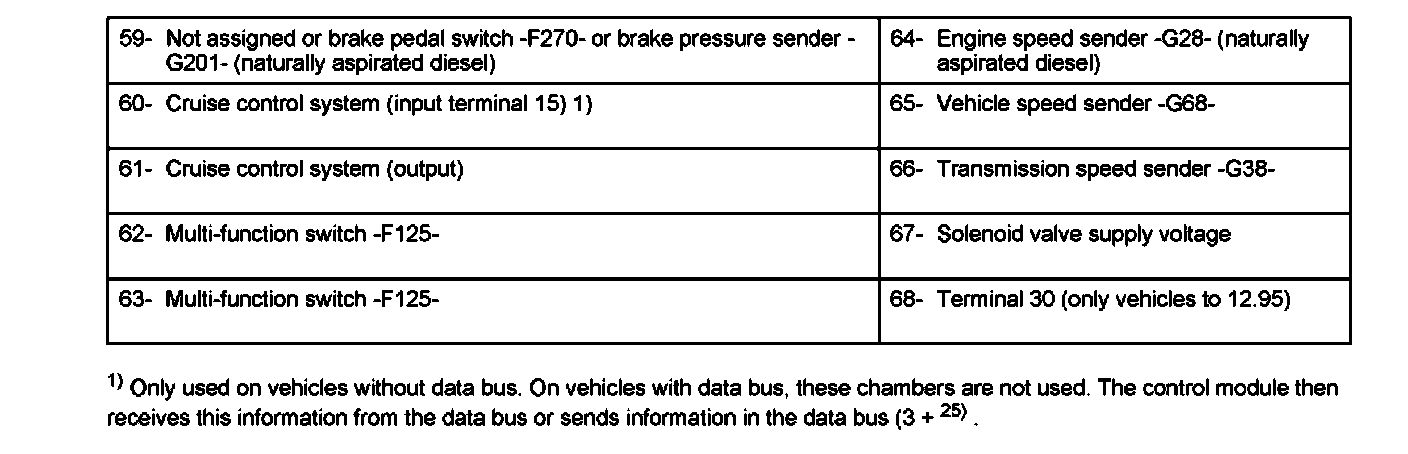

Control module -217- multi-pin connector (68 pin) assignment (sockets on V.A.G 1598/18)
