Reading

Read Measuring Value Block (function 08)

Additional information
^ Electrical Wiring Diagrams, Troubleshooting & Component Locations

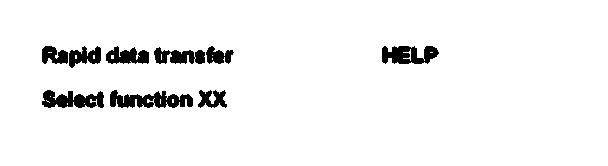

^ Connect scan tool V.A.G 1551 and enter address word "02 Transmission electronics" and advance until "Select function XX" indicated on display.
Scan Tool Connecting and Initial Checks

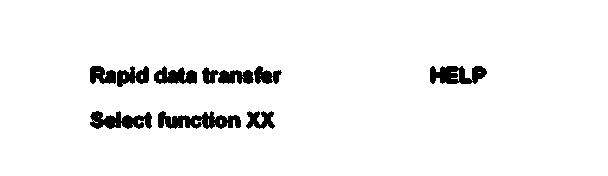

Indicated on display:

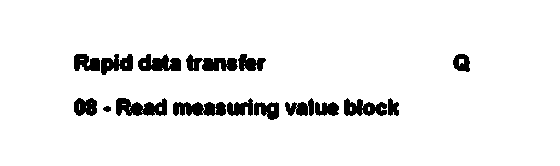

^ Press keys O and 8. (The function "Read measuring value block" is selected with 08.)

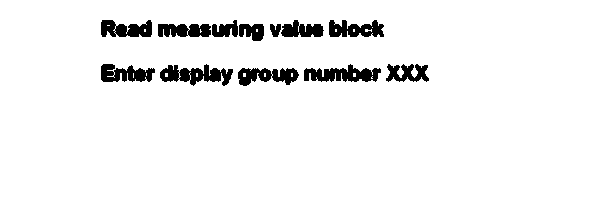

Indicated on display:
^ Confirm entry with key Q.

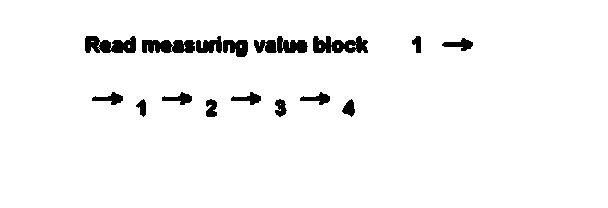

Indicated on display:
^ Enter display group number - List of selectable display group numbers.
^ Confirm entry with key Q.

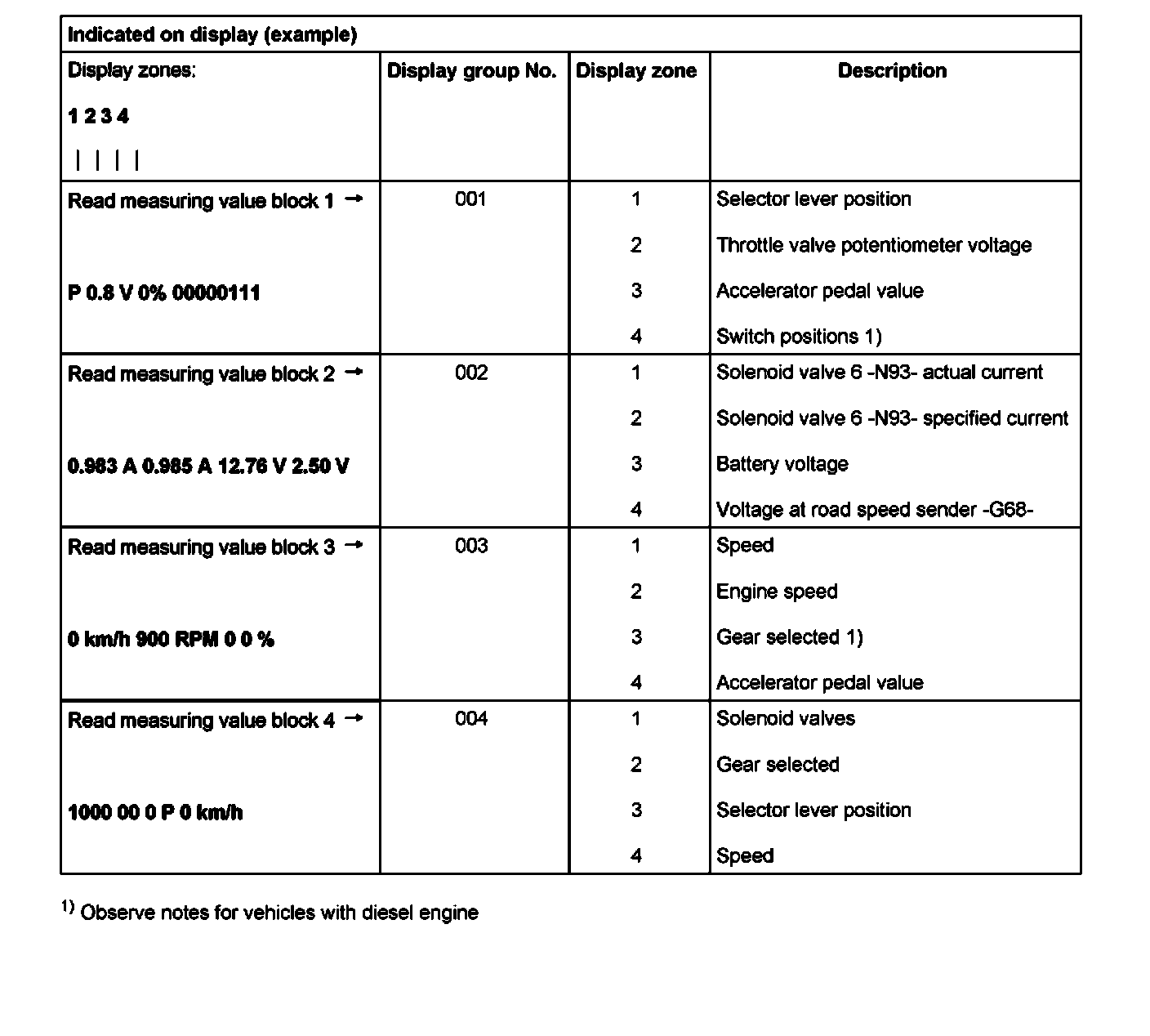

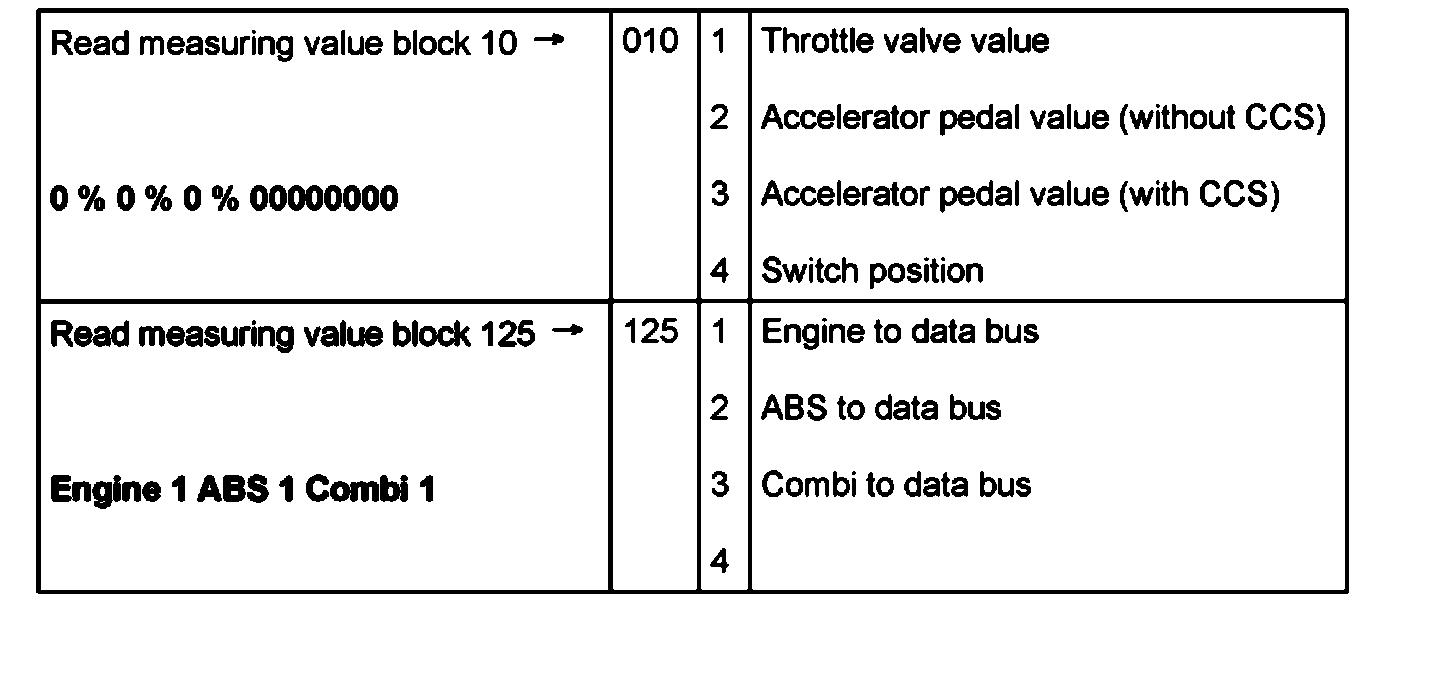

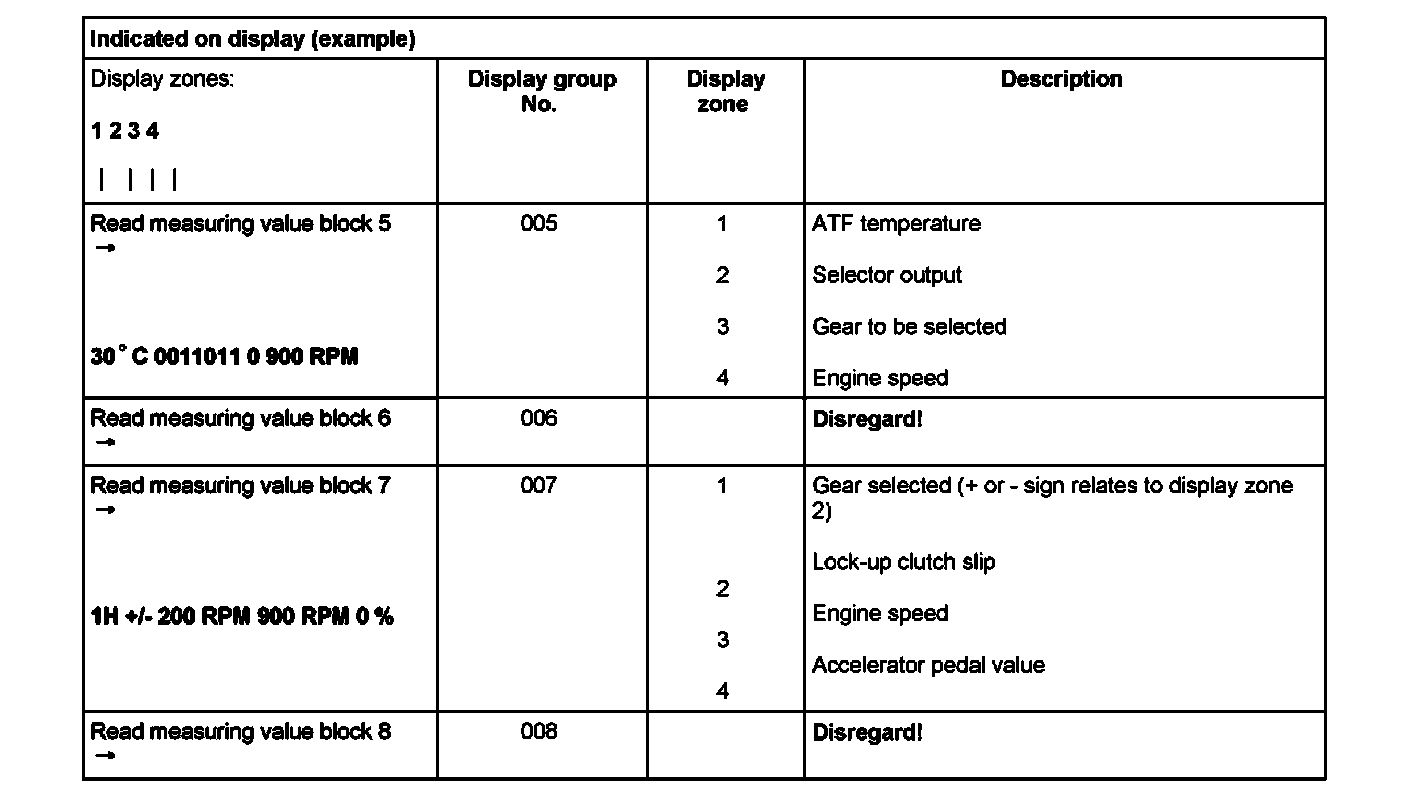

^ There are always 4 display zones in the measuring value block (if necessary in physical quantities). Decoding the individual values in display zones 1 to 4 - Test table.

List of selectable display group numbers





1)Observe notes for vehicles with diesel engine.





Fitted only in vehicles with data bus





Notes:
^ If the printer is switched on, the current display is printed out on the log.
^ If the specified values are obtained in all the display zones:
^ Press key -> .





Indicated on display
