Compact Disc Player (CD): Service and Repair

CD Player, Removing And Installing

CD player can combined with "Premium V" and "Premium V - Monsoon" radios only.

CD player also works with above radio systems that include a CD changer. CD changer is then manually controlled by CD player.

The CD player is connected to the radio. If the CD player/radio system includes a CD changer, the CD changer is connected to the CD player.


NOTE:
When installing a new CD player in vehicle not previously equipped with one:
- Radio must be coded in order to support CD player functions. After installing new CD player, input appropriate radio coding using On Board Diagnostic program: "Code control module": function 07


Special tools, testers and auxiliary items needed.

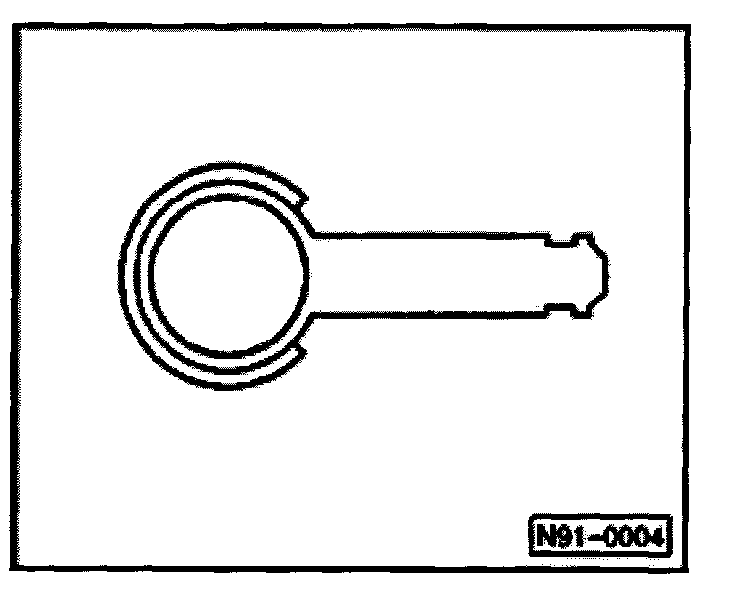

- Radio removal tool 3316 (two identical pieces).







Removing

- First remove radio.

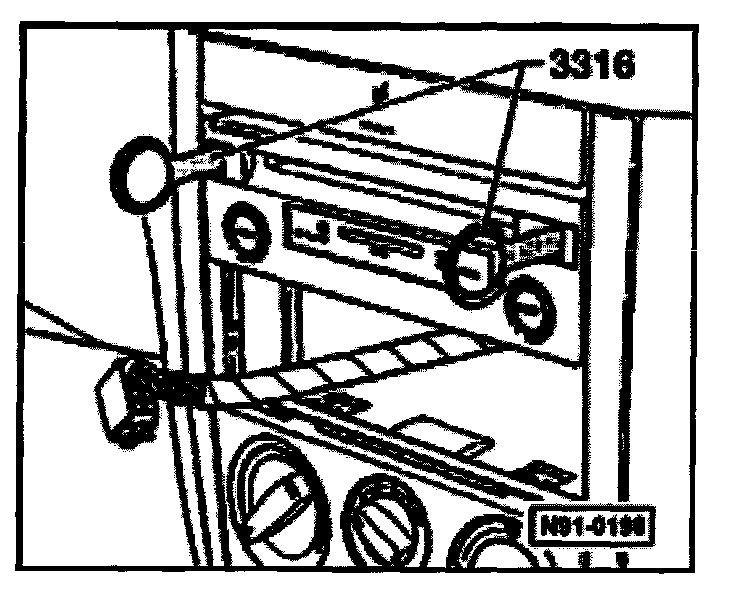

- Insert tool 3316 into openings on face of CD player -arrow- until they are felt to engage.
- Pull CD player from instrument panel opening using handles on tool 3316.
- Where applicable, disconnect electrical connection from CD changer to CD player.


NOTE:
- CD player must be pulled straight out from opening. Do not twist or tilt tools while removing.
- To remove tool from CD player, release locking tabs on side of CD player when removed.


Installing

- Install in reverse order of removal.


NOTE: When installing CD player in vehicle not previously equipped with one, remove storage bin above radio first.


- Reinstall radio.
- Input radio anti-theft security code.
- Confirm radio coding for sound system functions using On Board Diagnostic program: "Code control module", function 07


NOTE: Radio sound system coding must be performed to account for presence of CD player, CD changer (if installed), Monsoon system (where applicable) and interior sound field differences between models.
