Armrest Lid, Removing

Armrest Lid, Removing

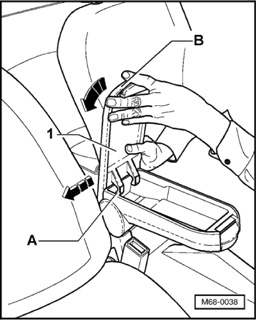

- Open armrest lid - 1 - approx. 60 (see illustration).
- Hold armrest lid - 1 - firmly.
- Press armrest lid base - A - with right hand in direction of - arrow - (see figure) and with left hand move armrest lid top end - B - in direction of - arrow - (see figure) until lid has been released from armrest.
- Clean marks in armrest lid base - A - with clean flannel.







- Verify any existing damage to interior velour carpet, and substitute if necessary.
