Front Ashtray, Removing and Installing

Front Ashtray, Removing And Installing

Removing

CAUTION: Disconnect battery ground strap before working on electrical system.

- Switch ignition off.

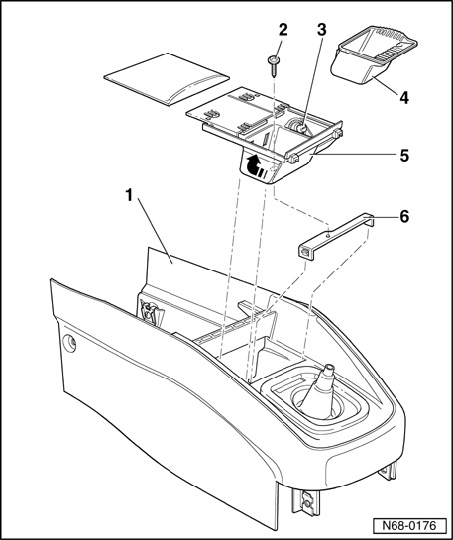

- Pull out ashtray insert - 4 -.
- Remove bolt - 2 - from bracket - 6 -.
- Slide ashtray - 5 - forward, close and pull out - arrow - far enough until cigarette lighter connector - 3 - can disconnected.







- Pull out ashtray - 5 - from center console - 1 -.







Installing
Installation is reverse order of removal.
