Initiating Basic Setting
Basic setting, initiating
Special tools and equipment
V.A.G 1869 Brake filling and bleeder unit
Function 04 "Introduce basic settings" performs several functions:
Display group 001 is required to bleed the hydraulic system.
Note: The basic setting to bleed the hydraulic unit is only required when one chamber of the brake fluid reservoir is completely empty.
Display group number 01: Bleeding hydraulic unit
Note: All functions, which could previously be performed V.A.G 1551 can also be performed with the tester VAS 5051.
^ Connect brake filling and bleeder unit V.A.G 1869.
^ Connect V.A.G 1551 Scan Tool and select (address word 03) "Brake electronics control module" with ignition switched on.

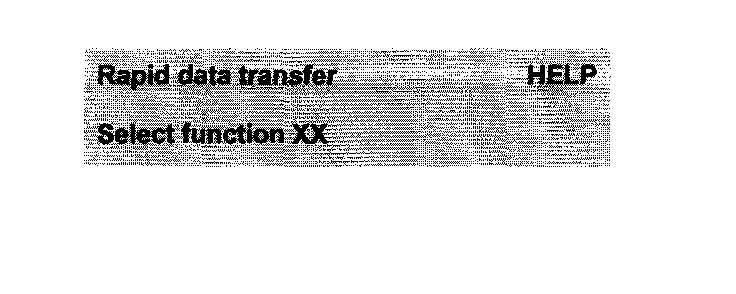

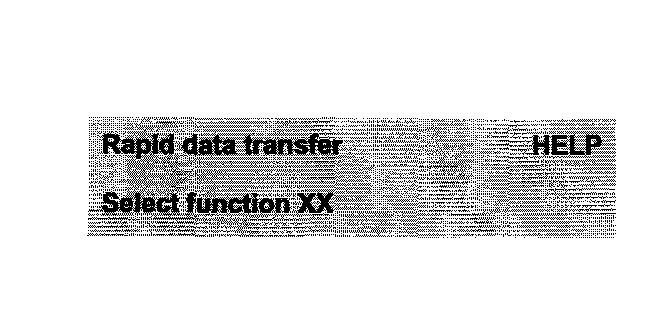

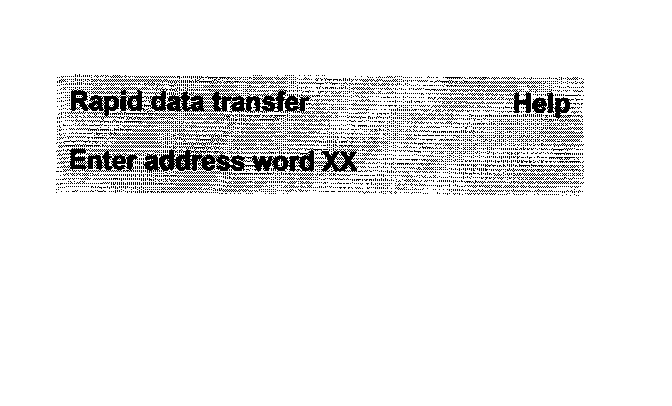

Indicated on display
^ Press keys O and 4. (The function "Initiating basic setting" is selected with 04).

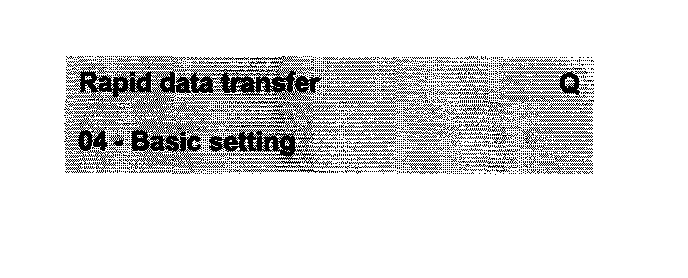

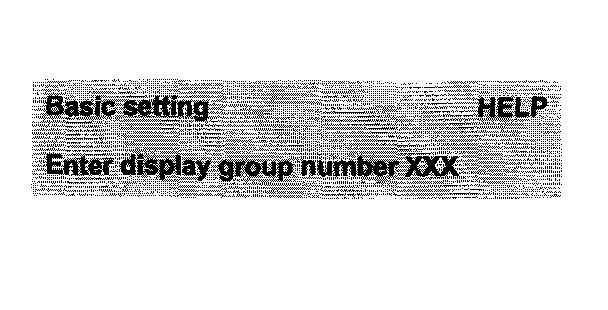

Indicated on display
^ Confirm entry with key Q.
Indicated on display:
^ Press keys 0, 0 and 1
^ Confirm entry with key Q.

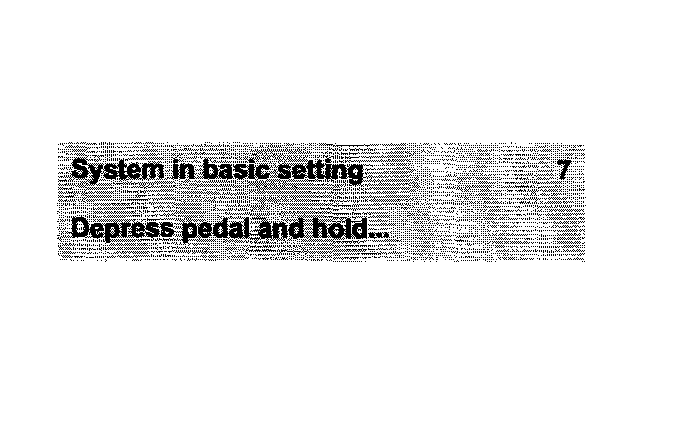

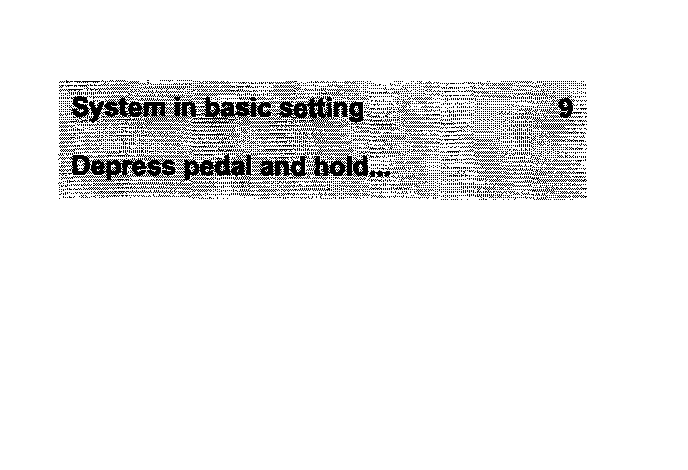

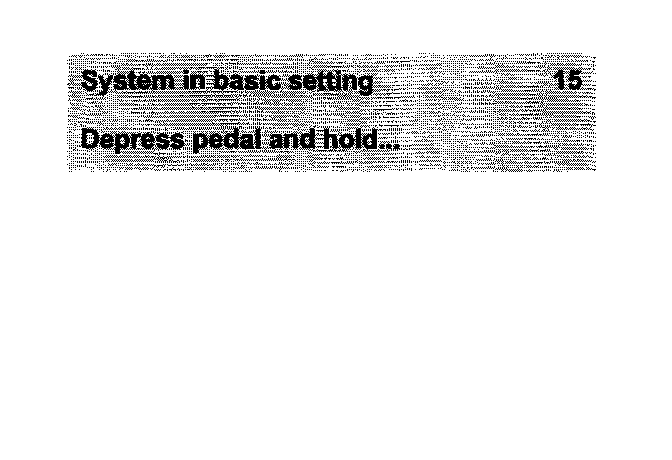

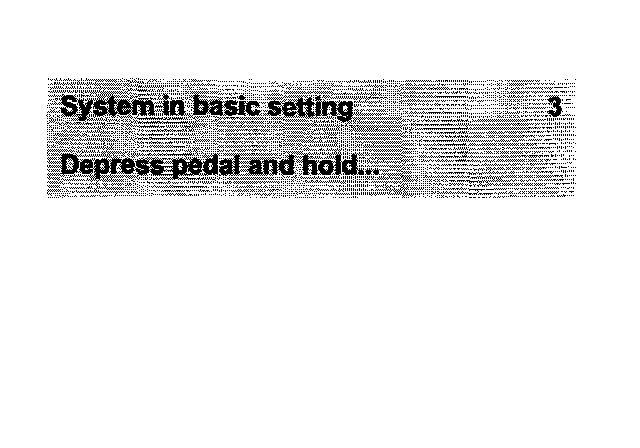

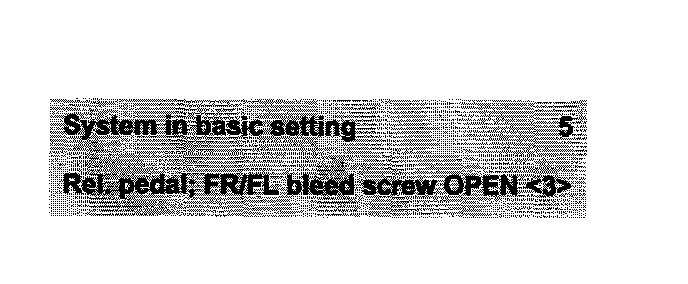

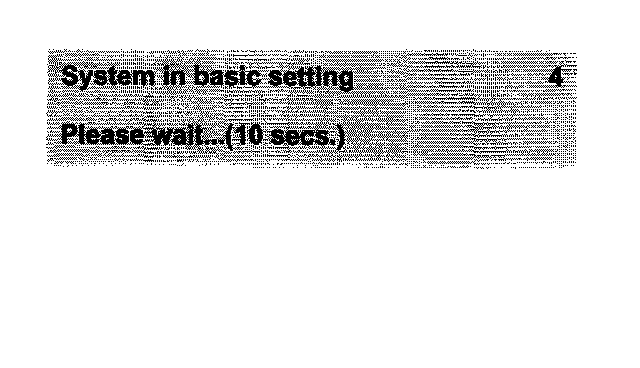

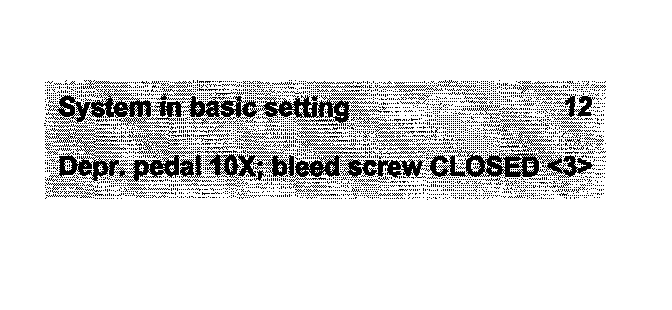

Indicated on display:
^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

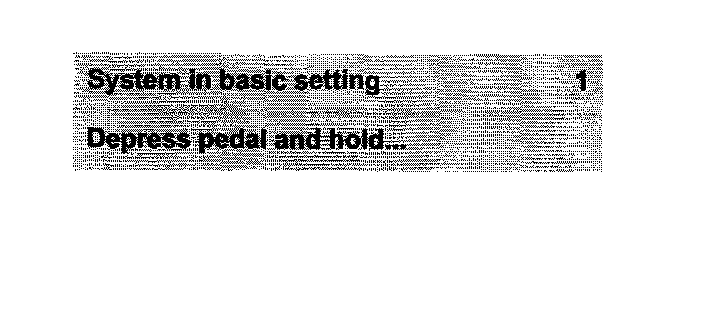

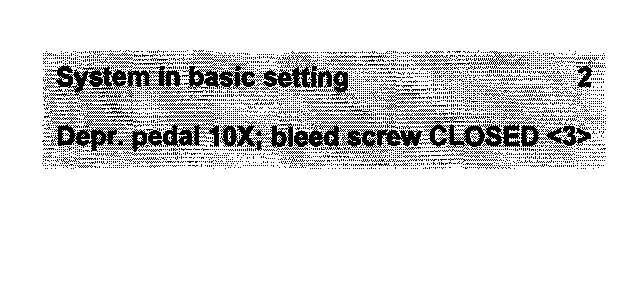

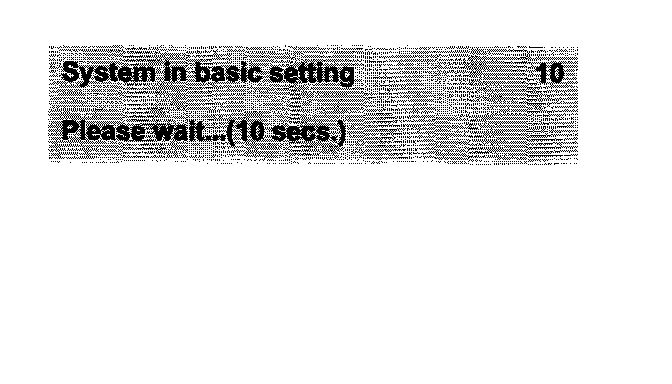

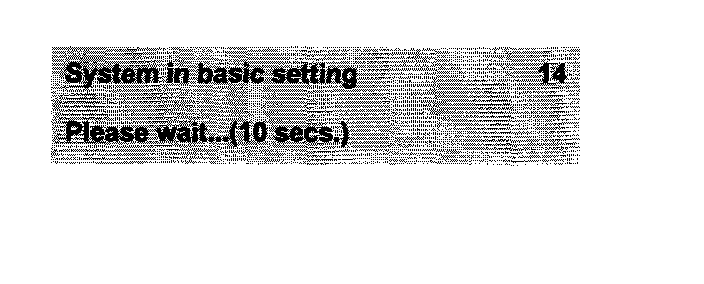

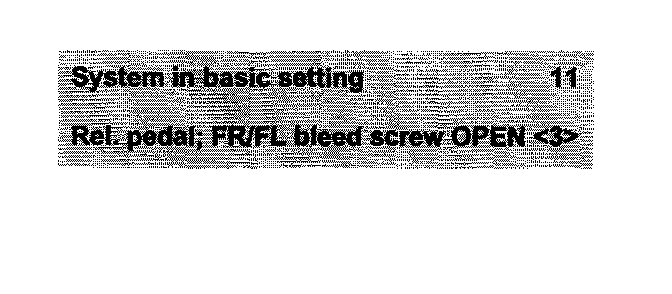

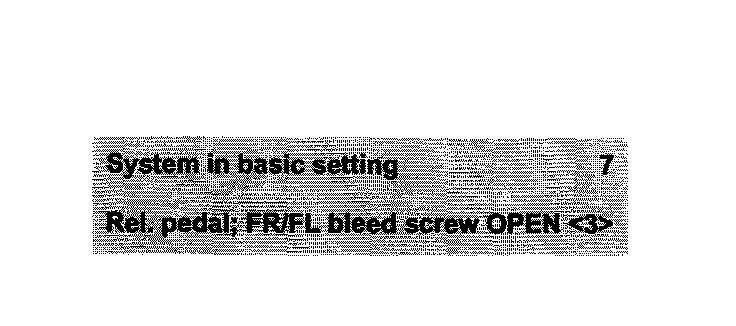

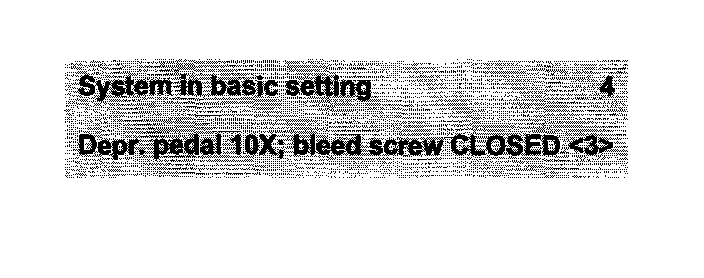

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:
^ Hydraulic pump runs

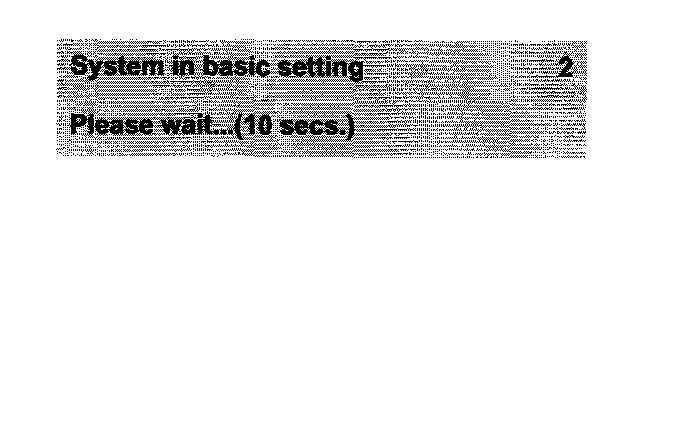

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:
^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

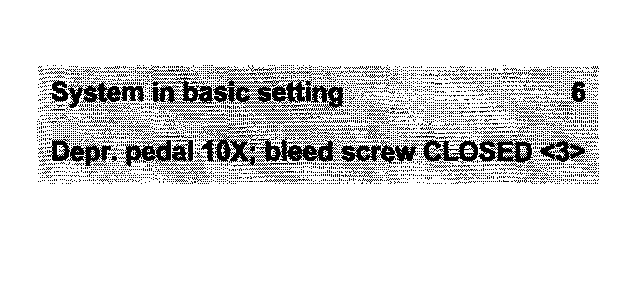

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
^ Hydraulic pump runs
Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:
^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back
Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
^ Hydraulic pump runs
Indicated on display:
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:

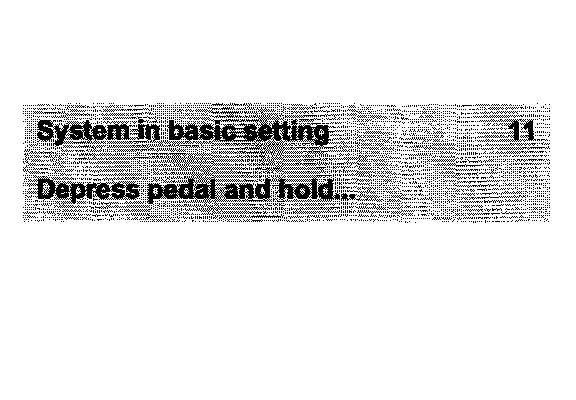

^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

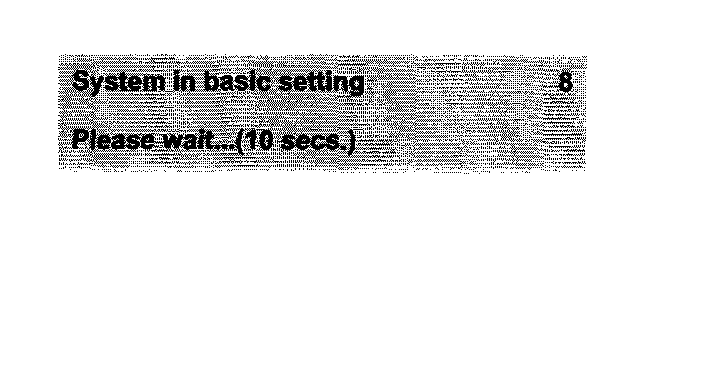

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
^ Hydraulic pump runs

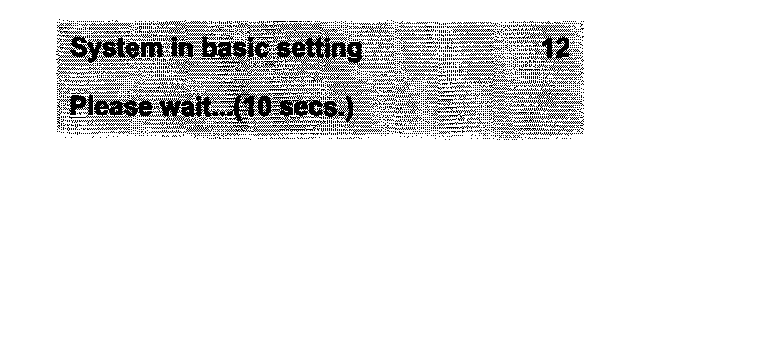

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:
^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back
Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
^ Hydraulic pump runs
Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:

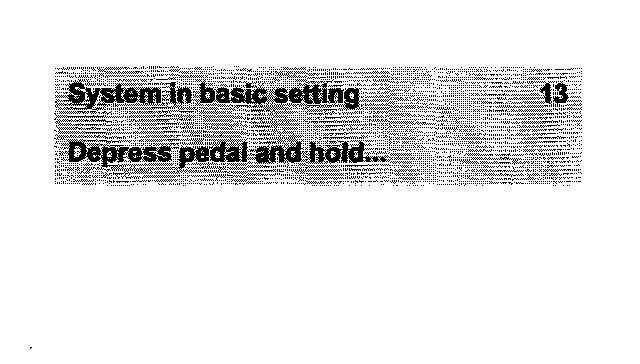

^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

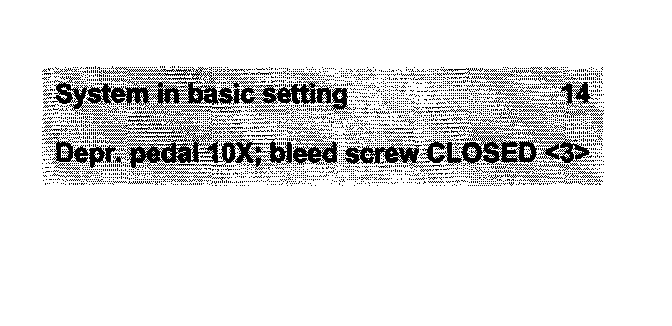

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
^ Hydraulic pump runs
Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:
^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs

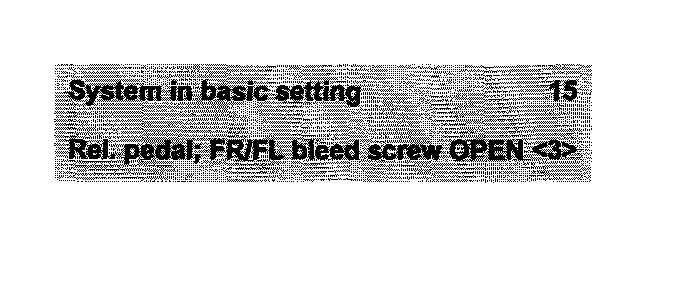

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
^ Hydraulic pump runs
Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display:
^ Operate brake pedal with substantial foot pressure and hold.
- Pedal moves down
- Hydraulic pump runs
- Pedal comes back

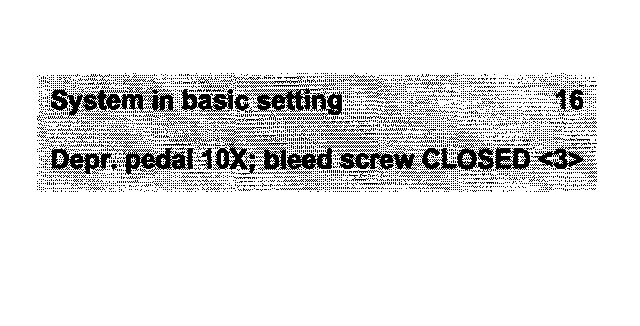

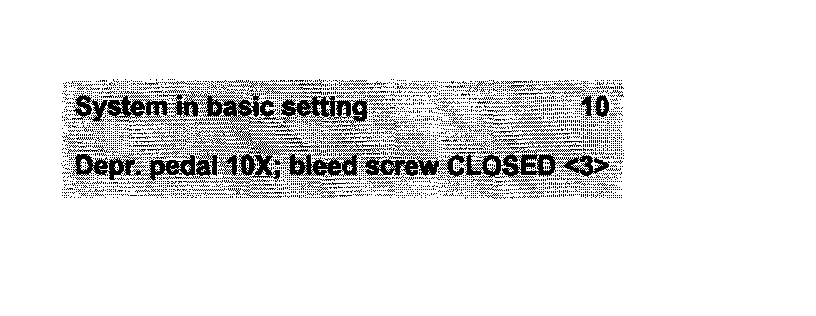

Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.
Indicated on display
^ Hydraulic pump runs
Indicated on display
^ Press key 3 on VAG 1551 or arrow up key on VAS 5051.

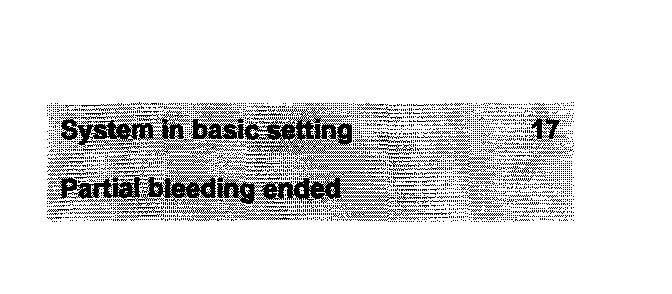

Indicated on display
^ Press (arrow) key.
Indicated on display
^ Press keys -0- and -6-, this ends the output.
Indicated on display
^ Confirm entry with Q key
Indicated on display
^ Press C key
^ Switch ignition off.
^ Disconnect V.A.G 1551 Scan Tool at Data Link Connector (DLC).
^ Bleed brake system.
