Combination Switch

Switch for windshield wiper and washer system and multi-function indicator

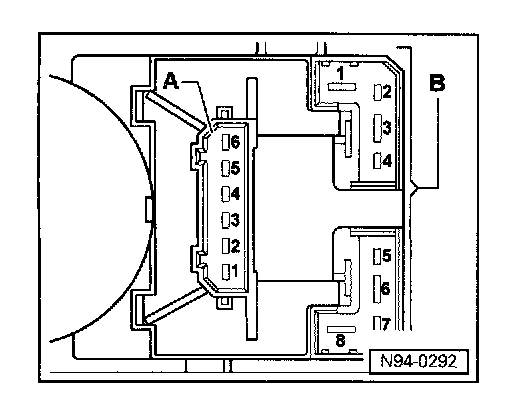

A - Harness connector, 6-pin
1 - MFI call-up button - right
2 - MFI call-up button - left
3 - MFI call-up button - terminal 31
4 - MFI safe switch - Reset
5 - Windshield wiper intermittent circuit regulator - to automatic intermittent wash/wipe relay
6 - Windshield wiper intermittent circuit regulator - terminal 31

B - Harness connector, 8-pin
1 - Windshield wiper switch - terminal 53
2 - Windshield wiper switch - terminal 31
3 - Windshield wiper switch - terminal 53e
4 - Windshield wiper switch - terminal 53c
5 - Windshield wiper switch - rear window wiper
6 - Windshield wiper switch - terminal 53b
7 - Windshield wiper switch - intermittent operation
8 - Windshield wiper switch - terminal 53a

Switch for turn signals, high and low beam, flasher and parking light

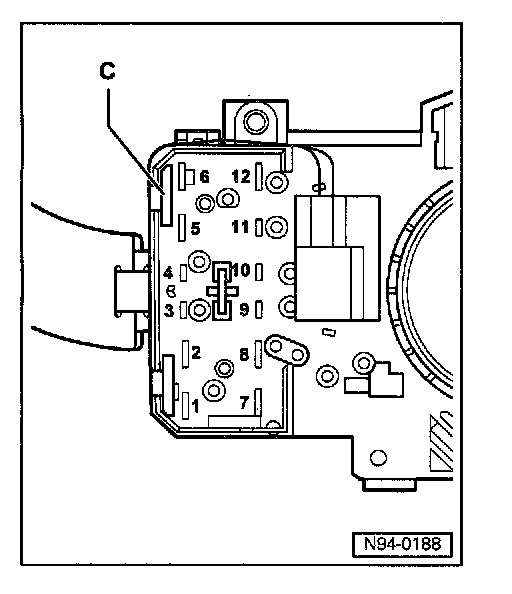

C - Harness connector, 12 pin
1 - Switch for dimmer/flasher - terminal 30
2 - Switch for dimmer/flasher - terminal 30
3 - Turn signal switch - terminal L
4 - Vacant
5 - Turn signal switch - terminal 49a
6 - Horn plate - terminal 71
7 - Switch for dimmer/flasher - terminal 56
8 - Switch for dimmer/flasher - terminal 56b
9 - Vacant
10 - Vacant
11 - Turn signal - terminal R
12 - Switch for dimmer/flasher - terminal 56a

Switch for cruise control system

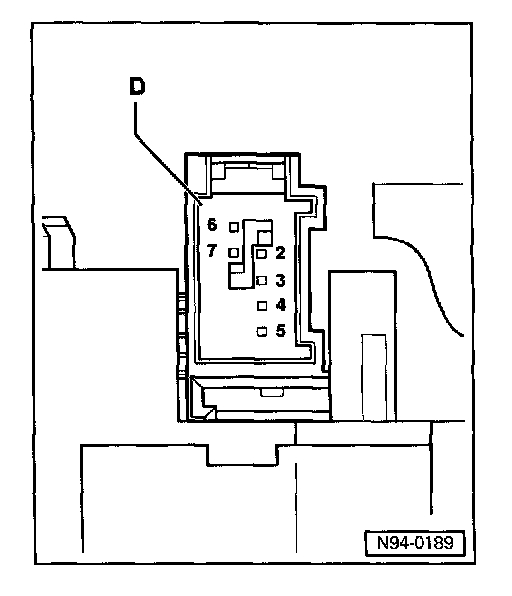

D - Harness connector, 10 pin
1 - Vacant
2 - Switch for CCS - On / Off
3 - Buttons for GRA - Set / Delay
4 - Switch for CCS - Reset / Resume saved speed / Accelerate
5 - Switch for CCS - Reset / Resume saved speed / Accelerate
6 - Switch for CCS - On / Off
7 - Switch for CCS
8 - Vacant
9 - Vacant
10 - Vacant
