Engine: Application and ID

Technical data

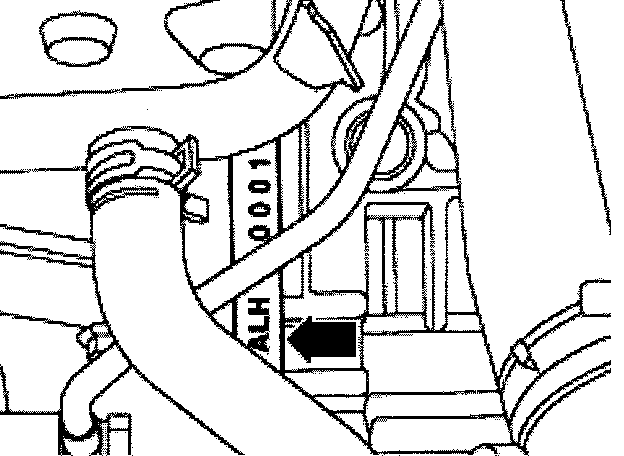

Engine number, locations





Engine number ("Engine code letters" and "Serial number") can be found between the Diesel injection pump and the exhaust manifold on the engine block.
There is also a sticker on the timing belt guard showing "Engine code letters" and "Serial number".

The engine number is also included on the vehicle data plate.

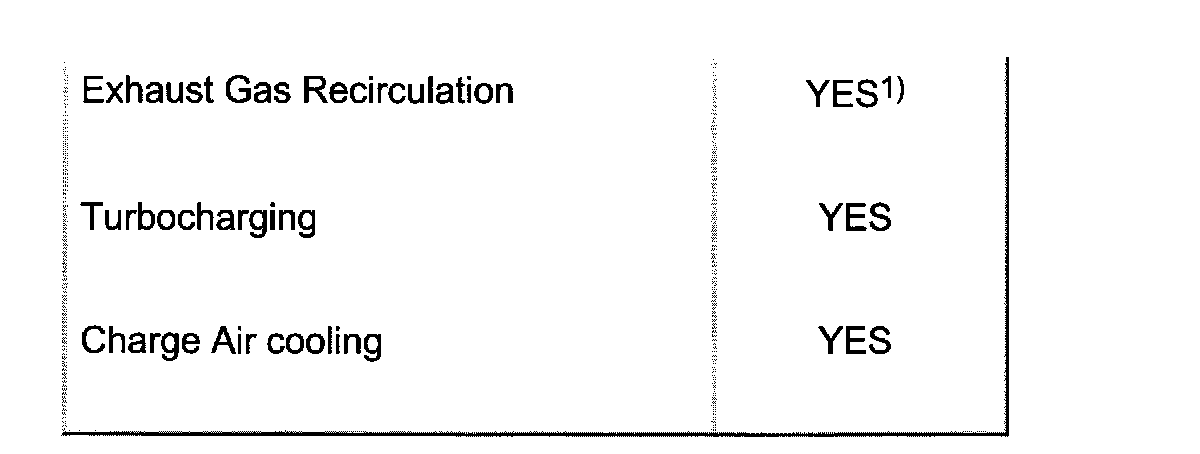

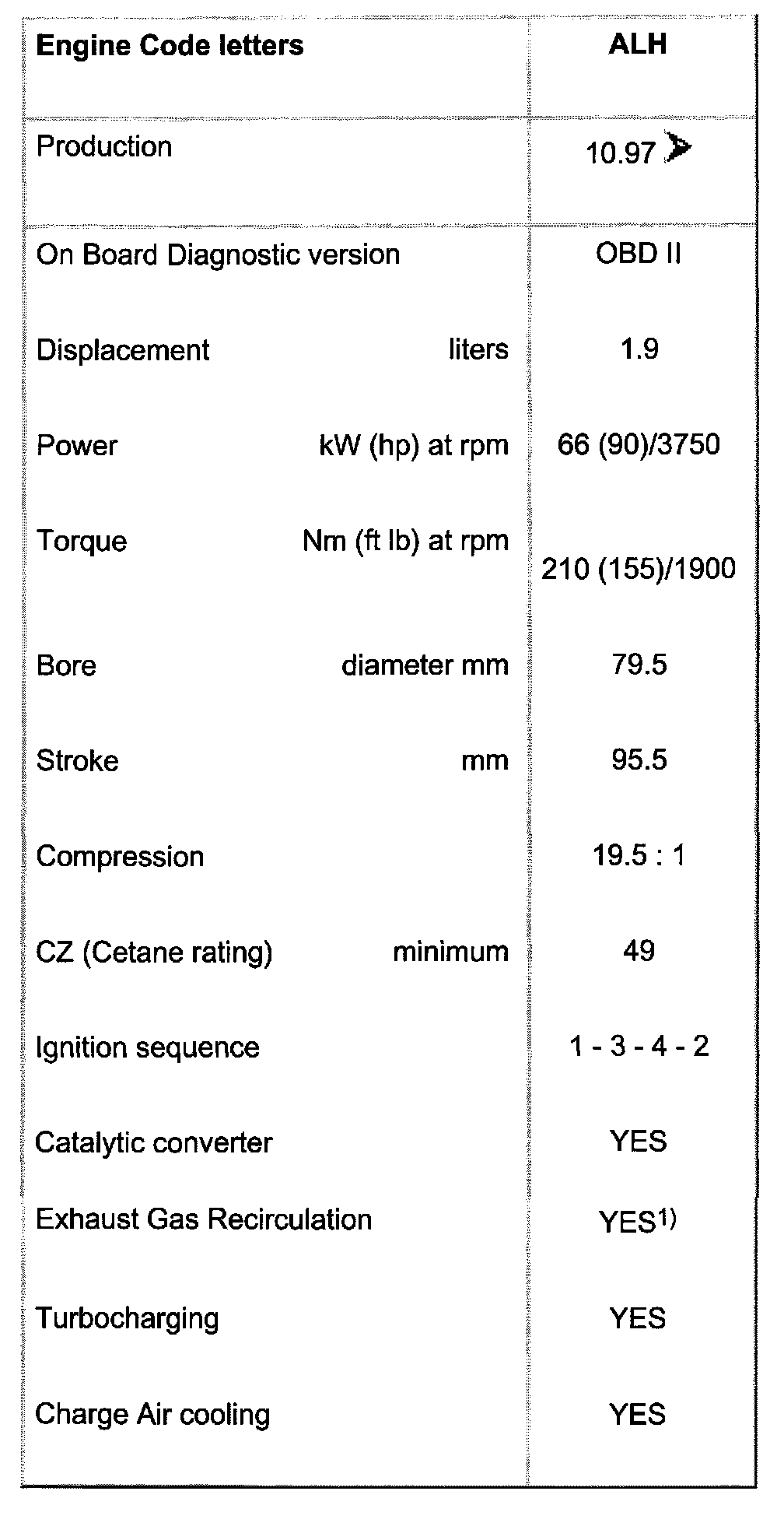

Engine data
1) With EGR cooling
