Evaluating Measured Value Blocks At Full Load

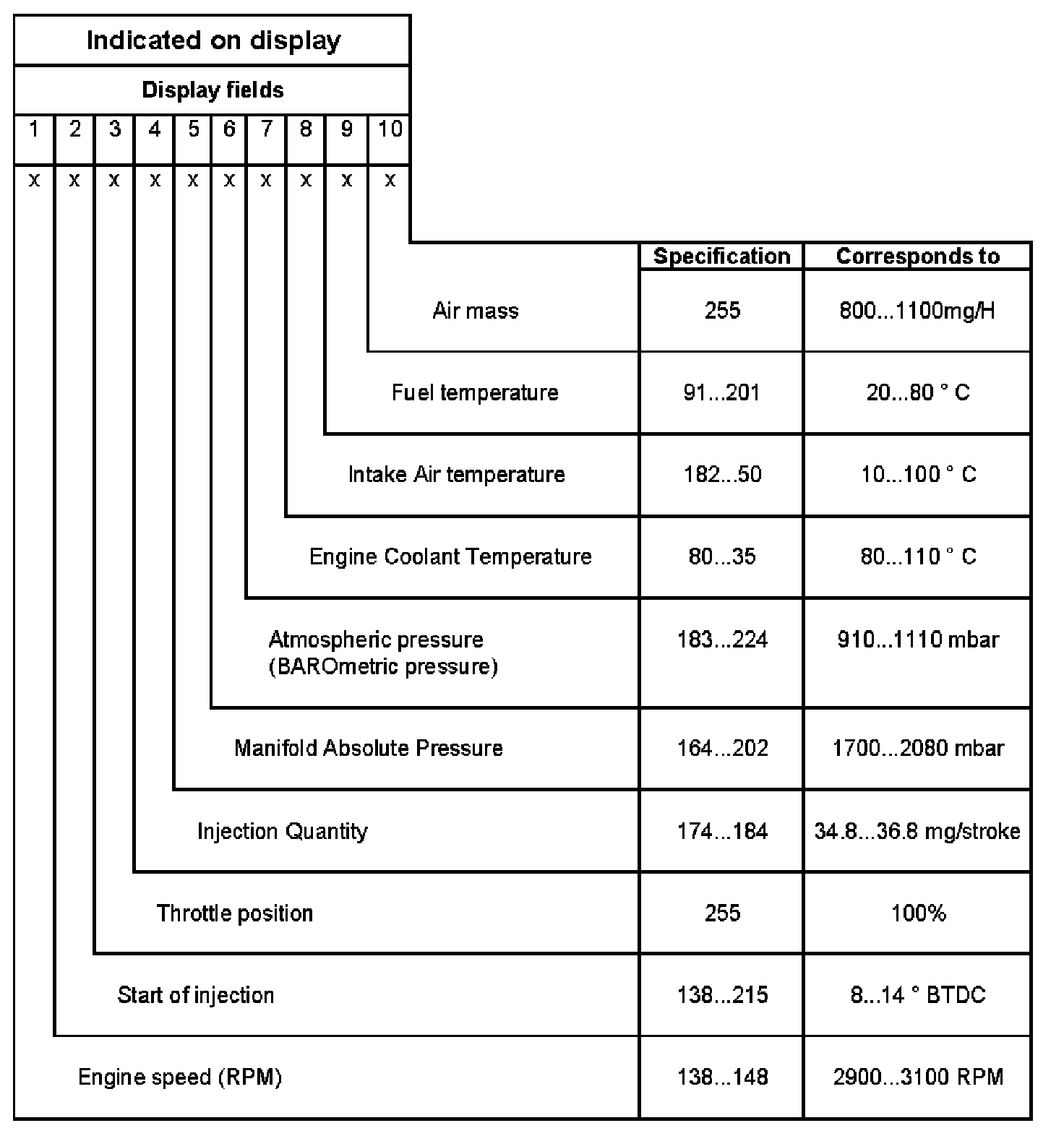

Display group 000 at Wide Open Throttle (WOT), test drive in 3rd gear, Engine Coolant Temperature 80 °C (176 °F) minimum
NOTE:
- When testing, accelerate vehicle at full throttle.
- Measured values must be printed or displayed (2nd person required) when engine speed reaches 3,000 RPM.
- Observe safety precautions when performing test drive Technician Safety Information
Display group 004 at Wide Open throttle (WOT), test drive in 3rd gear, Engine Coolant Temperature 80 °C (176 °F) minimum

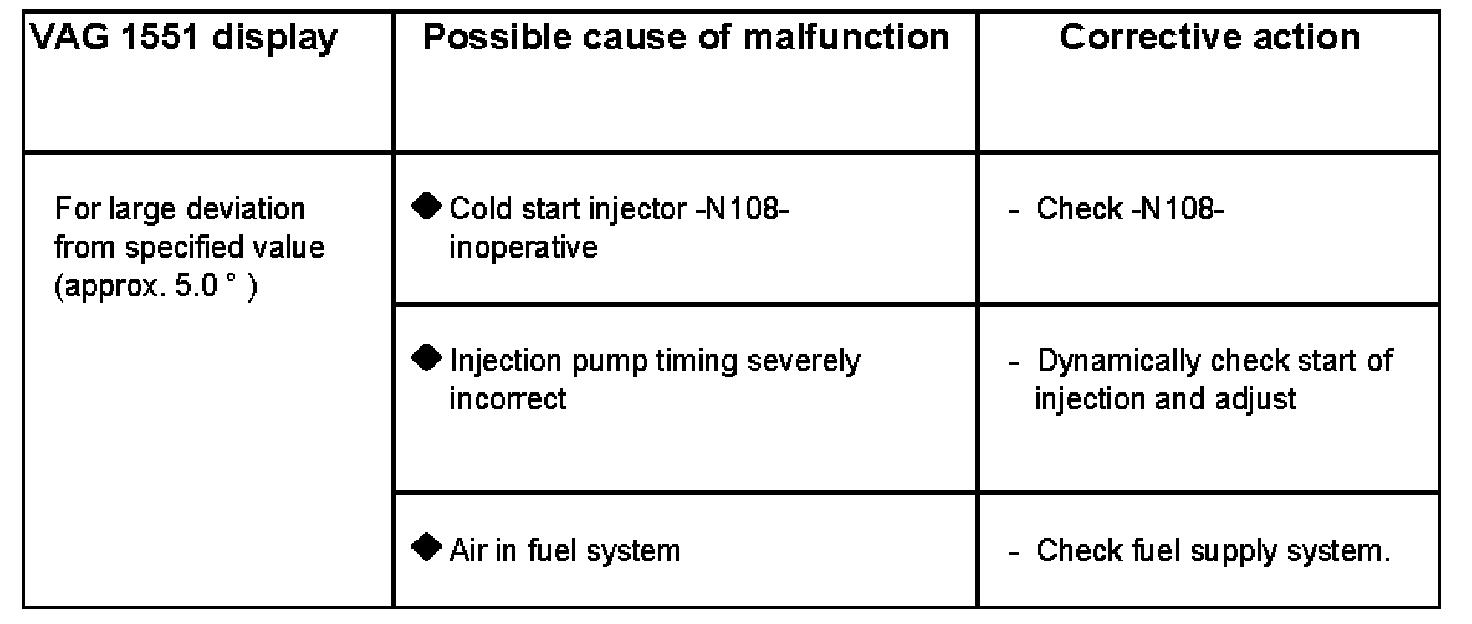

Evaluation: Start of injection (actual) display

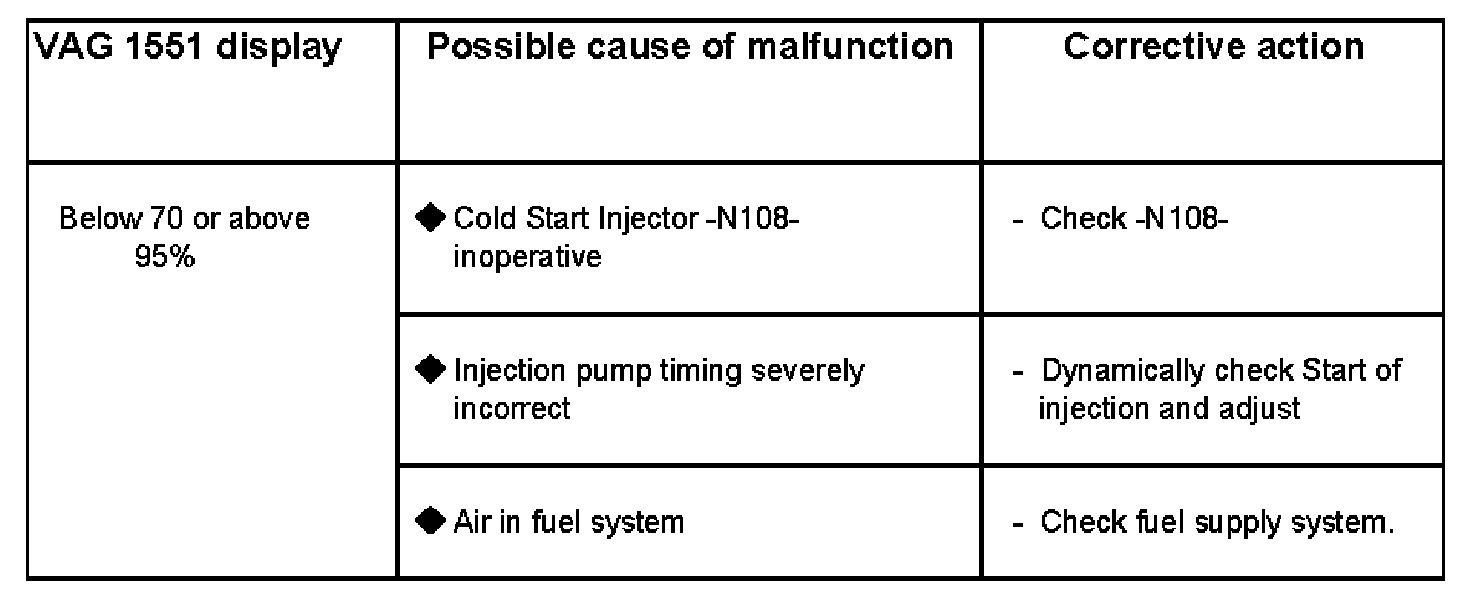

Evaluation: Cold start valve duty cycle display

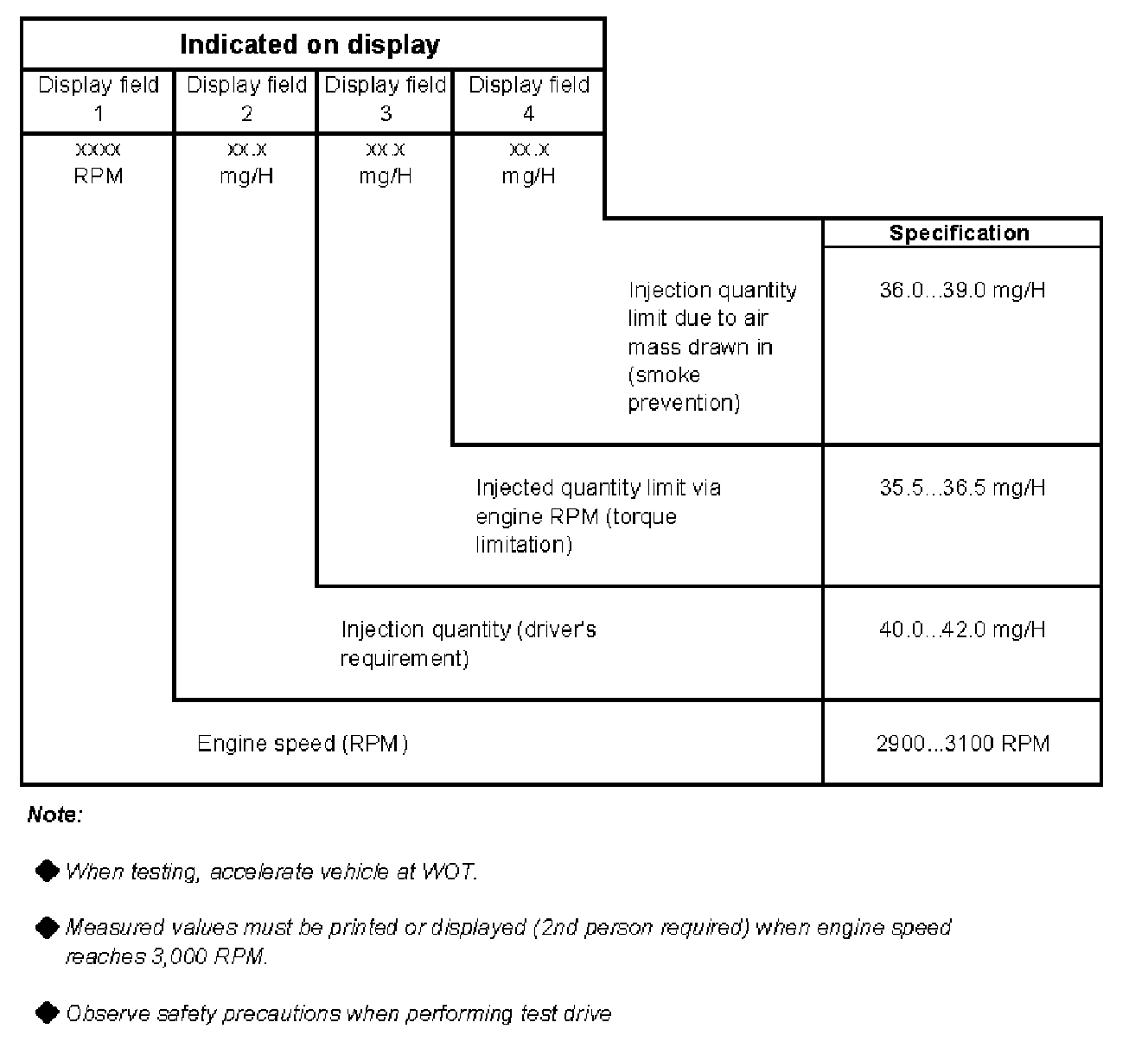

Display group 008 at Wide Open Throttle (WOT), test drive in 3rd gear, Engine Coolant Temperature 80 °C (176 °F)
Evaluation: Injected quantity (driver's requirement) display
Evaluation: Injected quantity limitation via RPM (torque limitation) display

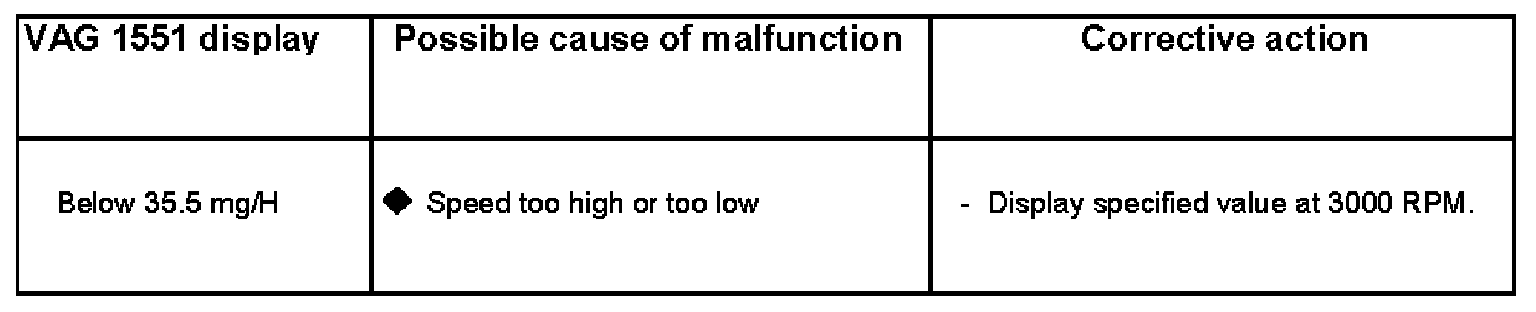

Evaluation: Injection quantity limitation due to air mass drawn in (smoke prevention) display

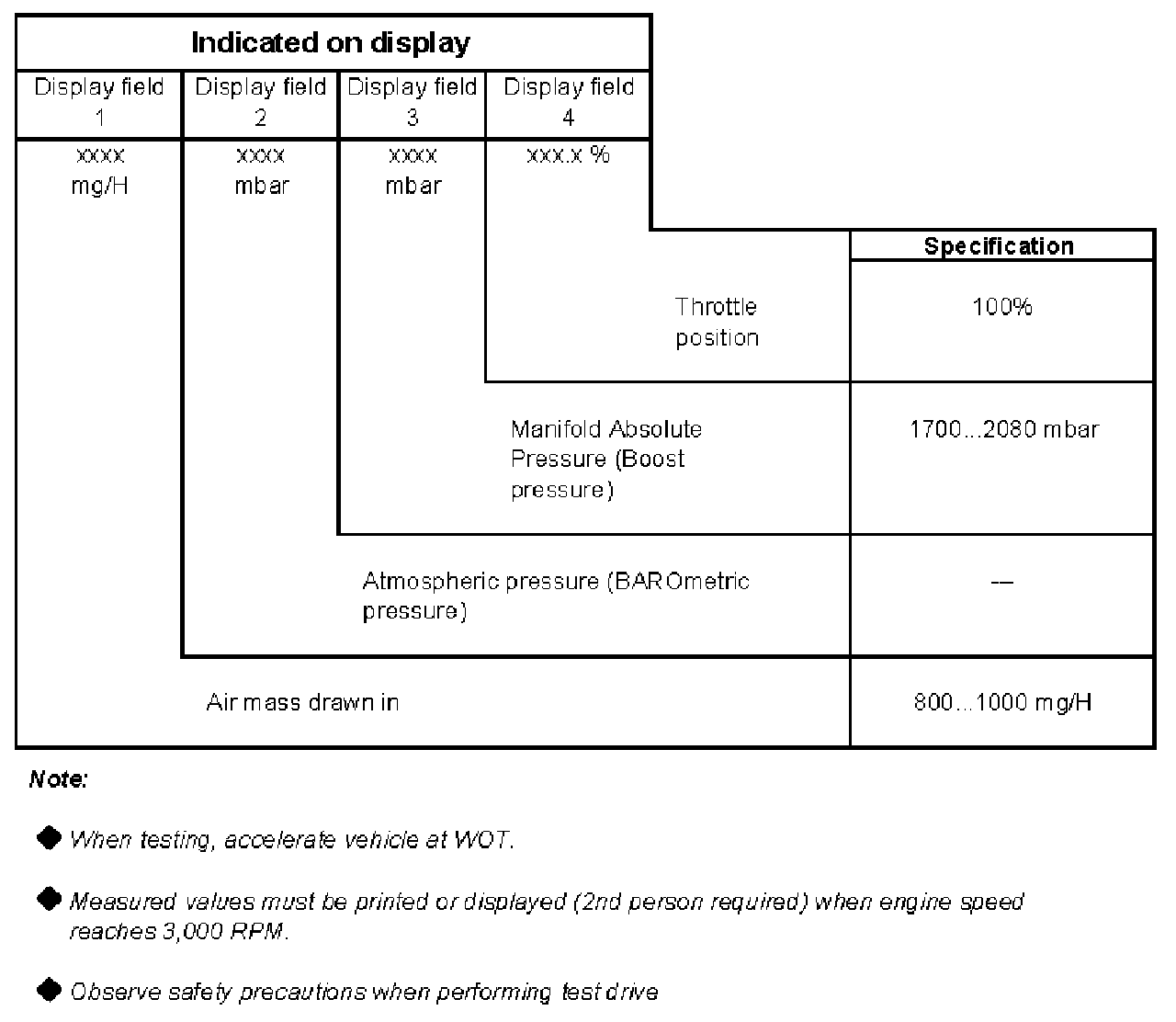

Display group 010 at WOT, test drive in 3rd gear, Engine Coolant Temperature 80 °C (176 °F) minimum

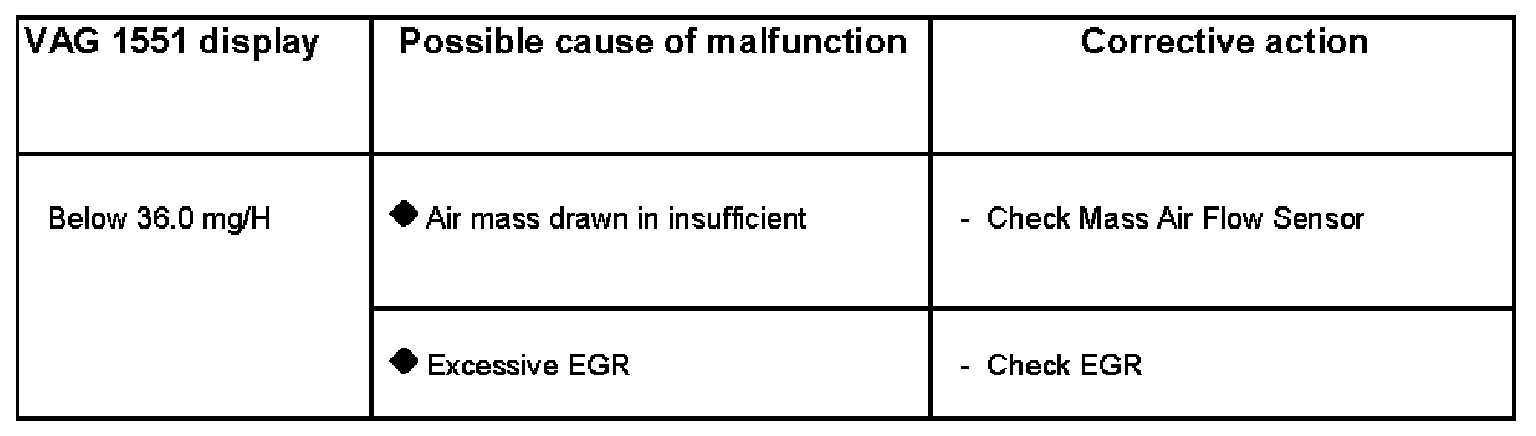

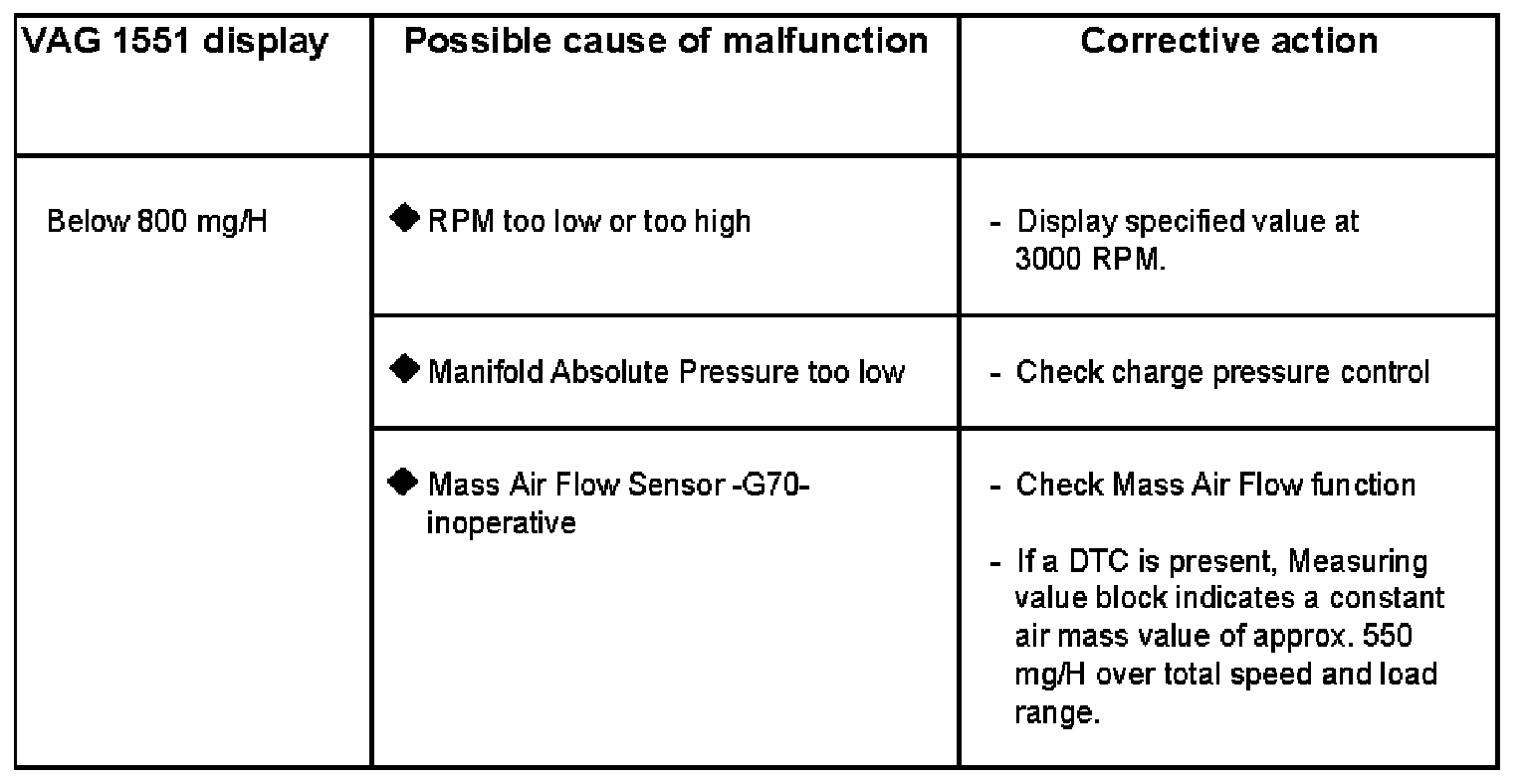

Evaluation: Air mass drawn in display

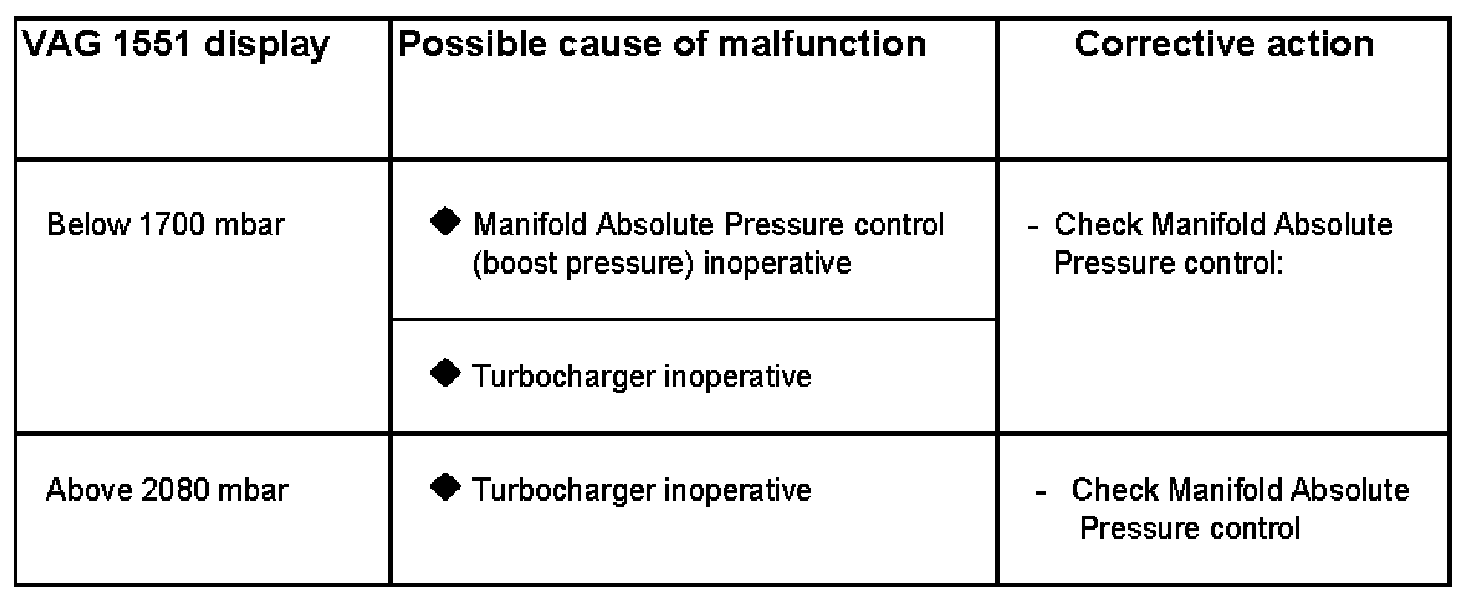

Evaluation: Intake manifold pressure (charge pressure) display

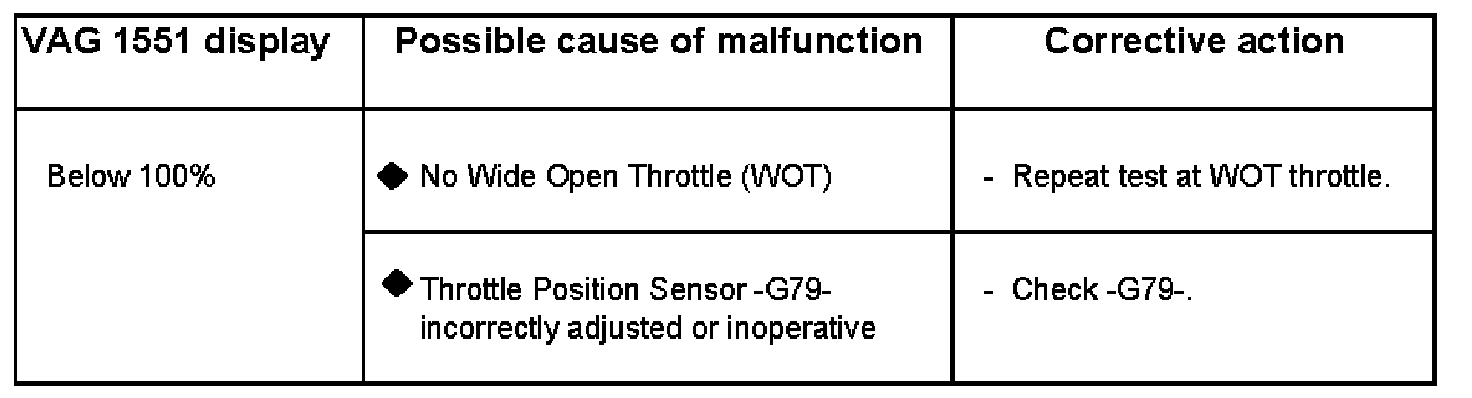

Evaluation: Accelerator pedal position display

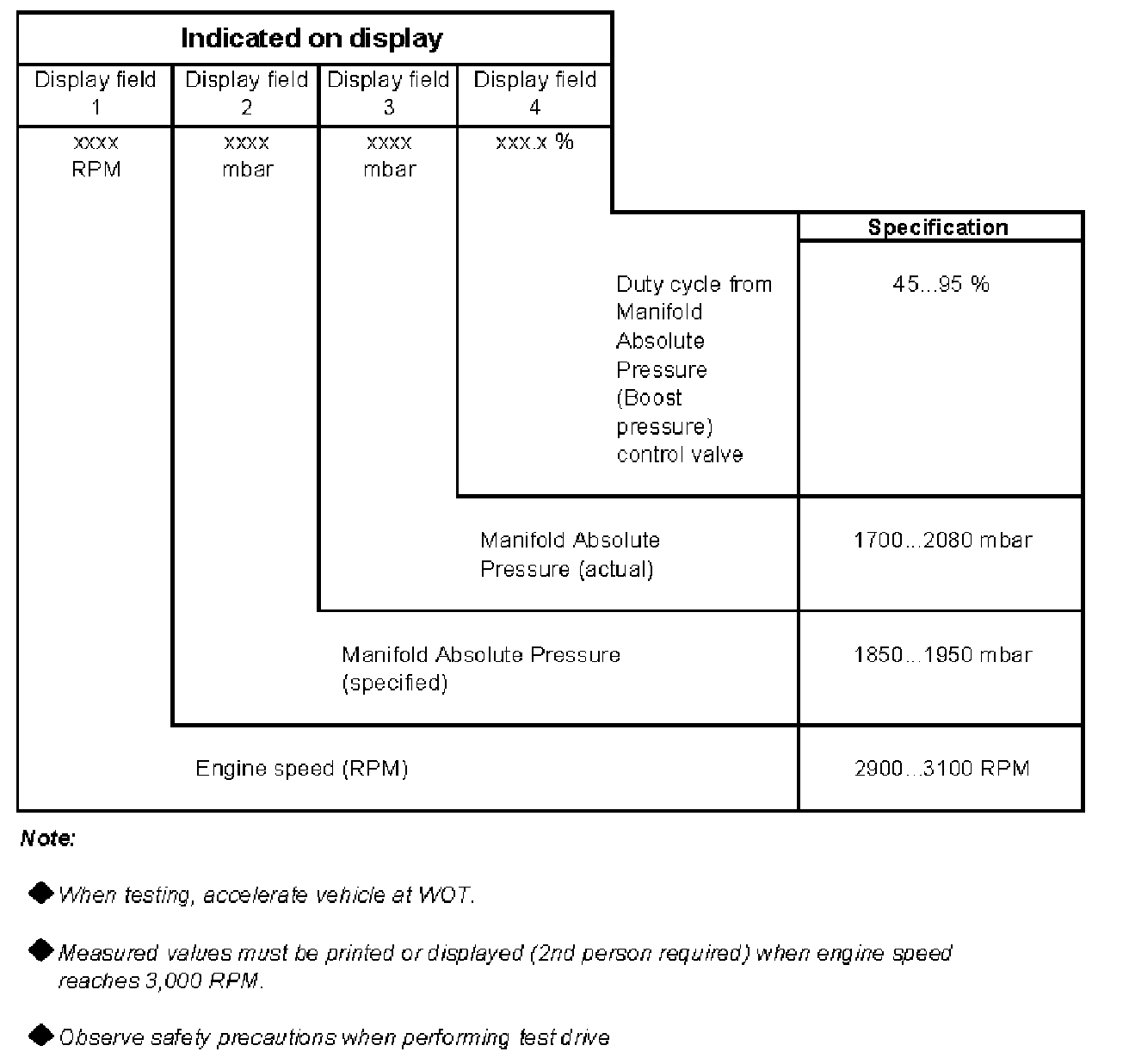

Display group 011 at Wide Open Throttle (WOT), test drive in 3rd gear, Engine Coolant Temperature 80 °C (176 °F) minimum

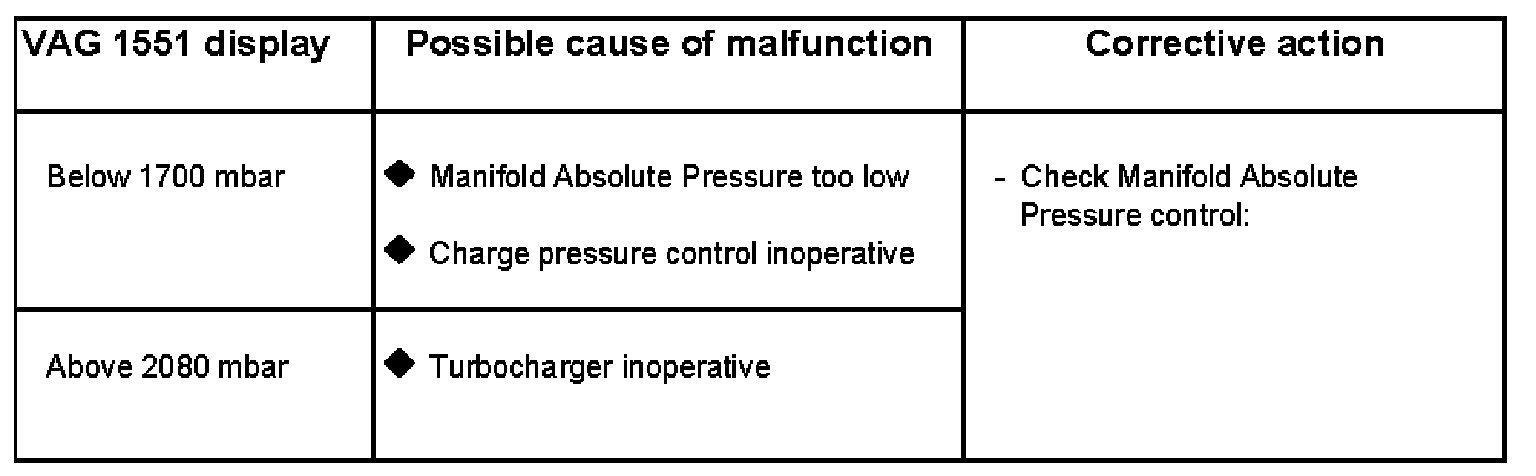

Evaluation: Manifold Absolute Pressure display (actual)
