Needle Lift Sensor, Checking

The needle lift sensor signal is used to determine the start of injection. If it tails the start of injection switches to open-loop control (using engine speed and engine load). During normal operation the start of injection is controlled by a closed-loop function (using engine speed, engine load and engine coolant temperature).

NOTE: The gold-plated contacts must be used to repair terminals in the connector for the needle lift sensor

Special tools and equipment
- Test box VAG 1598/22
- Digital multimeter US1119 (Fluke 83 or equivalent)
- Adapter set VAG 1594
- Wiring diagram

Test sequence

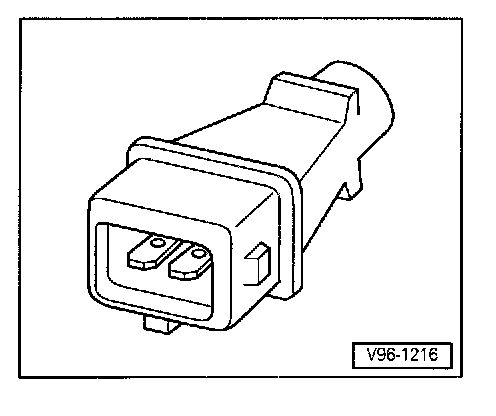

- Disconnect brown 2-pin connector from needle lift sensor (arrow).

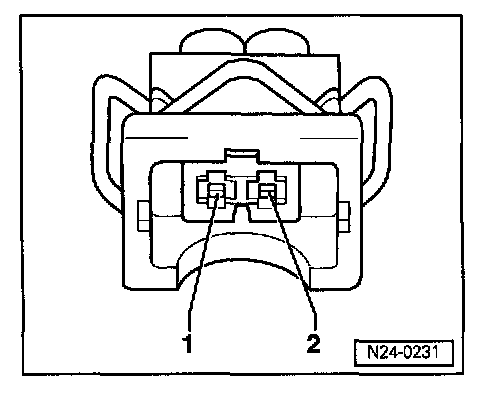

- Measure resistance between connector terminals.

- Specification: 80.0 to 120.0 ohms

If the specification is not obtained:
- Replace No.3 cylinder injector together with Needle Lift Sensor -G80- See "Injection Pump, Servicing", item 11. Procedures
- Check DTC memory and, if necessary, repair any malfunctions and then erase. Testing and Inspection
- Read readiness code. Testing and Inspection

If the DTC memory has been erased or the engine control module was disconnected from permanent battery positive (B+), the readiness code must be generated again. Testing and Inspection

If the specification is obtained:
- Remove wiper arms and plenum cover.

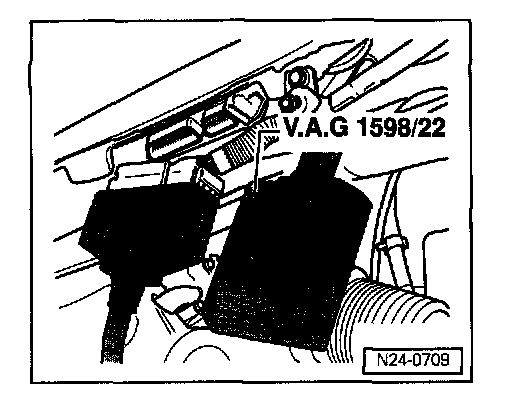

- Connect test box VAG 1598/22 to control module wiring harness





- Check wiring between test box and connector for open circuit according to wiring diagram.
Terminal 1 + socket 62
Terminal 2 + socket 55

- Wire resistance: max. 1.5 ohms

- Check wires for short to one another, to vehicle Ground and to battery positive (B+).

- Specification: Infinity ohms

If wiring and the resistance measurement values are OK:
- Replace engine control module. Service and Repair
