Component Tests - 4 Speed Automatic 01M



Control Module Pin Out Values

Transmission Electrical Check

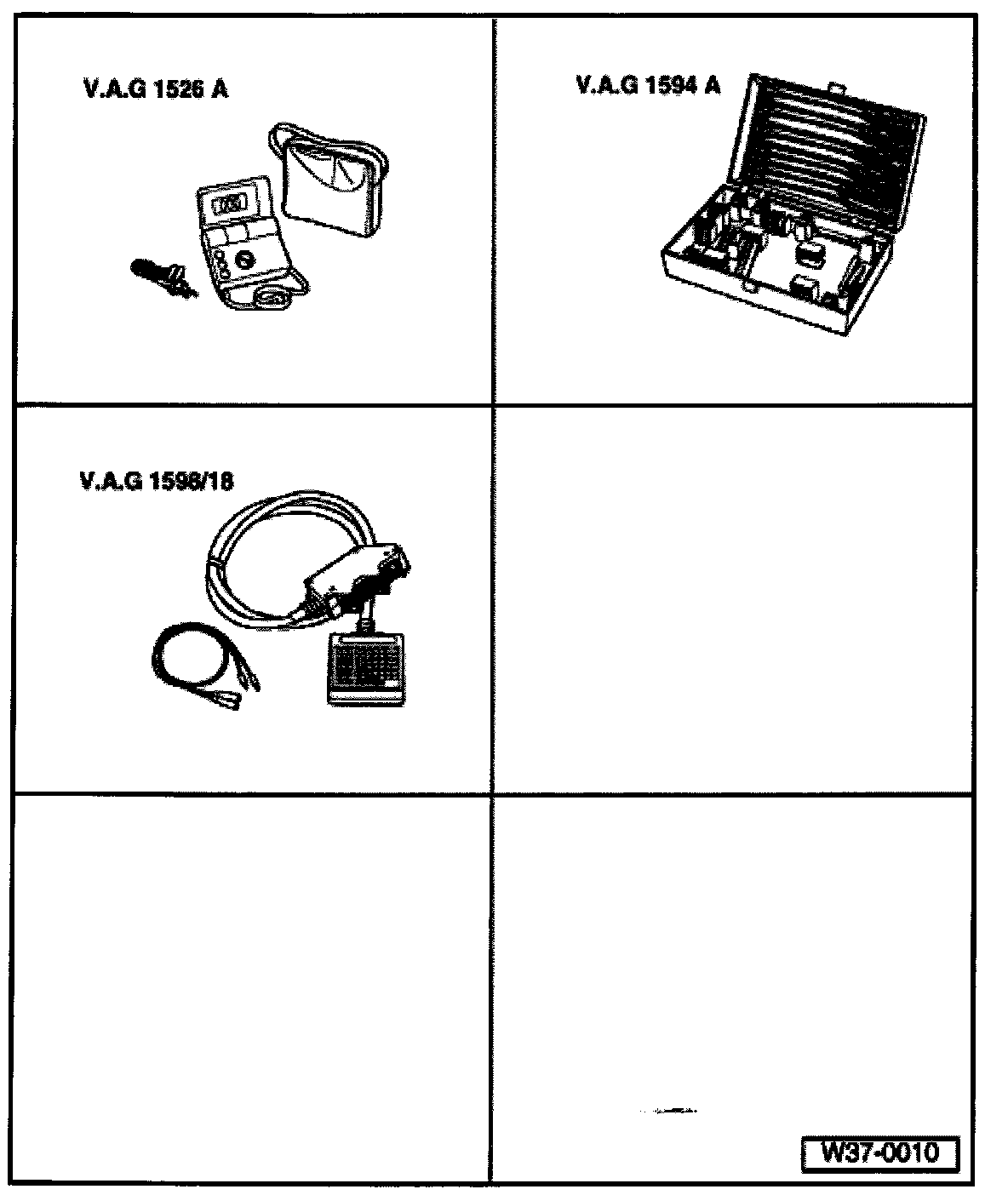

Special tools, testers, etc.
- Fluke (R) 83 Digital multimeter or equivalent
- VAG 1594 A Adapter set
- VAG 1598/18 Test box

Test requirements:
- Battery voltage OK
- Vehicle voltage supply OK
- Fuses No. 7, 11, 15 and 31 OK
- Fuse in main fuse box (110 amps) OK
- Ground connections for transmission OK
Ground connection points are located in the plenum area of the cowl and below the battery in the engine compartment.

- Check battery Ground strap and Ground strap between battery and transmission.

Electrical check
- Remove wiper arms.
- Switch ignition off, open hood

Removing plenum water tray cover

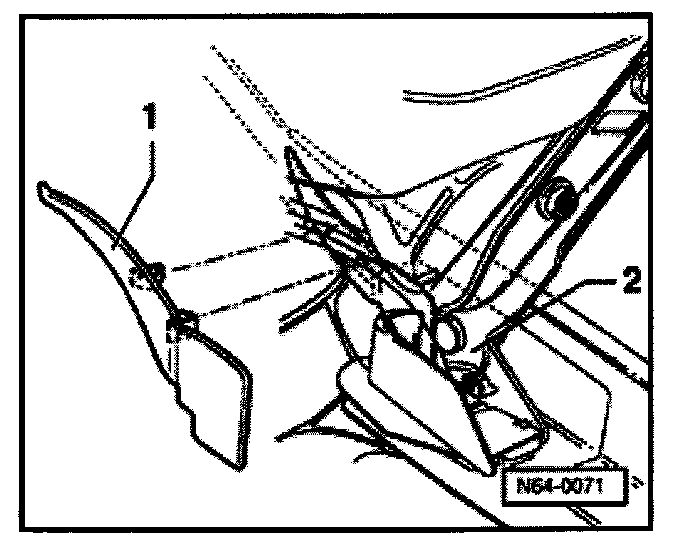

- Unclip trim -1- from inner side offender in area of hood hinge -2- on right and left sides.

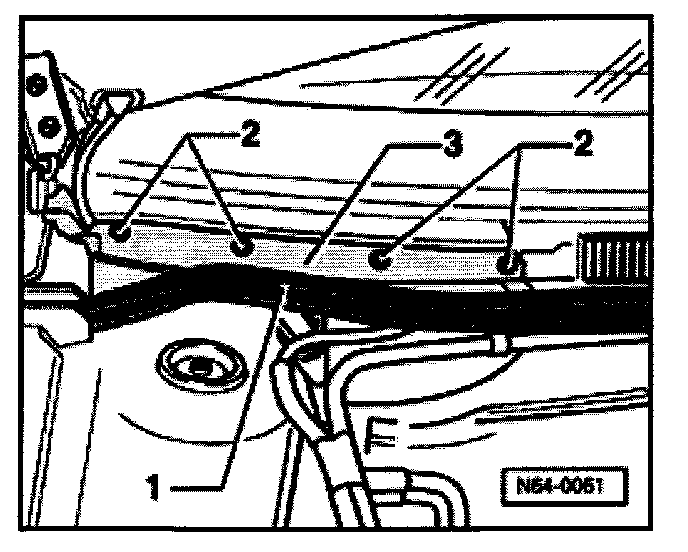

- Remove entire length of plenum seal -1- and remove screws -2-.
- Remove cover for pollen filter -3- by pulling cover forward and up.

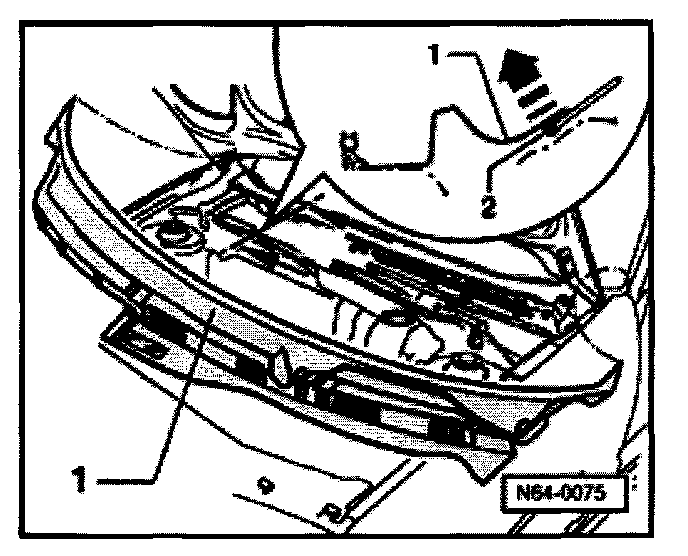

- Push plenum water tray cover -1- upward off of seat at base of windshield -2- and remove.

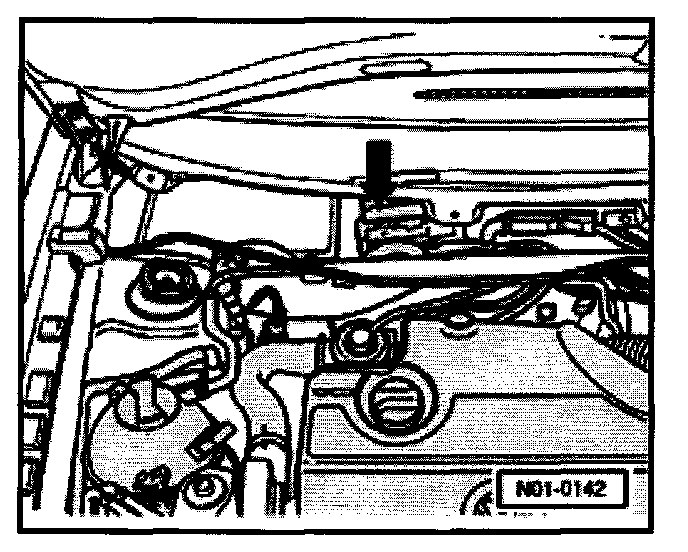

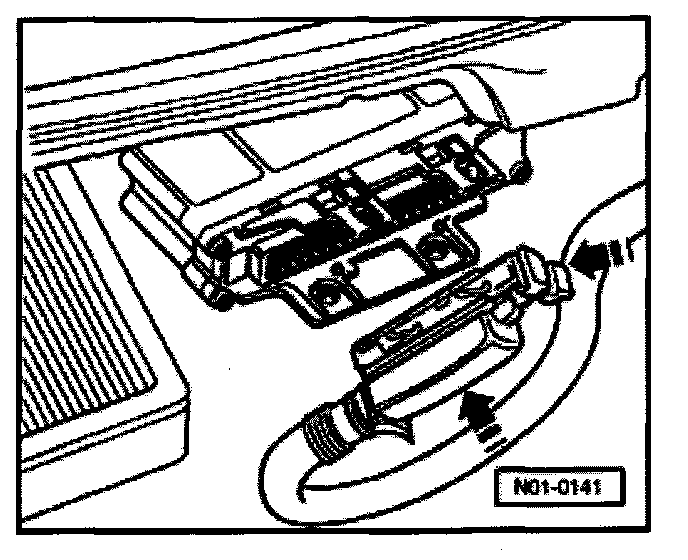

- Release control module connector and disconnect.

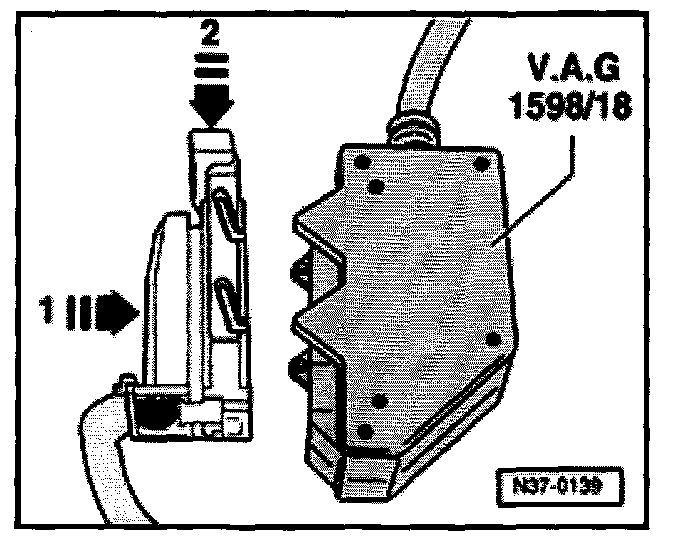

- Connect VAG 1598/18 test box to multi-pin connector -1- and lock in direction of arrow -2-
Using VAG 1598/18 the wiring can be checked according to the wiring diagram.


CAUTION!
In order to avoid interference with electronic components, switch to the correct test range on the multimeter before connecting the test leads.


NOTE:
- For testing use a Fluke 83 multimeter or equivalent with auxiliary wiring from VAG 1594.
- The specified values are valid for an ambient temperature from 0 °C - 40 °C (50 - 104 °F).
- If measured values differ from the specified values, determine the malfunction using the appropriate wiring diagram.
- If measured values differ only slightly from the specified values, clean the sockets and connectors of the testers and test leads and repeat the test. Before replacing the particular components, test wiring and connections and, particularly if specified values are below 10 Ohms, repeat resistance measurement on the component.


After electrical checks:







- Connect multi-pin connector to TCM -J217- pins (arrows) and lock connector.
- Performing On Board Diagnostic (OBD). Connecting VAG 1551 Scan Tool
- Initiating basic setting. Programming Trans Control Module (Basic Setting, Initiating) - 4 Speed Automatic 01M

Transmission Control Module (TCM) -J217- 68-pin connector assignment (socket numbers on VAG 1598/18)

1 - Ground (terminal 31)
2 - Vacant
3 - CAN-Bus Low input and output signals
4 - Vacant
5 - Vacant
6 - Transmission Fluid Temperature Sensor -G93-
7 - Vacant
8 - Vacant
9 - Solenoid valve 3 -N90-
10 - Solenoid valve 7 -N94-
11 - Park/neutral signal
12 - Vacant
13 - Vacant
14 - Vacant
15 - Brake Light Switch -F- signal voltage
16 - kick Down Switch -F8-
17 - Vacant
18 - Multi-Function TR Switch -F125- (pin 5)
19 - Vacant
20 - Vehicle Speed Sensor -G68-
21 - Transmission Vehicle Speed Sensor -G38-
22 - Solenoid valve 6 -N93- supply voltage
23 - Supply voltage (terminal 15)
24 - OBD K-wire
25 - CAN-Bus High input and output signals
26 - Vacant
27 - Vacant
28 - Vacant
29 - Shift Lock Solenoid -N110-
30 - Vacant
31 - Vacant
32 - Vacant
33 - Vacant
34 - Vacant
35 - Vacant
36 - Vacant
37 - Vacant
38 - Vacant
39 - Vacant
40 - Multi-Function TR Switch -F125- (pin 2)
41 - Vacant
42 - Vacant
43 - Vehicle Speed Sensor -G68- (shielding)
44 - Transmission Vehicle Speed Sensor -G38- (shielding)
45 - Supply voltage (terminal 30)
46 - Vacant
47 - Solenoid valve 4 -N91-
48 - Vacant
49 - Vacant
50 - Vacant
51 - Vacant
52 - Vacant
53 - Vacant
54 - Solenoid valve 2 -N89-
55 - Solenoid valve 1 -N88-
56 - Solenoid valve 5 -N92-
57 - Selector lever display
58 - Solenoid valve 6 -N93-
59 - Vacant
60 - Vacant
61 - Vacant
62 - Multi-Function TR Switch -F125- (pin 6)
63 - Multi-Function TR Switch -F125- (pin 1)
64 - Vacant
65 - Vehicle Speed Sensor -G68-
66 - Transmission Vehicle Speed Sensor -G38-
67 - Solenoid valves voltage supply
68 - Vacant

Overview of test steps
- Perform only those test steps recommended in the Diagnostic Trouble Code (DTC) and Measured Value Block tables
- Steps listed below according to component

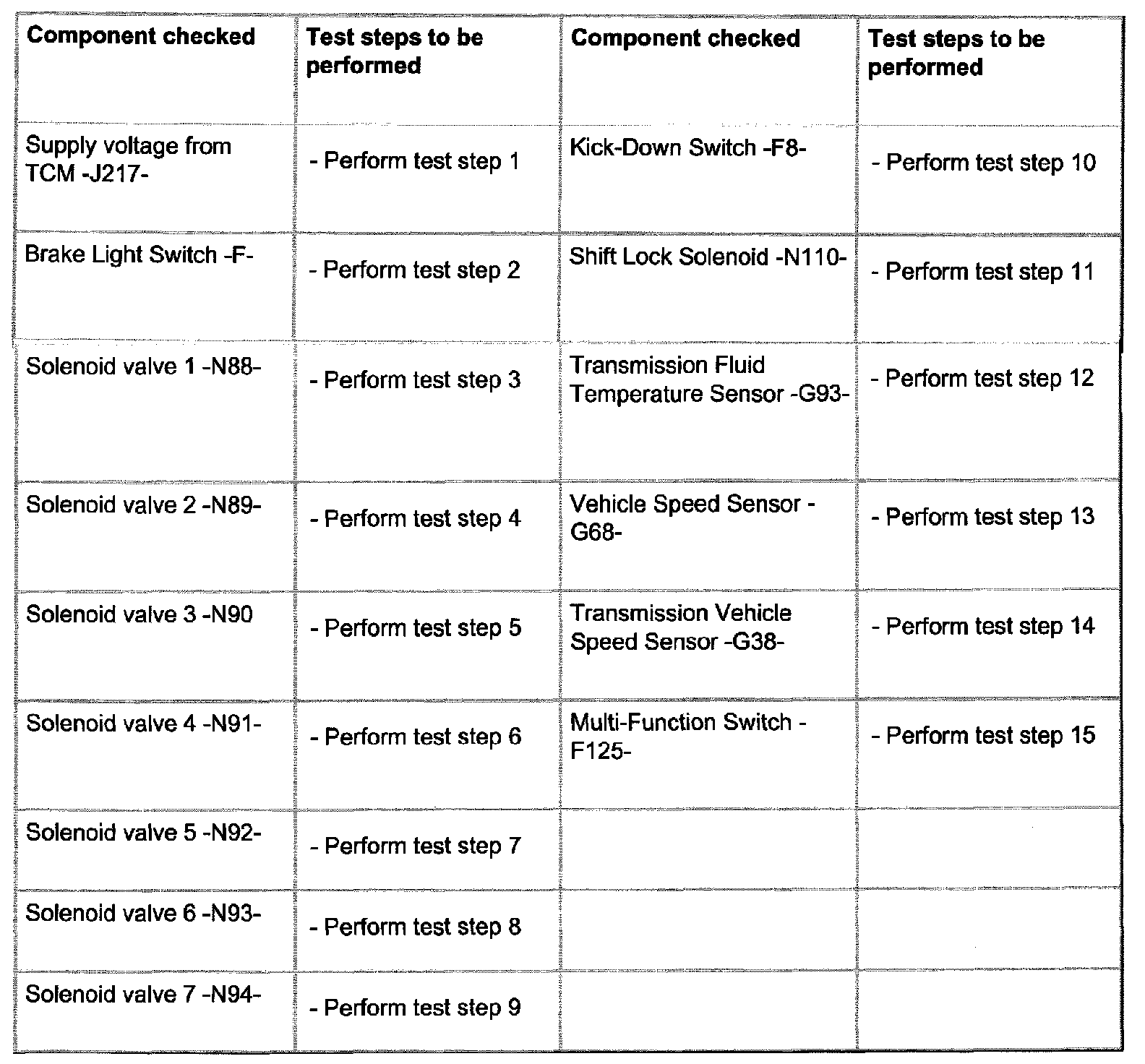

Test table

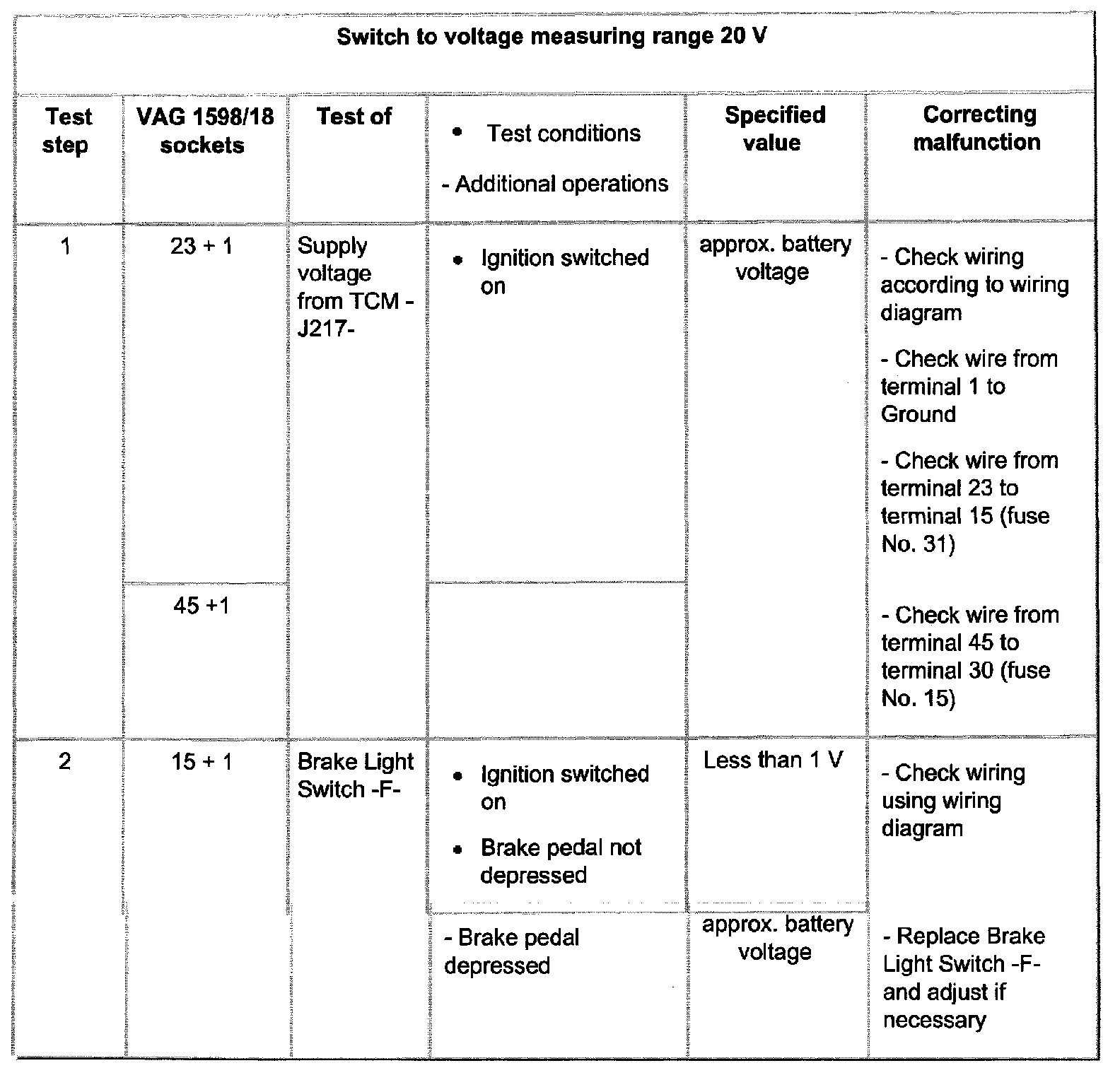

Test Step 1 - 2:

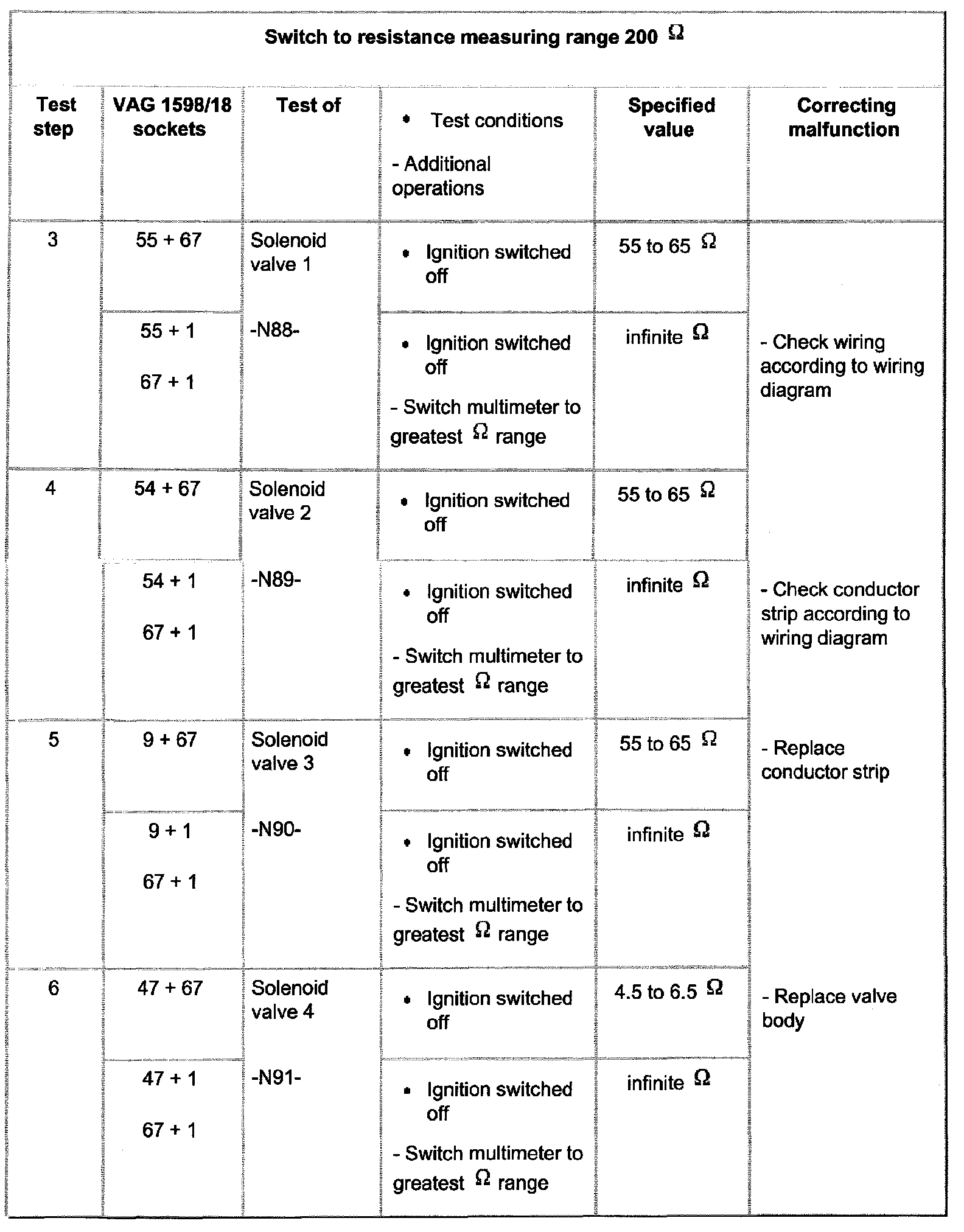

Test Step 3 - 6:






Test Sep 7 - 9:

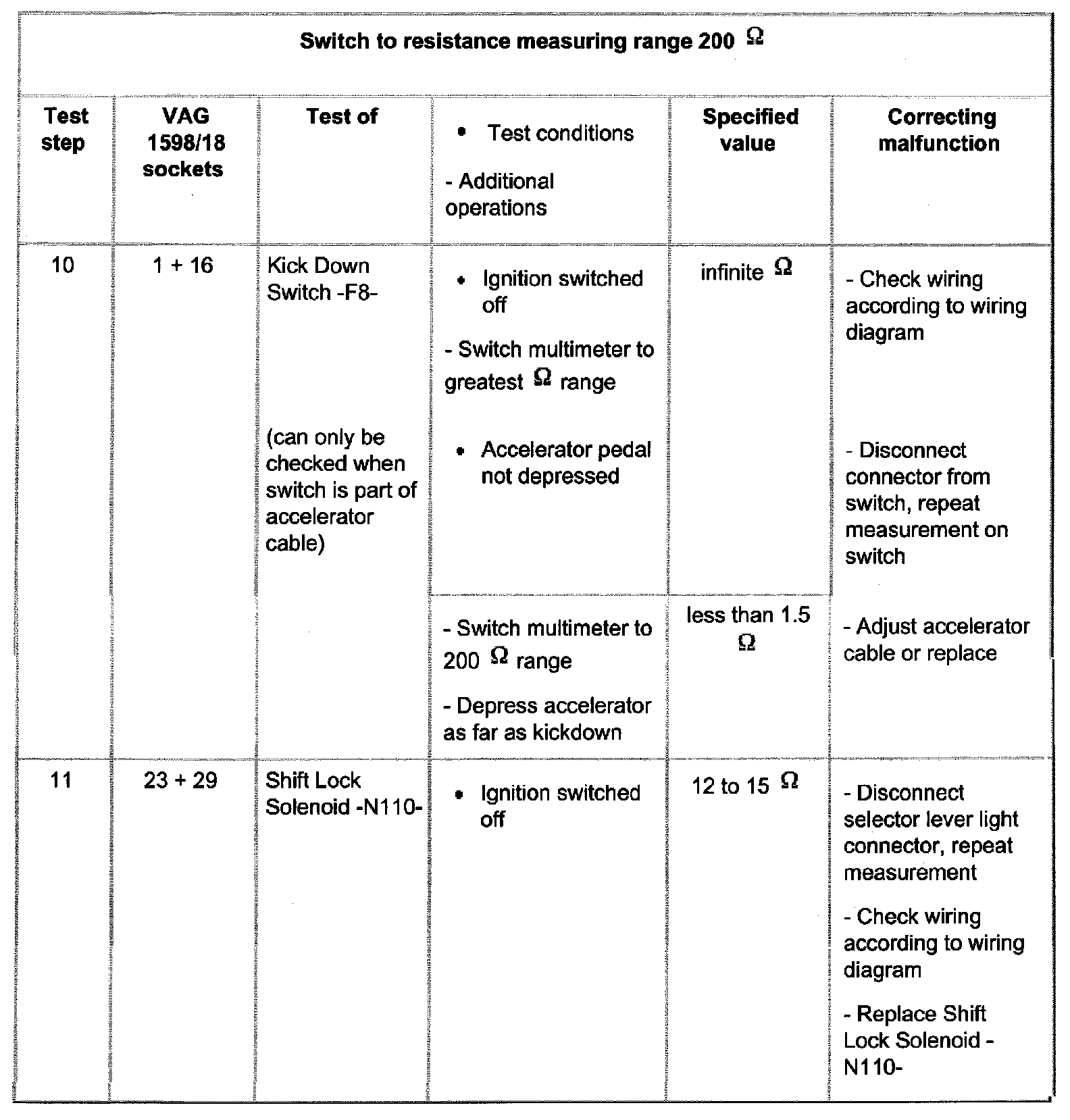

Test Step 10 - 11:

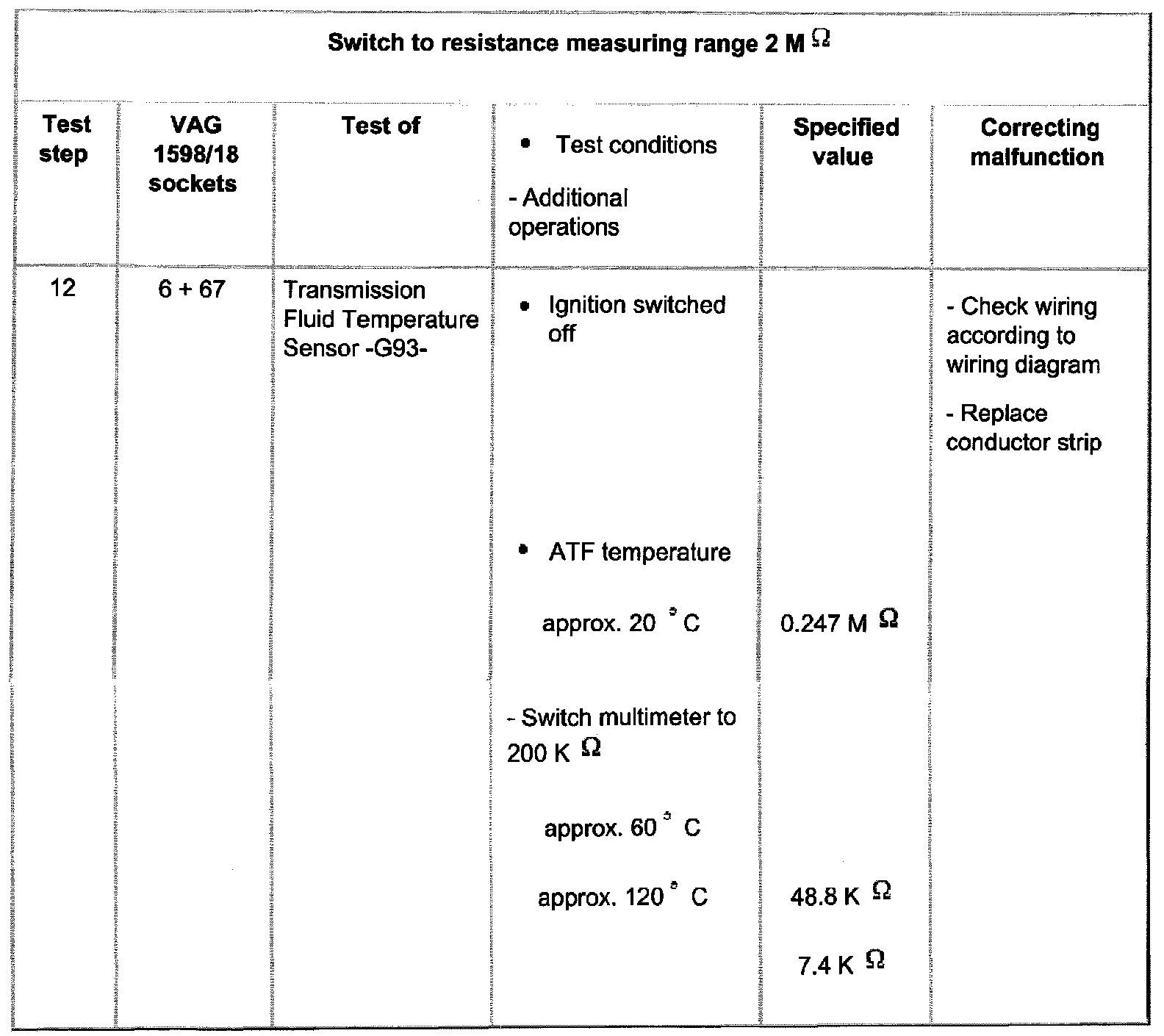

Test Step 12:

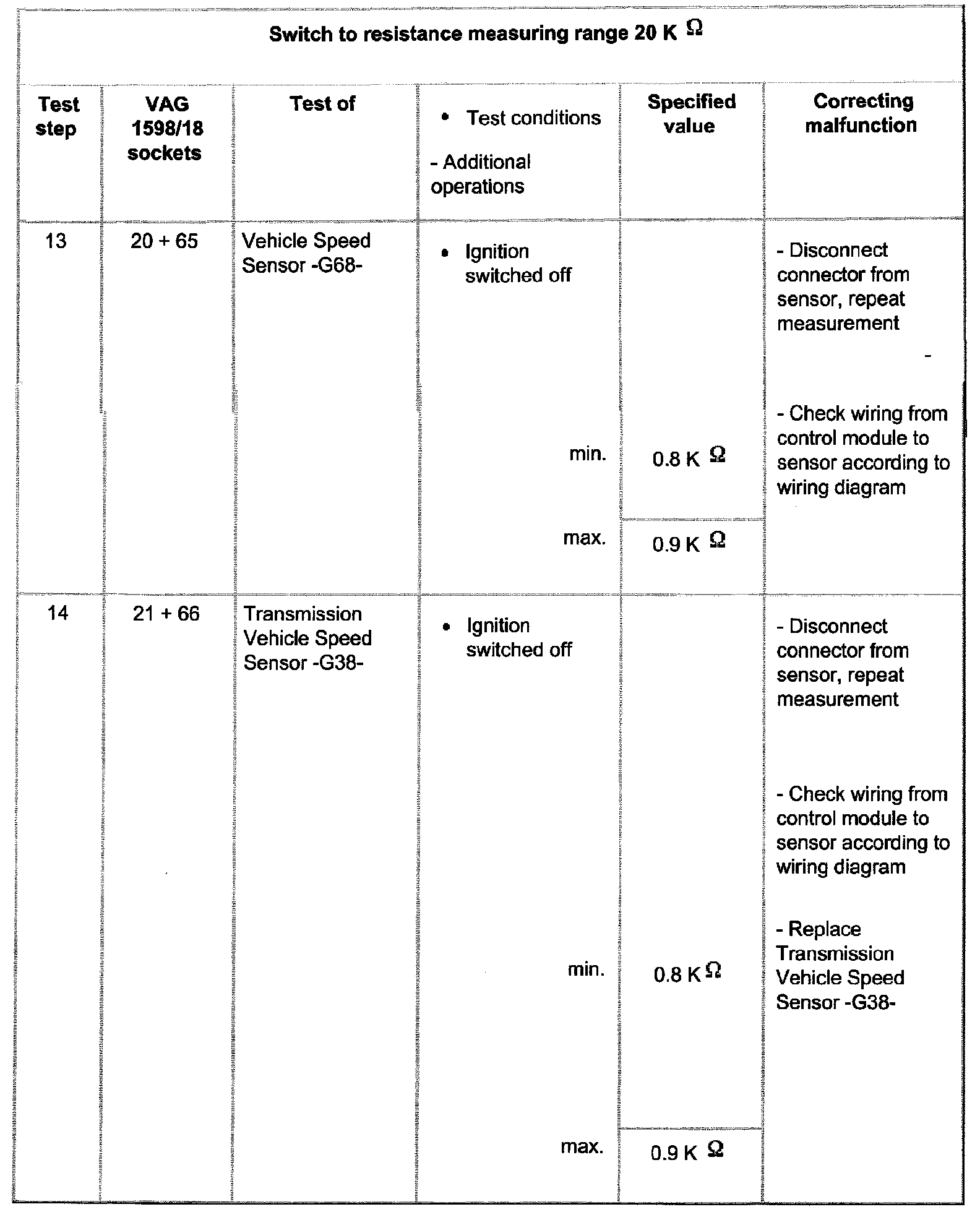

Test Step 13 - 14:






Test step 15: Multi-Function Transmission Range (TR) Switch -F125-
- Disconnect connector from multi-function TR switch.

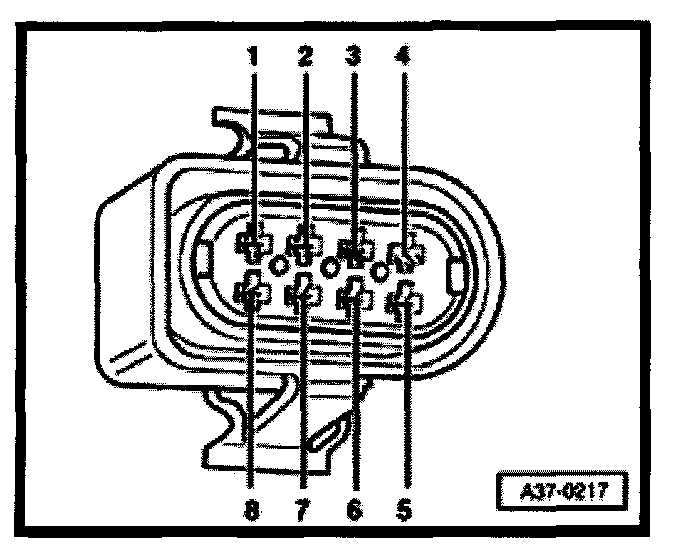

Connector pin assignment







1 - To Pin 63 of TCM connector
2 - To Pin 40 of TCM connector
3 - To pin Pin 1 of TCM connector (Ground)
4 - Vacant
5 - To Pin 18 of TCM connector
6 - To Pin 62 of TCM connector
7 - To Pin 23 of TCM connector (voltage supply terminal 15)

Checking supply voltage.
- Connect test box VAG 1598/18.
- Switch multimeter to 20 V measuring range.
- Switch ignition on.
- Measure between terminal 7 and terminal 3 (Ground) on connector disconnected from multi-function TR switch.
Specification: Battery voltage

- Measure from terminal 7 of connector to socket 1 on 1598/18 (Ground).
- Measure from socket 23 (terminal 15) on 1598/18 to socket 1 on 1598/18 (Ground).
Specification: Battery voltage

If the specifications are not obtained: Repair wiring according to the wiring diagram.
If the specifications are obtained: Check wiring further.
- Switch ignition off.
- Disconnect Park/Neutral Position (PNP) Relay - J226-.
- Set multimeter to 200 Ohms measuring range

Check the wiring between the multi-pin connector on the TCM and the connector on the multi-function TR switch.
- Measure between sockets 1 and 18 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 18 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between socket 18 on VAG 1598/18 and terminal 5 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained: Repair wiring according to the wiring diagram.
If the specifications are obtained: Check wiring further.

- Measure between sockets 1 and 63 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 63 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between socket 63 on VAG 1598/18 and terminal 1 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained: Repair wiring according to the wiring diagram.
If the specifications are obtained: Check wiring further.
- Measure between sockets 1 and 62 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 62 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between socket 62 on VAG 1598/18 and terminal 6 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained: Repair wiring according to the wiring diagram.
If the specifications are obtained: Check wiring further.
- Measure between sockets 1 and 40 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between sockets 23 and 40 on VAG 1598/18.
Specification: Infinity Ohms

- Measure between socket 40 on VAG 1598/18 and terminal 2 on connector.
Specification: Less than 1.5 Ohms

If the specifications are not obtained: Repair wiring according to the wiring diagram.
If the specifications are obtained: Replace multi-function TR switch.
- Install Park/Neutral Position (PNP) Relay -J226-.
