Reading

Measured Value Block, Reading
- Connect VAG 1551 Scan Tool and enter address word "02 Transmission electronics". Advance until "Select function XX" is indicated on display Connecting VAG 1551 Scan Tool

Indicated on display


Rapid data transfer HELP
Select function XX


- Press buttons -0- and -8- to select "Read measured value block" function 08.

Indicated on display


Rapid data transfer Q
08 - Read measured value block


- Confirm entry with -Q- button.

Indicated on display


Read measured value block
Enter display group number XXX


- Enter display group number.
- Confirm entry with -Q- button.

There are always 4 display fields in the measured value block (in actual physical quantities if necessary). Decoding the individual values in display fields 1 to 4 See Test table.


Read measured value block 1->
->1 ->2 ->3 ->4

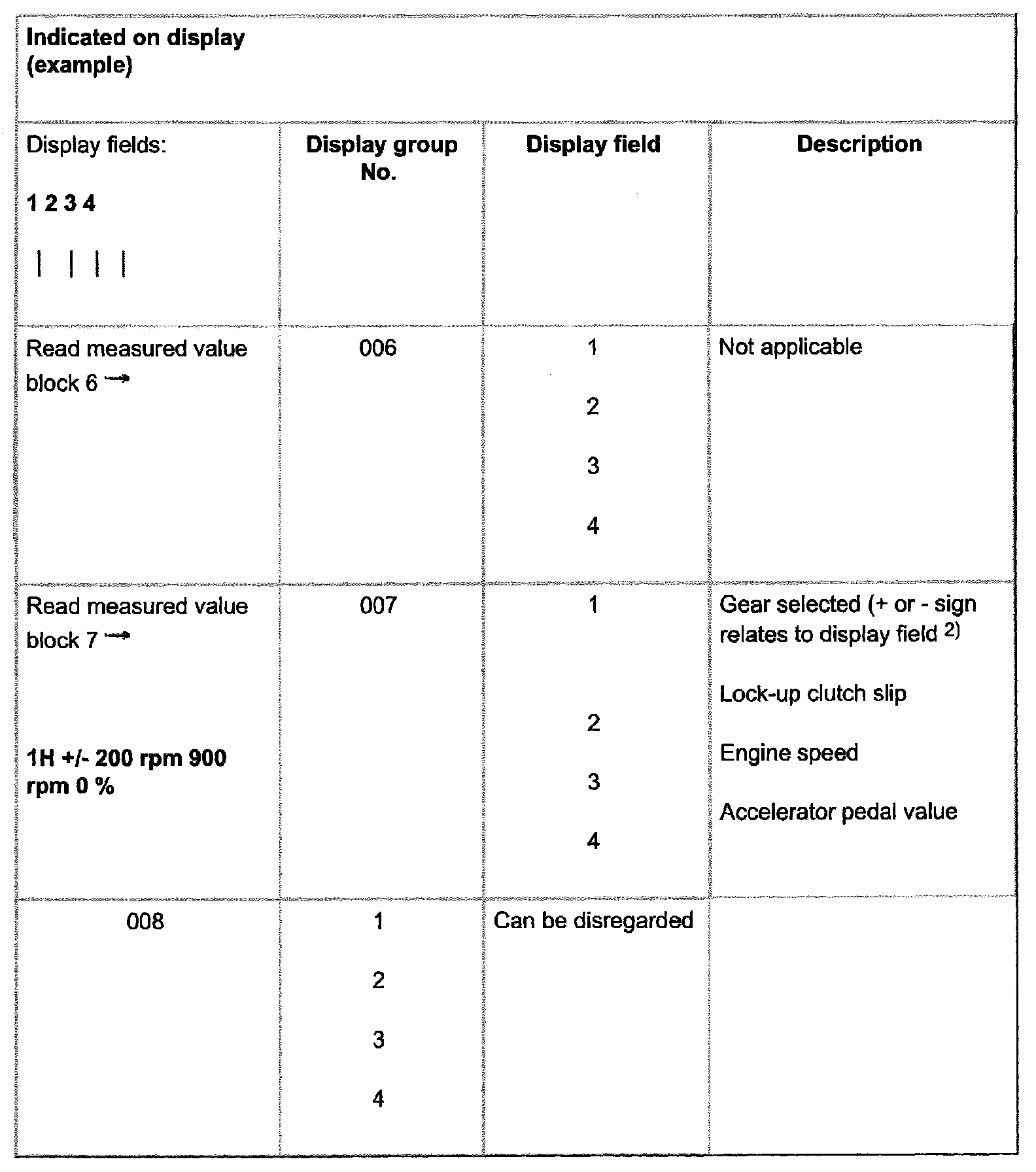

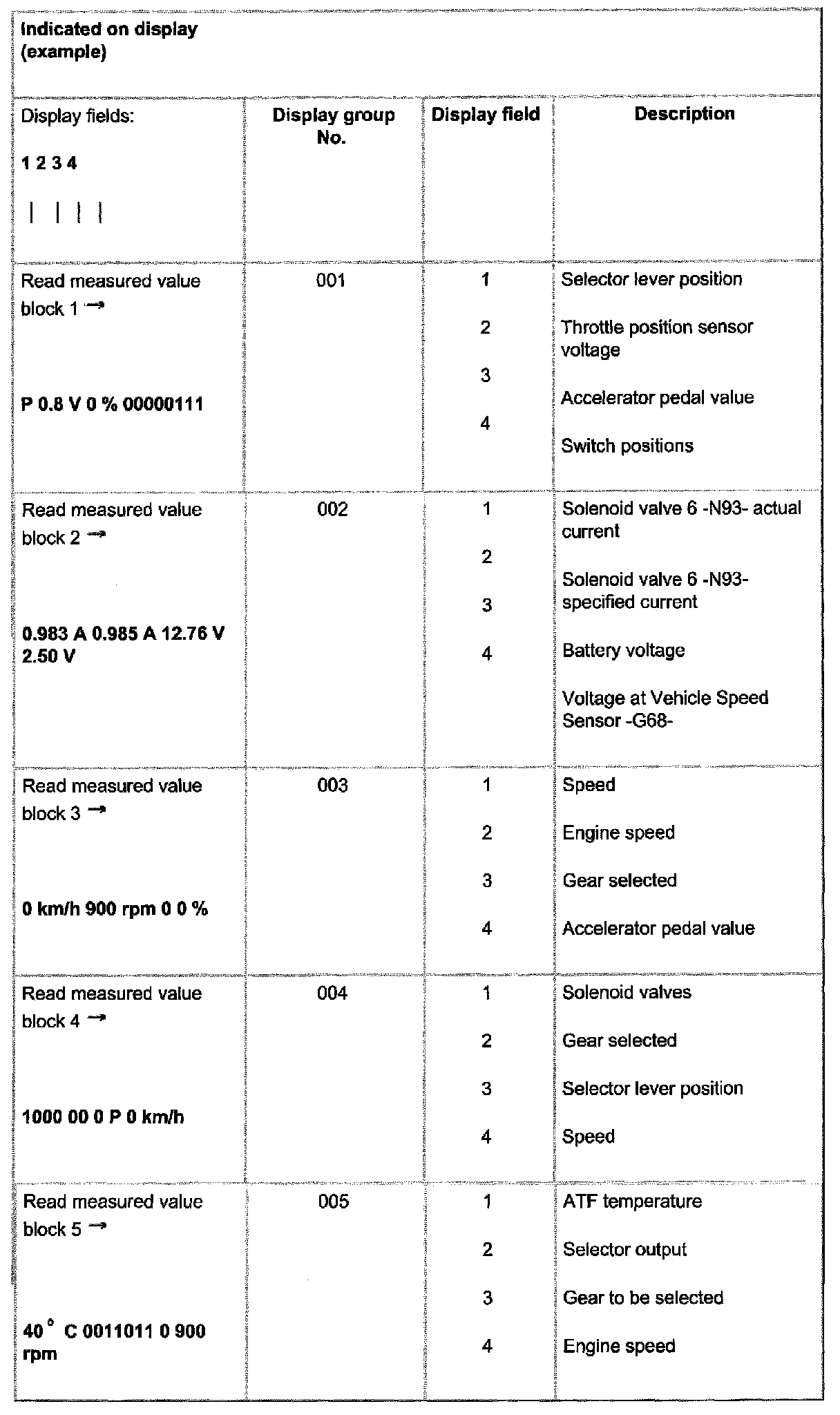

List of selectable display group numbers












NOTE:
- If the printer is switched on, the current display is printed out.
- If the specified values are reached in all the display fields:


- Press -> key.

Indicated on display


Rapid data transfer HELP
Select function XX
