Seats: Adjustments

Driver's Side Seat Adjustment, On Board Diagnostic (OBD)

Seat adjustment, function
The 8-way seat is equipped with a seat and mirror memory function.

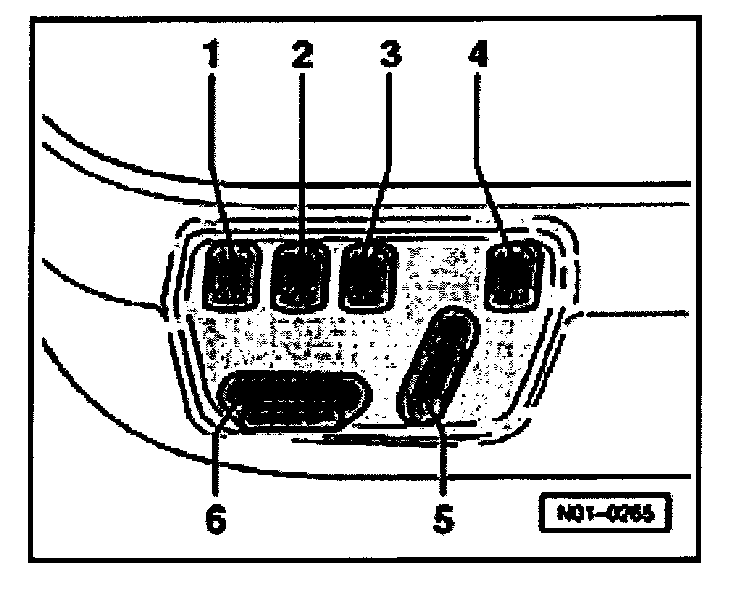

With this system individual seat and mirror adjustments can be stored in the memory. Each of the memory buttons (-1-, -2-, and -3-) can be used to store the individual settings for one person.

The seat and mirrors will move automatically into the required position by pressing the appropriate button when there is a change of driver.

In the driver's seat adjustment, the position of the exterior mirrors (left and right) when driving forward and the position of the right exterior mirror for reversing can be stored and recalled for each memory button (-1-, -2-, and -3-)

The adjustments stored on a memory button can also be called up using the key for the radio frequency remote control.

The memory system can be turned off at any time using the red switch -4- (MEM OFF). The seat and the exterior mirrors can then only be set manually with switches -5- and -6-.
