Parking Assist Control Module
Parking aid from February 2001 IMPORTANT NOTEThis manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions.

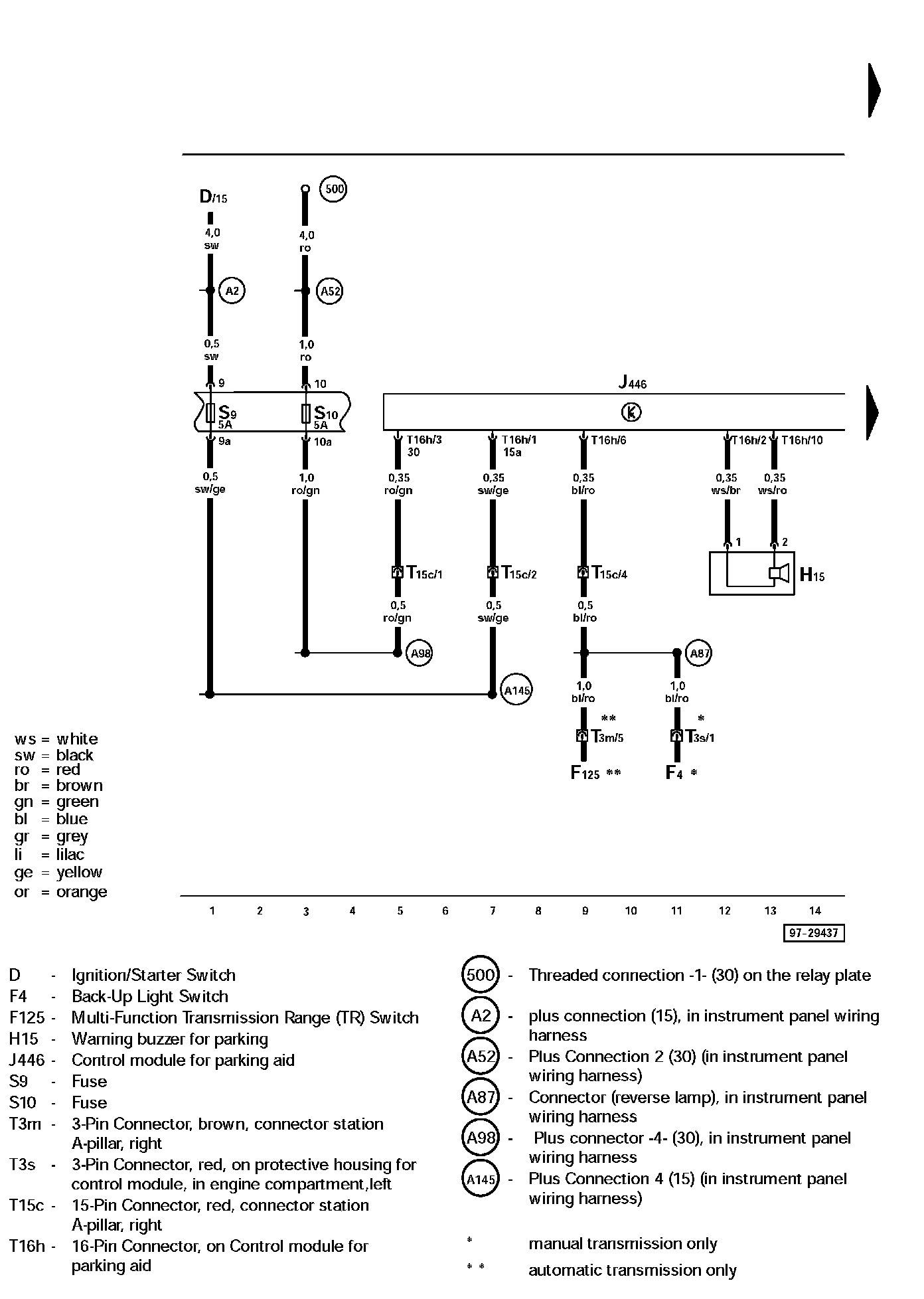

Diagram Information and InstructionsTrack 1-14:

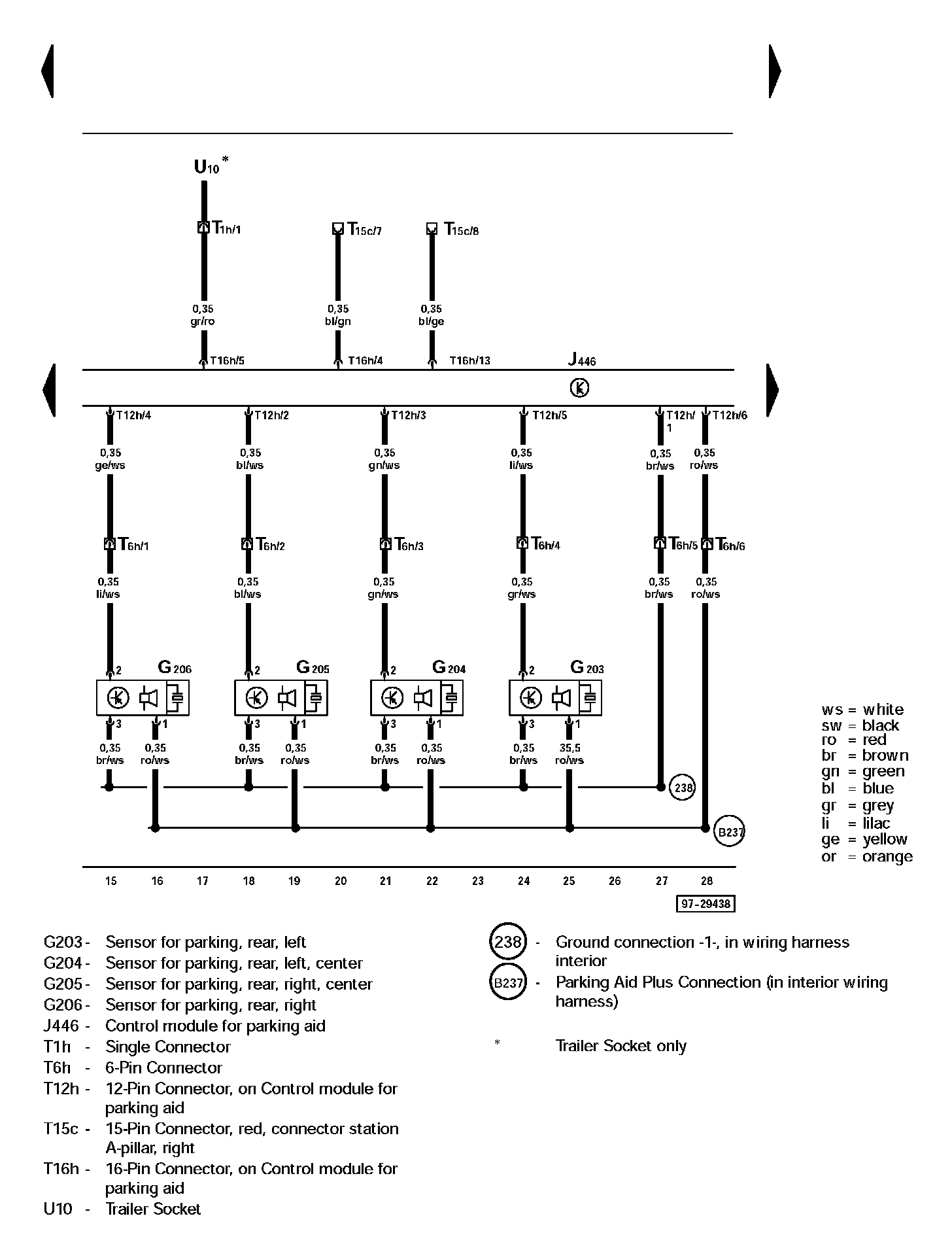

Track 15-28:

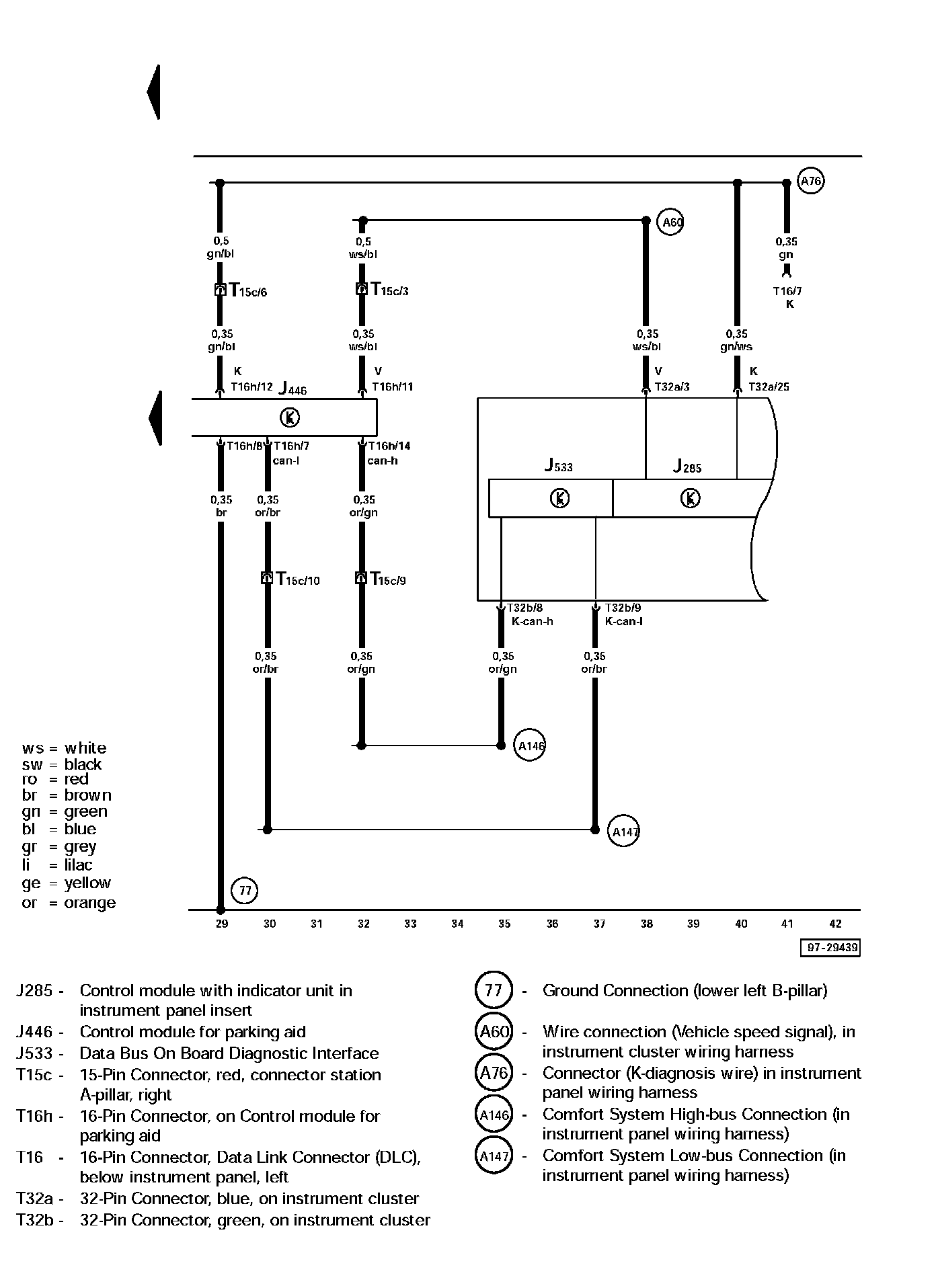

Track 29-42:
