Passenger Seats
Passenger Seats
Swivel seats, removing
Multivan from 04.99
NOTE:
- Close ashtrays, storage compartments and cup holders in the passenger compartment.
- Lower folding table.

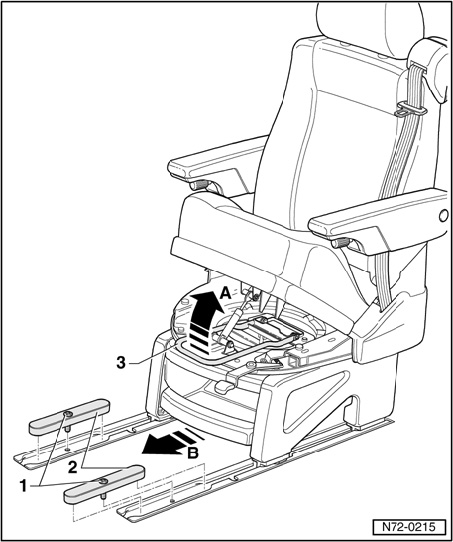

- Remove screws - 1 - and remove stops - 2 -.
- Lift up seat cushion.
- Pull lever - 3 - up - arrow A - and push swivel seat toward rear until stop - arrow B -.
- Lift up seat from seat rails.

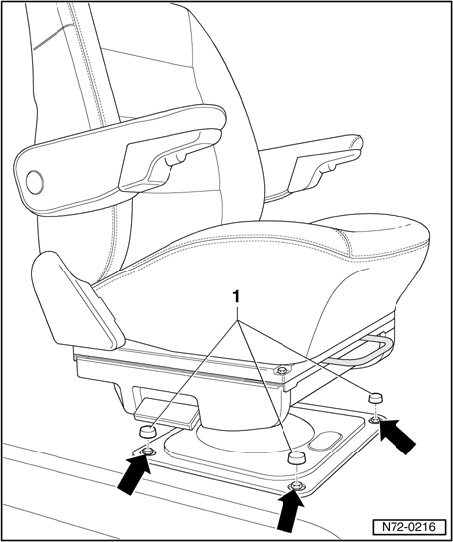

Caravelle with leather interior
- Remove 4 caps - 1 -.
- Remove 4 bolts - 44 Nm (32 ft lb) - arrows -.
- Remove seat.
