Propane Gas Tank, Removing and Installing



Propane Gas Tank, Removing And Installing

Removing

WARNING: Fire hazard! Do not smoke or have anything in area that could ignite propane fuel. Ensure adequate ventilation.

CAUTION: Note safety measures.

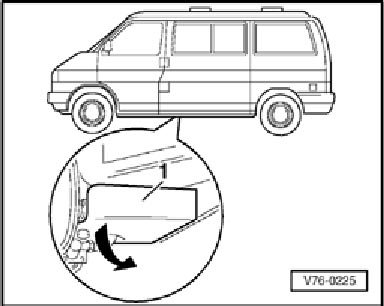

- Open cover underneath left side center floor plate.

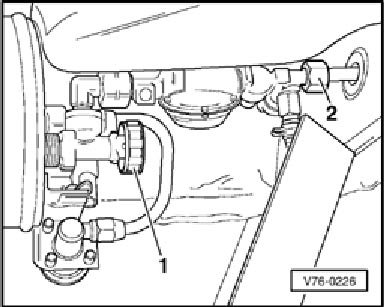

- Close bleeder valve - 1 -.
- Disconnect union - 2 -.

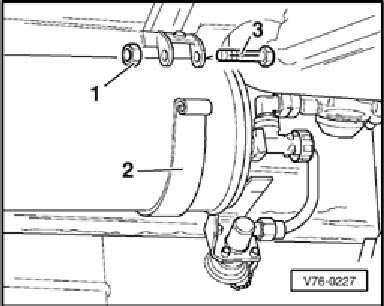

- Remove two hex nuts - 1 -.
- Release tension on retaining straps - 2 - by rotating hex bolts - 3 -.
- Pull out hex bolts - 3 -.

Installing
- Install in reverse sequence.

CAUTION: Note safety measures.
