Sound Dampening Pan, Components

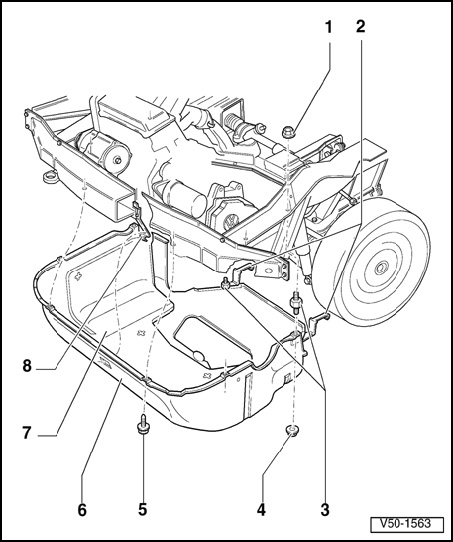

Sound Dampening Pan, Components Assembly Overview

1 - Hex nut
- 9 Nm

2 - Bracket
3 - Damping element
4 - Hex nut
- 9 Nm

5 - Bolt
- 9 Nm up to 08.93
- 19 Nm from 09.93

6 - Dampening pan
- Removing
- Remove two hex nuts - 4 - and six bolts - 5 -.
- Release locking lever - 8 -, swing down dampening pan and unhook at brackets - 2 -.

7 - Damping material
- Replacing

8 - Locking hook
