Terminal Identification

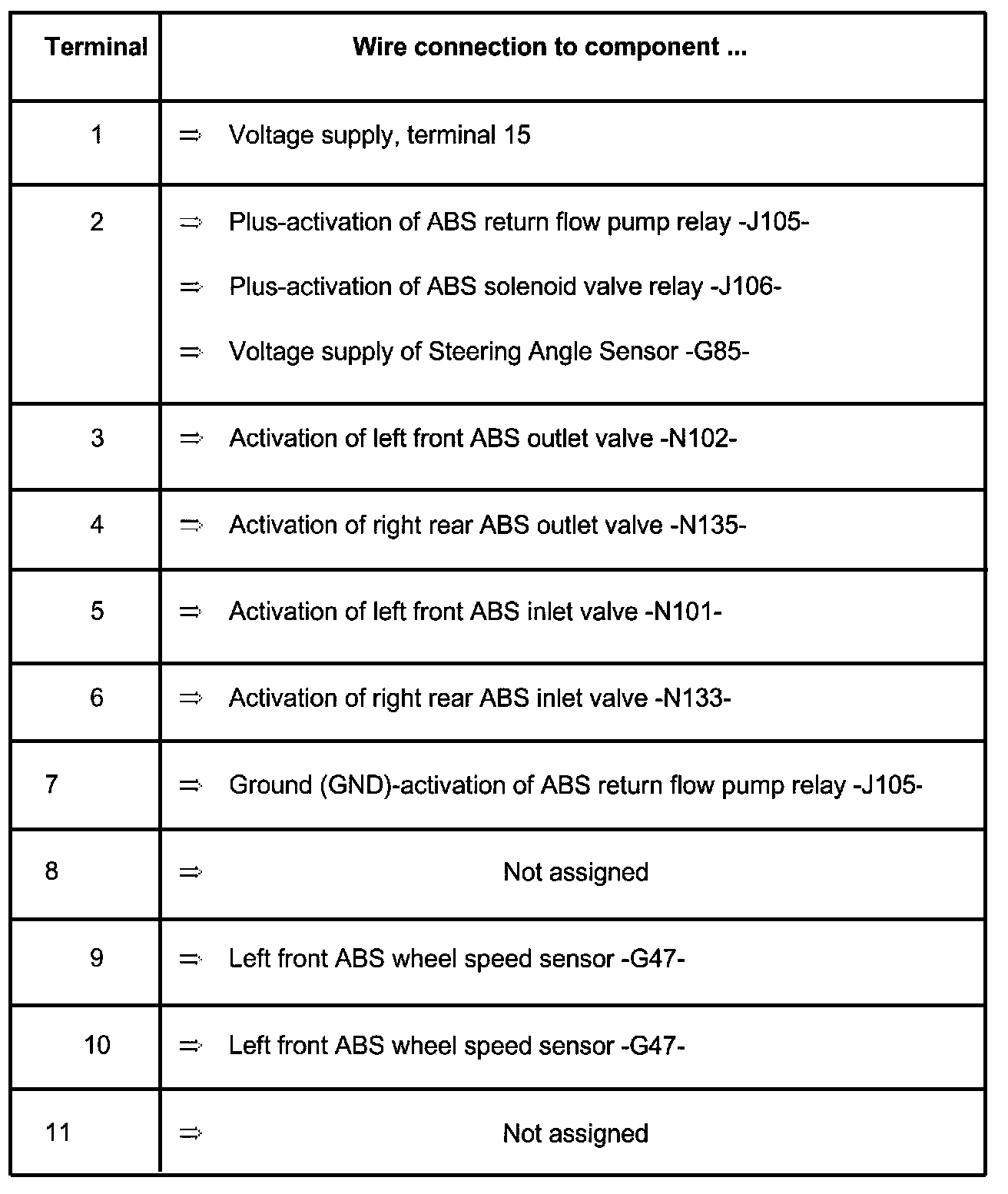

Terminals 1 - 11





Terminals 12 - 14





Terminals 15 - 20





Terminals 21 - 28





Terminals 29 - 40





Terminals 41 - 42





Terminals 43 - 50





Terminals 51 - 59

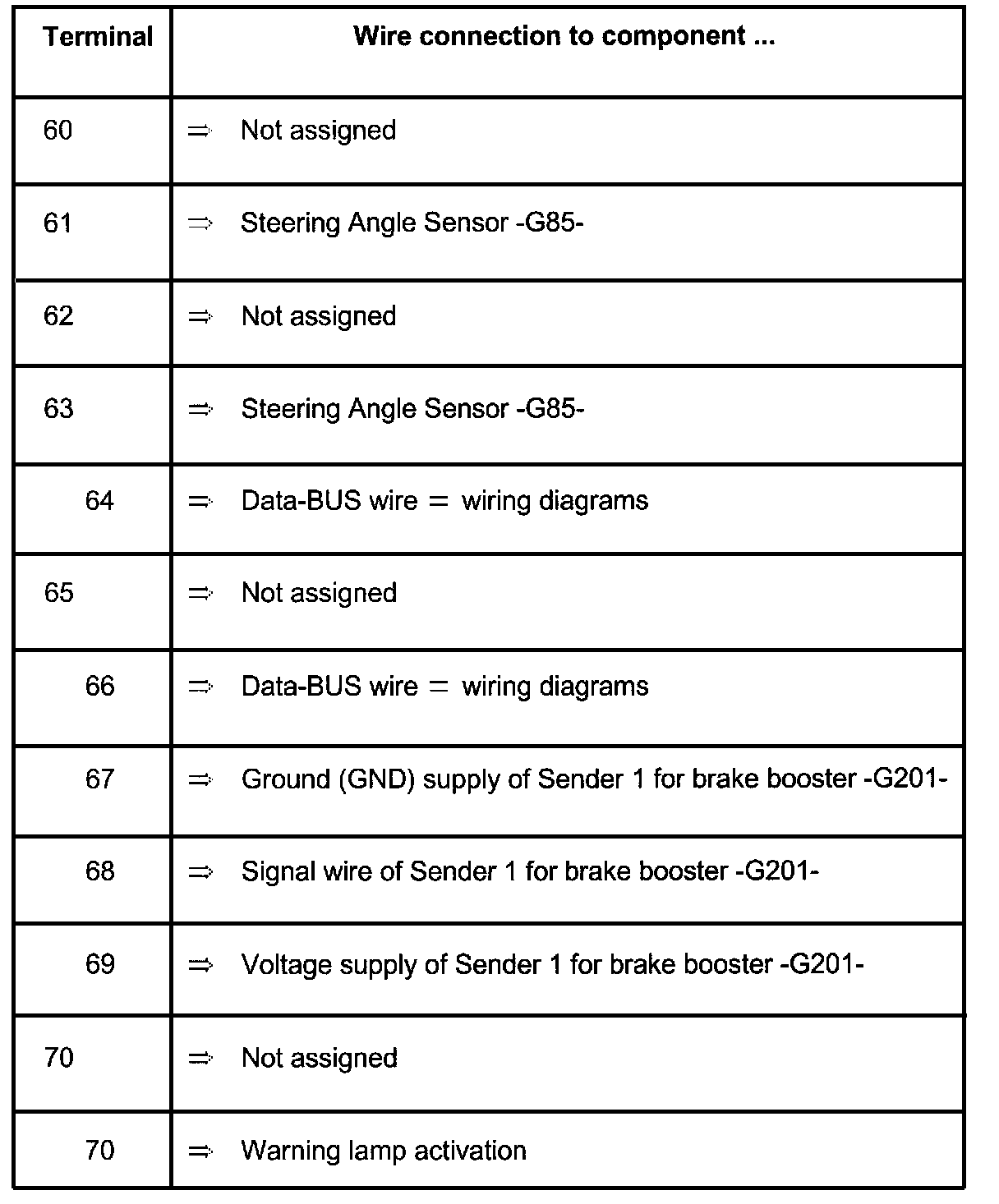

Terminals 60 - 70





Terminals 35 and 72 - 74





Terminals 75 - 80





Terminals 81 - 88

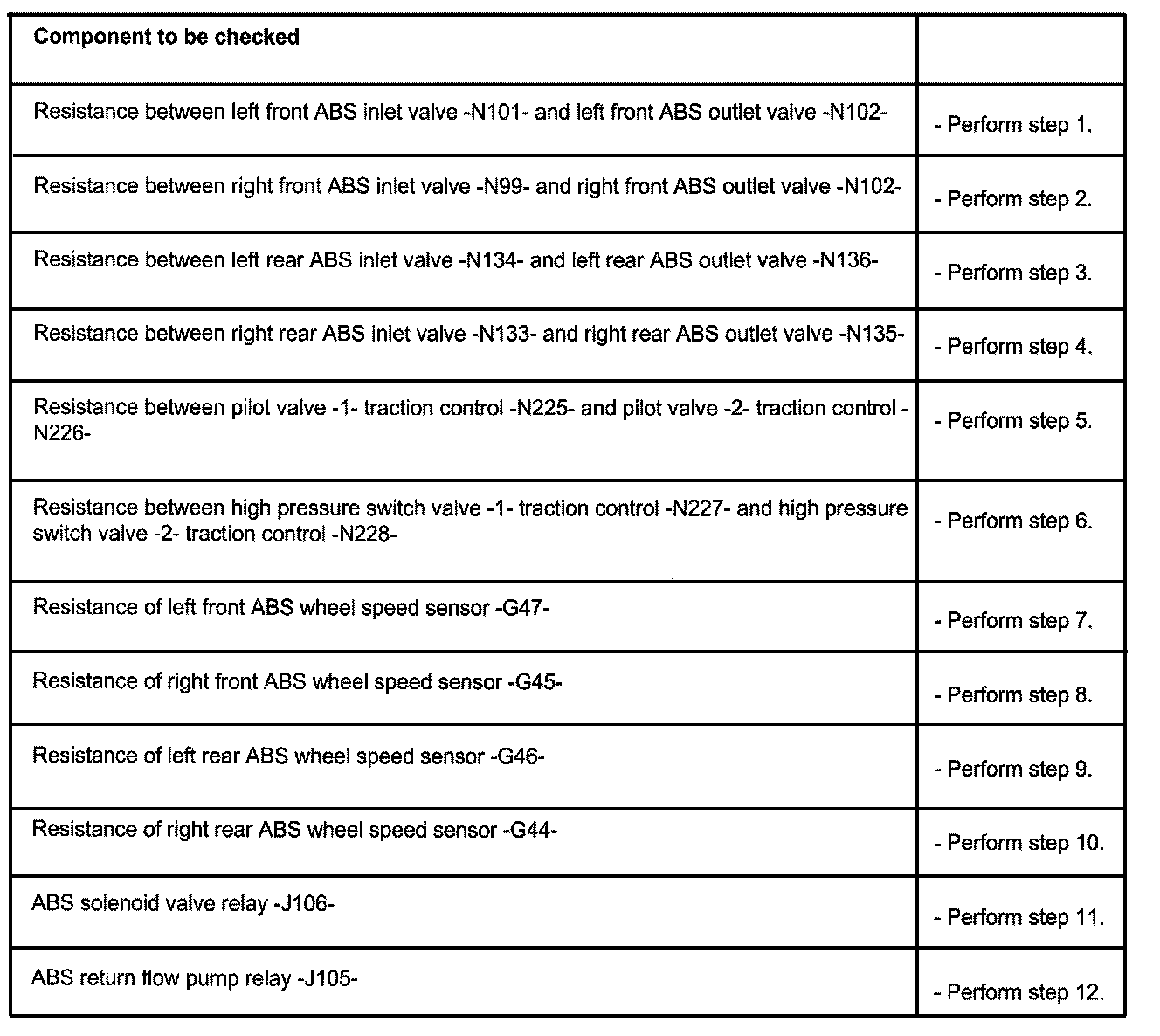

Overview of test steps





Steps 1 - 12





Steps 13 - 14





Steps 15 - 22





Steps 23 - 26
