Vacuum Vent Valve: Service and Repair

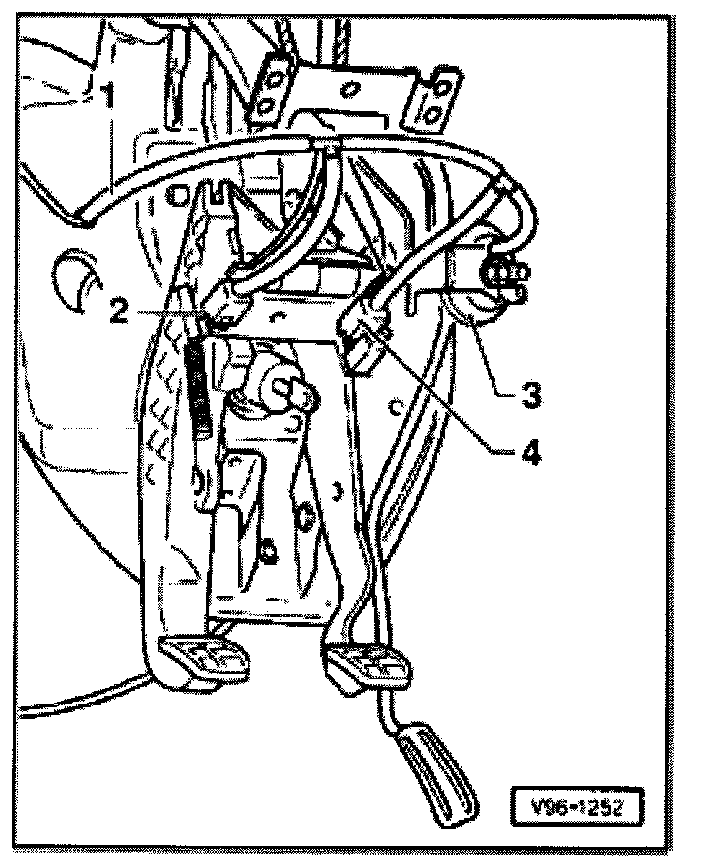

Vent Valves, Removing And Installing 1
-
Vacuum hose
2
-
Vent valve on clutch pedal
3
-
Positioning element
4
-
Vent valve on brake pedal
Removing: -
Pull connector and vacuum hose off
-
Remove vent valve from bracket
Installing: -
Screw vent valve into bracket onto stop. When doing this the pedal must be pulled fully to the rear.
