Automatically Shifted Manual Transmission/Transaxle
Motronic Multiport Fuel Injection (MFI)/150 kW - from December 2000IMPORTANT NOTEThis manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions.

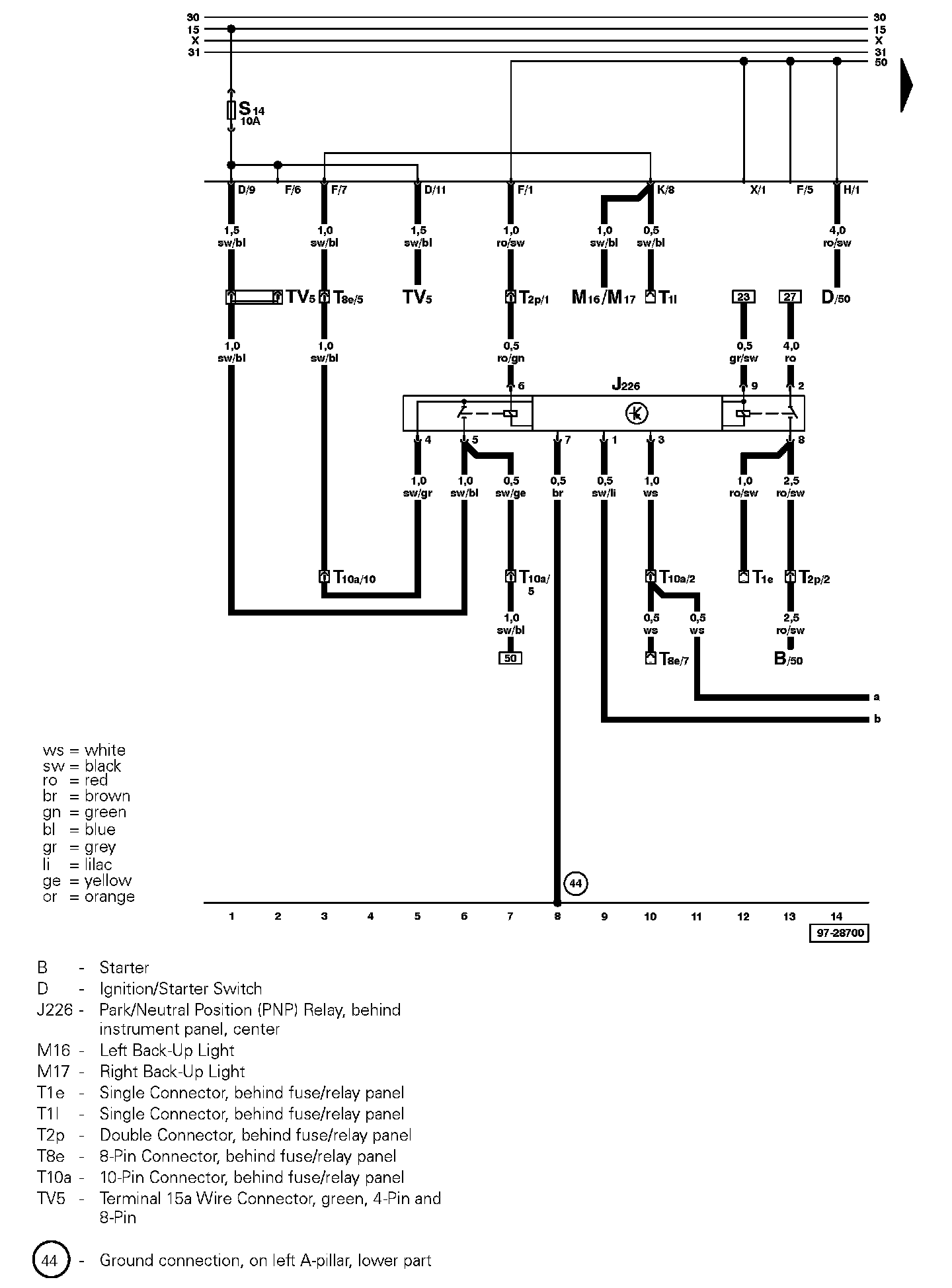

Diagram Information and InstructionsTrack 1-14:

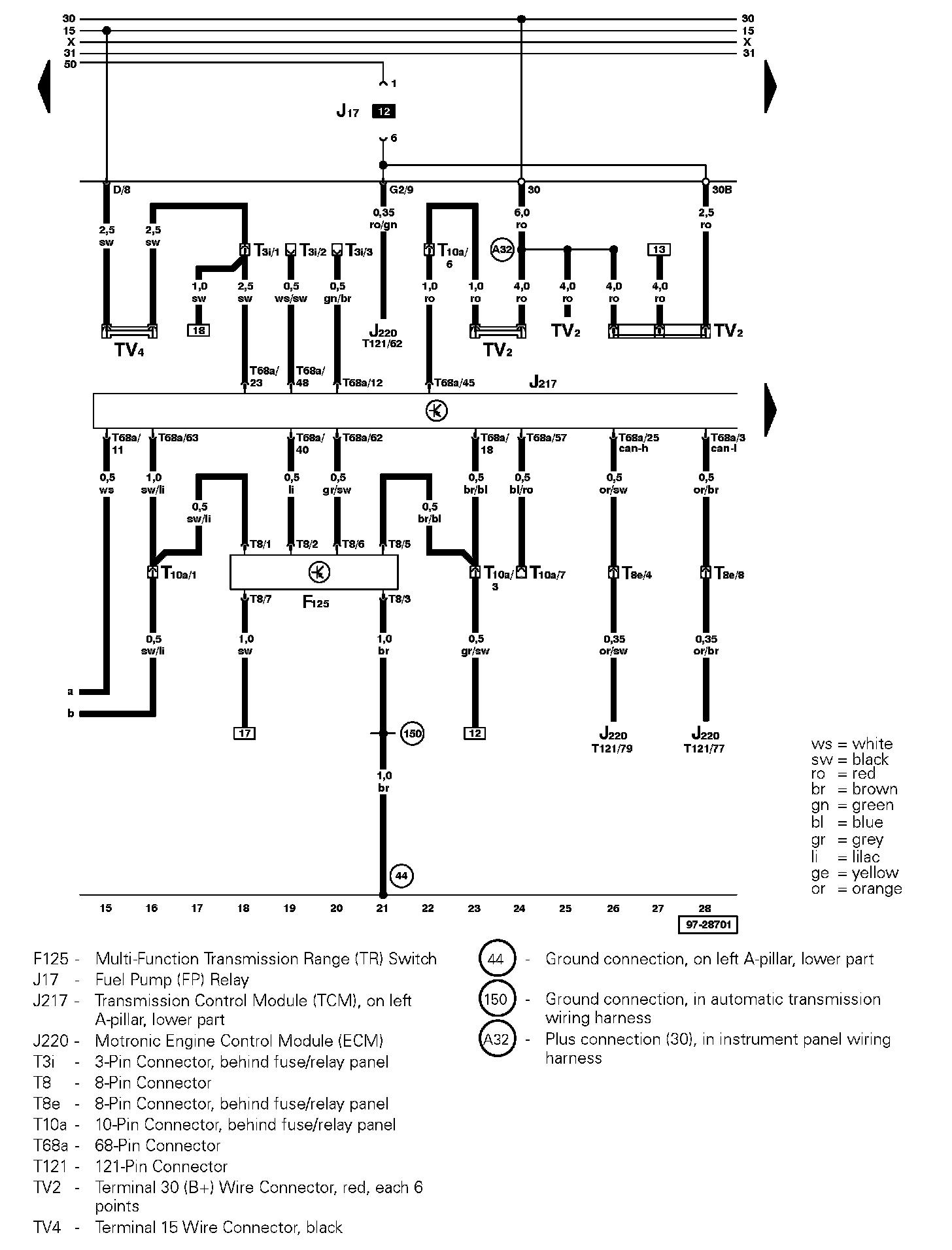

Track 15-28:

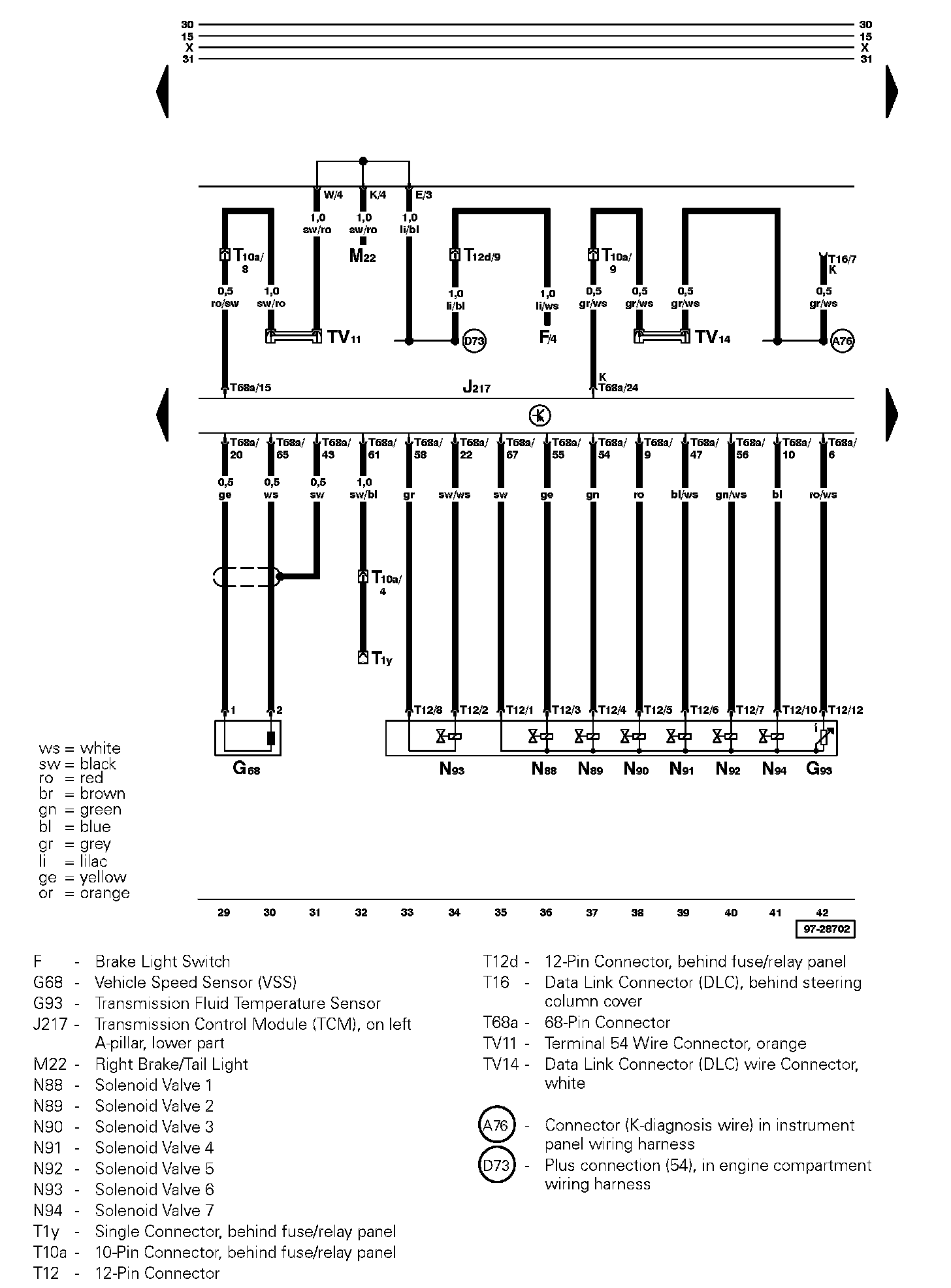

Track 29-42:

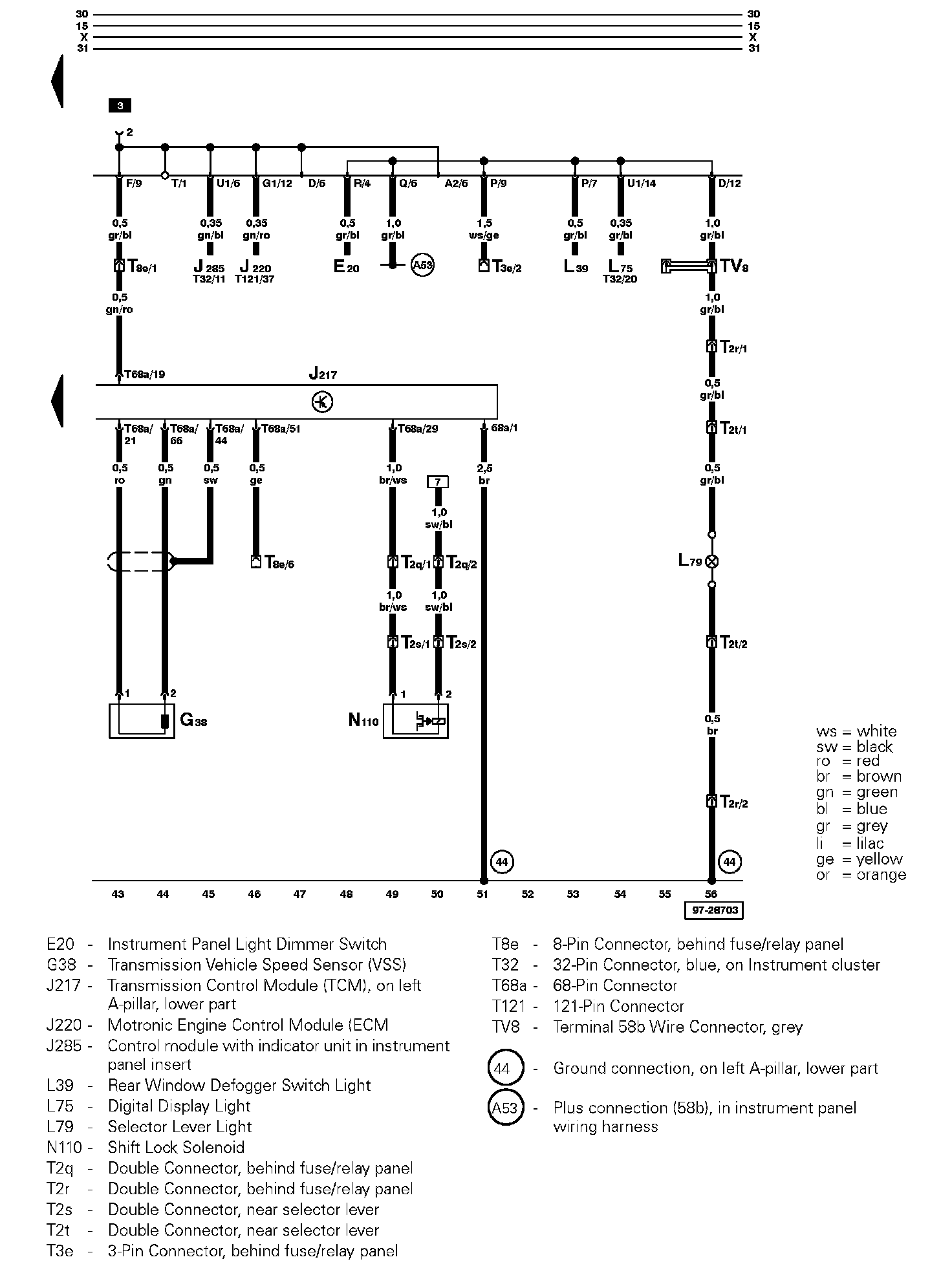

Track 43-56:
