Piston: Testing and Inspection

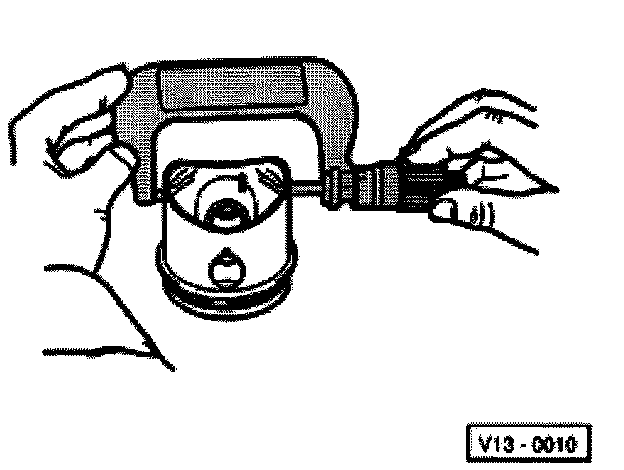

Pistons and connecting rods, disassembling and assemblingChecking pistons-
Special tools and equipment -
External micrometer
75-100 mm Measure approximately
6 mm from bottom edge, offset by
90 ° to
piston pin axis.
Deviation from nominal dimension max.
0.04 mm
