Control Housing, Disassembling and Assembling

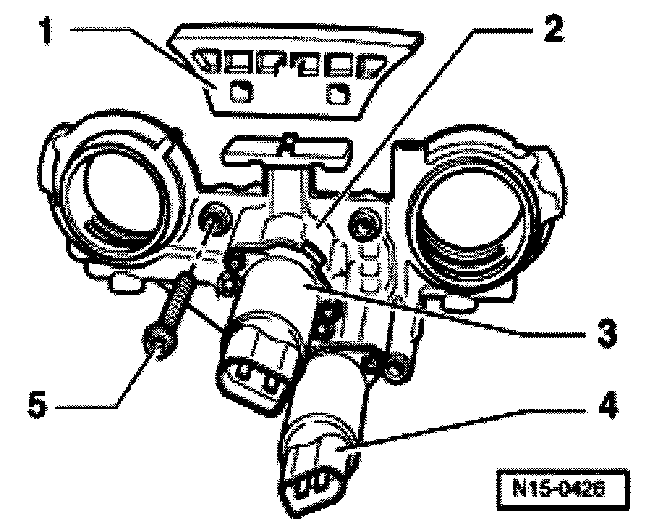

Control housing, disassembling and assembling 1.
Glide track clipped in at control housing
2.
Control housing
3.
Valve -1- for
camshaft adjustment - N205- on intake side
4.
Valve -2- for
camshaft adjustment - N208- on exhaust side
5.
Bolt: Tighten to
8 Nm
