Cabin Air Filter / Purifier: Service and Repair

Heating and Ventilation System Servicing (Rear)

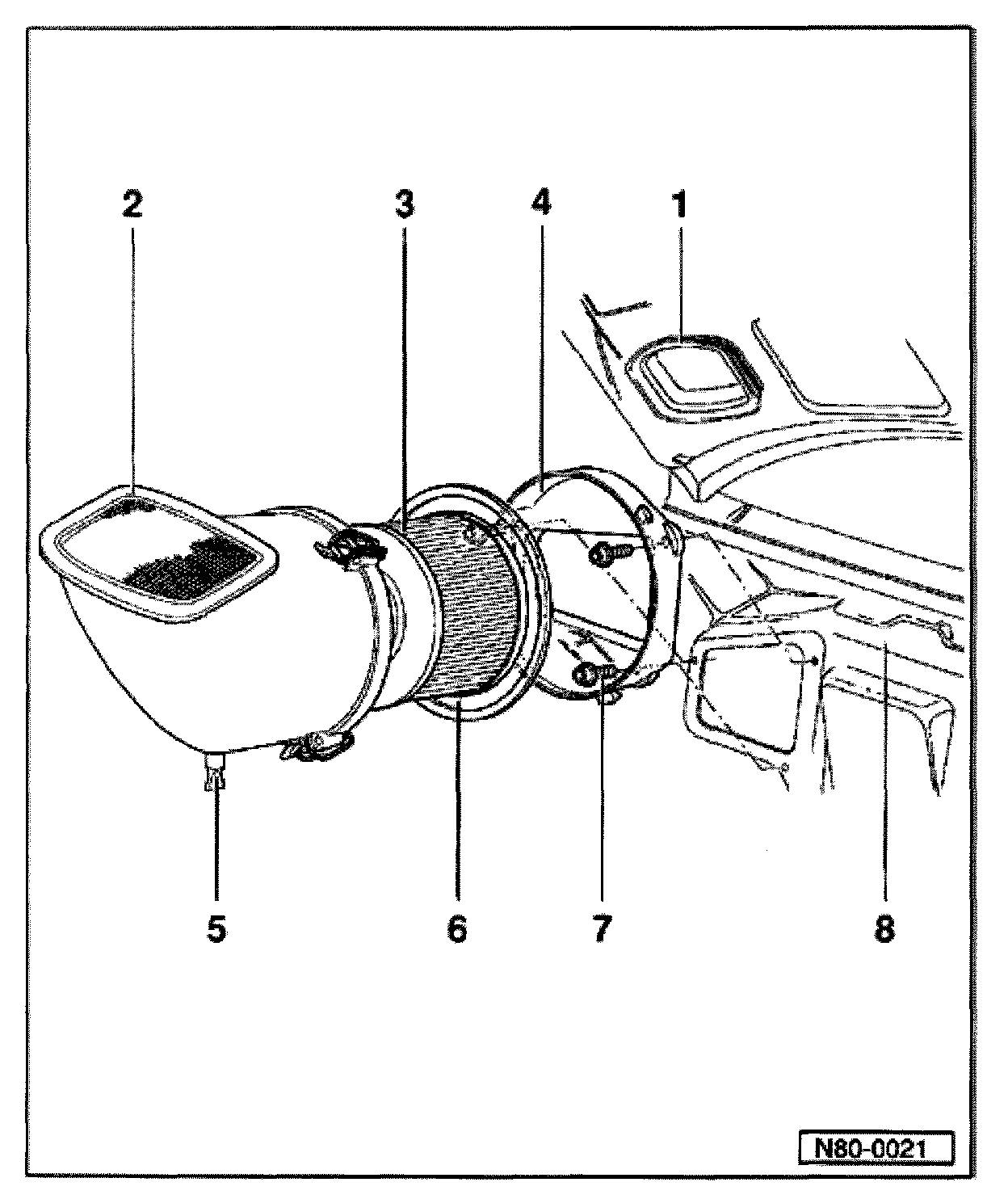

Dust And Pollen Filter, Removing And Installing

1 Hood seal

2 Filter housing

3 Dust and pollen filter

4 Air intake duct

5 Valve
Filter retainer

6 Hex bolt
3 Nm (26 in. lb)

7 Bulkhead
