Ribbed-Belt Pulley, Removing
Ribbed-belt pulley, removing -
Remove circlip, key 3.
-
Use locally available two-arm puller with
100 mm span depth (E.g.: Kukko 20-10 or equivalent).
-

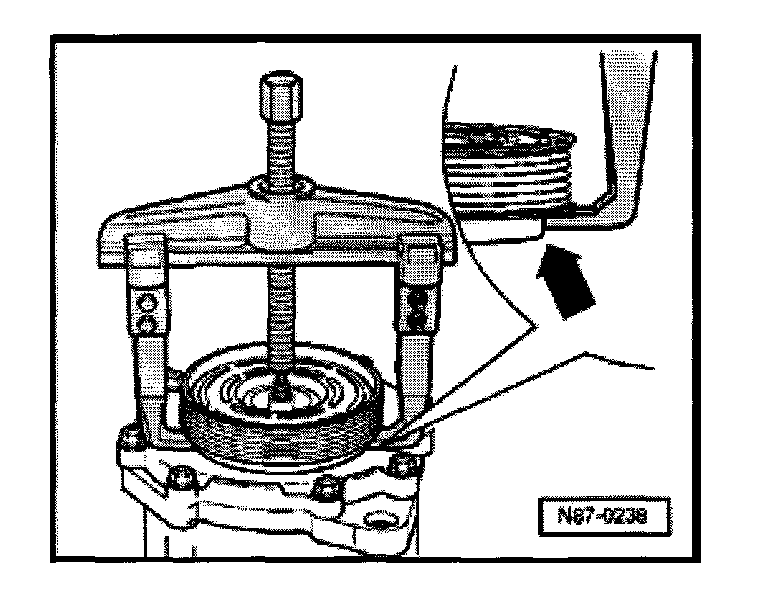

Place puller arm under pulley as illustrated -arrow-.
CAUTION!Place puller arms under pulley only far enough so as to not damage clutch coil upon removal
