Separate Condenser and Receiver Drier Removing and Installing

A/C System Servicing

Condenser (Separate Condenser And Receiver Drier), Removing And Installing


CAUTION! Before beginning repairs on the electrical system:

- Obtain the anti-theft radio security code.
- Switch the ignition off
- Disconnect the battery Ground (GND) strap
- After reconnecting battery, recode and check operation of anti-theft radio. Also check operation of clock and power windows according to Repair Manual and/or Owner's Manual

NOTE:
- Before proceeding with A/C refrigerant system servicing, always review safety measures.
- Discharge and evacuate A/C refrigerant system with kent More ACR4 or equivalent
- All opened refrigerant system components must be sealed against moisture and dirt contamination by appropriate sealing caps.

First do the following:

- Discharge A/C refrigerant system
- Disconnect refrigerant lines -1- at condenser and seal.
- Remove radiator grille(s)
- Loosen and tilt lock carrier assembly forward

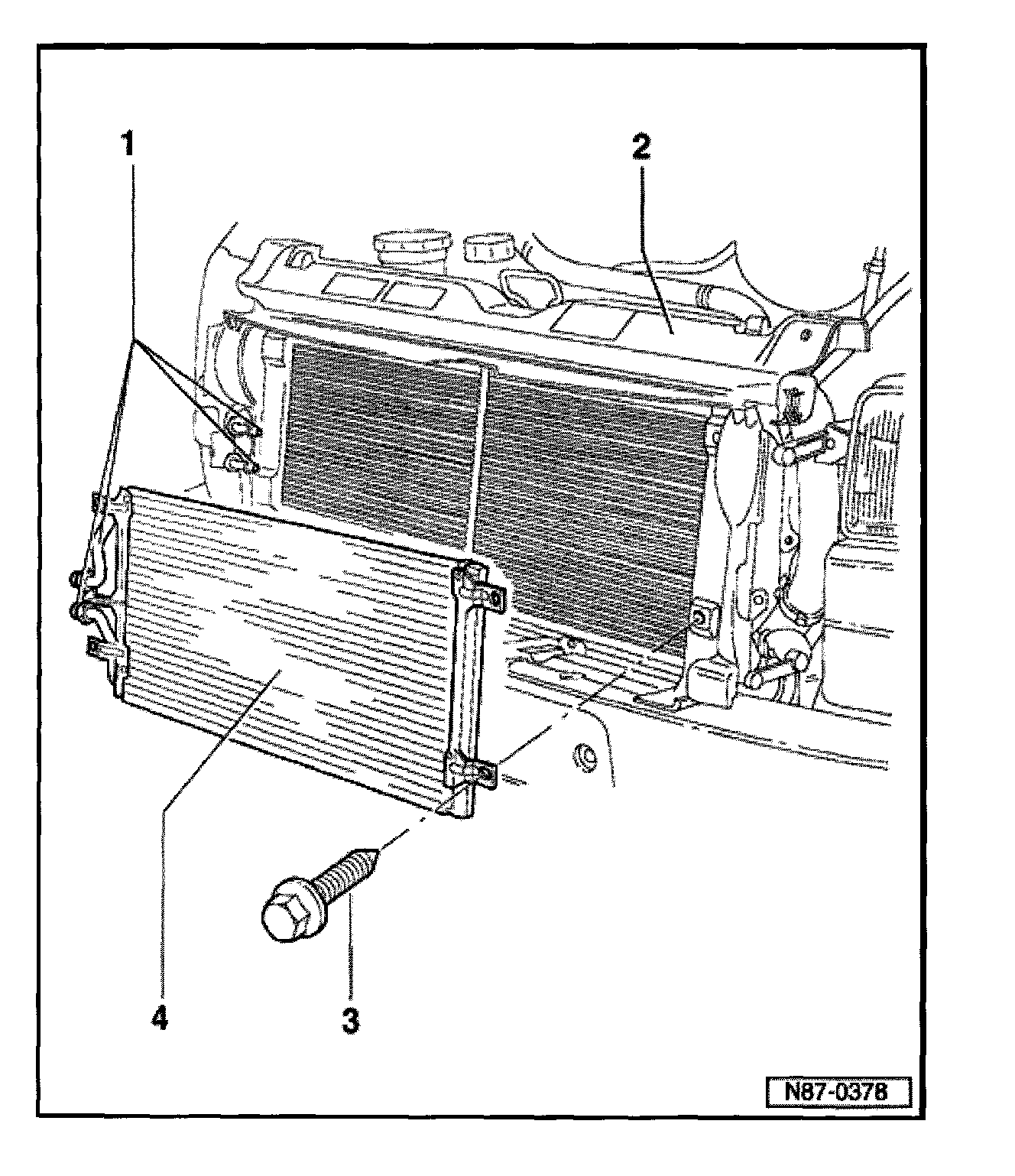

1 - Refrigerant lines
2 - Lock carrier
3 - Threaded screws
- Tightening torque: 8 Nm
- Qty: 4
4 - Condenser
