Heating Unit, Removing




Heating Unit, Removing

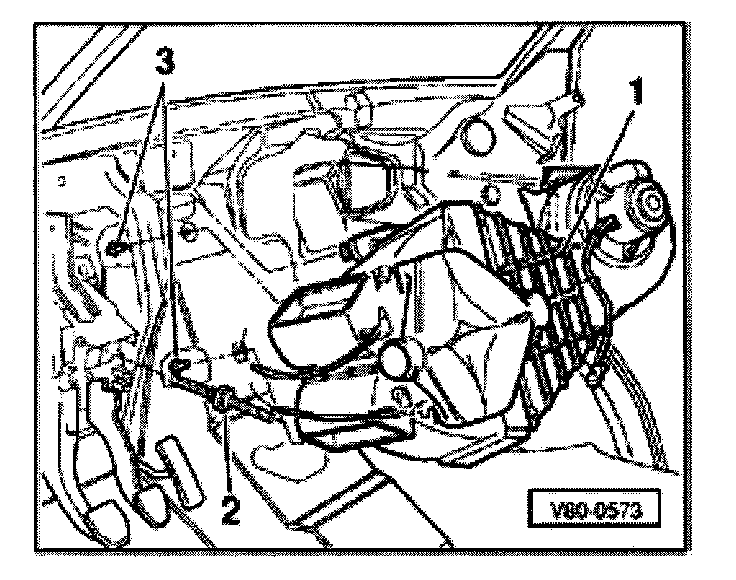

Heating unit removal shown with instrument panel removed.







1 - Heating unit
2 - Rubber grommet
3 - Combination screw


WARNING!
Cooling system is pressurized when engine is warm. Before performing repairs, wear gloves, goggles and other appropriate protection while slowly and carefully releasing system pressure.


Removing:
- Remove dust and pollen filter
- Remove air intake duct (on bulkhead)
- Clamp coolant (heater) hoses near bulkhead.
- Remove right air duct.
- Remove complete instrument panel, passenger side airbag and associated trim
- Remove bolts -3-.


NOTE: Lower bolt is located on bulkhead under engine compartment cladding.


- Remove coolant hoses from heater core and plug heater core connections.
- Remove heater unit.
