Cables, Installing and Adjusting

Heating & A/C Cables, Installing And Adjusting


NOTE:
- Attach cables first before installing controls.
- Place outer cable against stops on controls and secure.

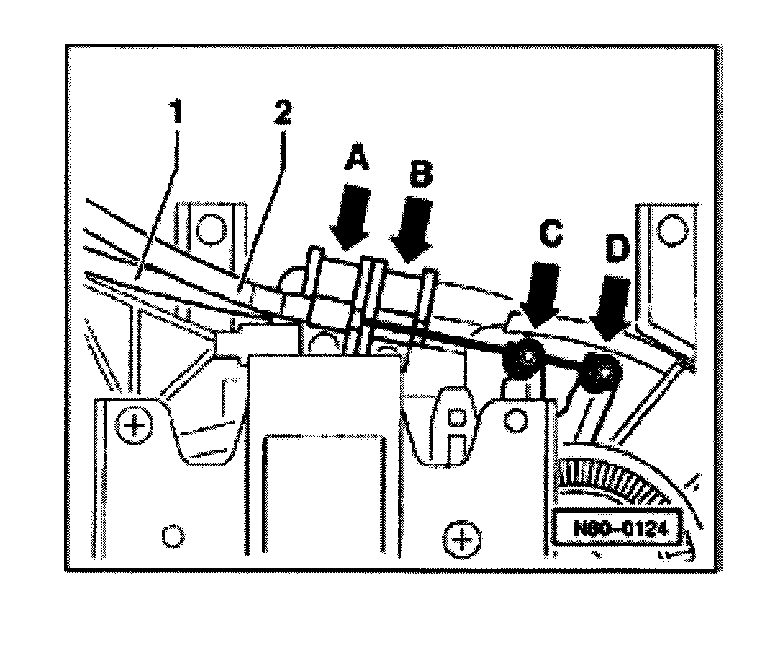

Cables, installing







1 - Central flap cable
(Identification, > 09.98 : yellow/green)
(Identification, 09.98 > : blue/yellow)
- Turn air distribution rotary knob fully to left stop.
- Connect central flap cable -arrow D-.
- Secure cable to controls with clip -arrow B-.
- Central flap cable, adjusting See Fig. 1

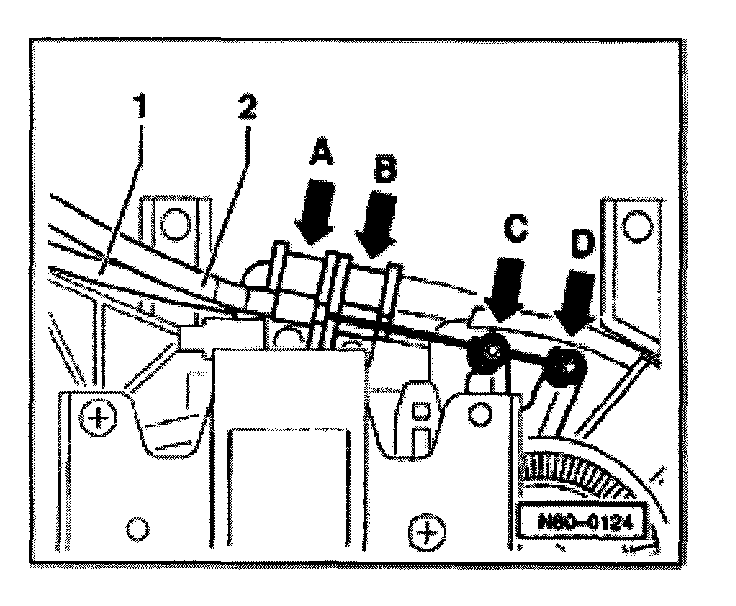

2 - Footwell/defroster flap cable
(Identification, > 09.98 : yellow/ blue)
(Identification, 09.98 > : blue/green)
- Turn air distribution rotary knob fully to left stop.
- Connect footwell and defrost flap cable -arrow C-.
- Secure cable to control with clip -arrow A- .
- Adjust footwell/defroster flap cable See Fig. 2.

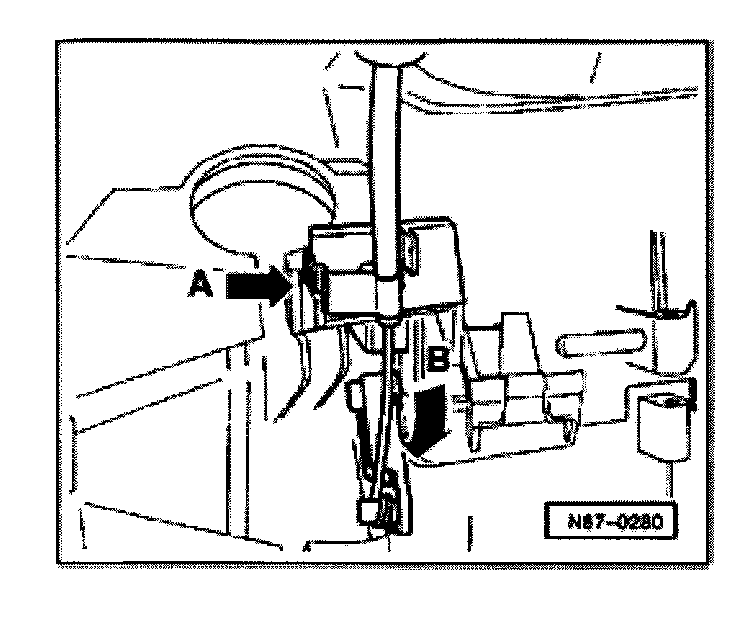

Fig. 1 Central flap cable, adjusting







Secure cable to central flap -arrow B- while simultaneously pressing lever -arrow A- in direction of arrow.

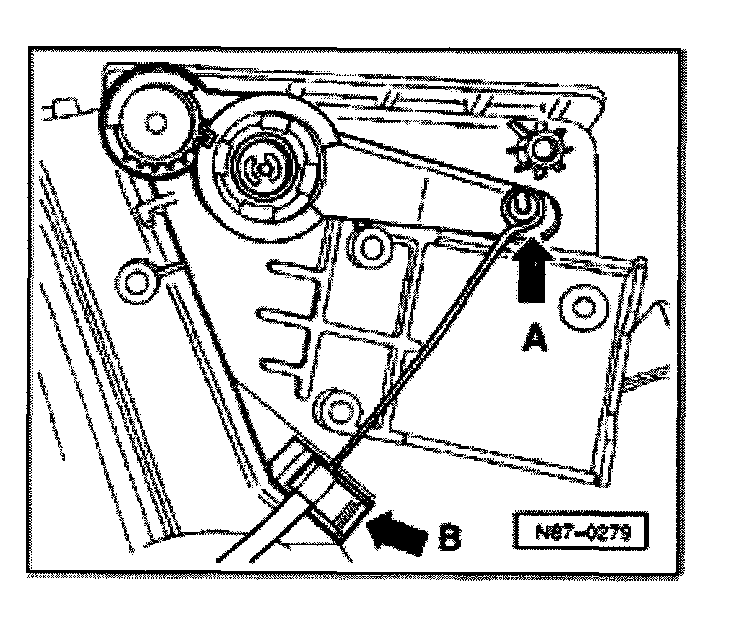

Fig. 2 Footwell/defroster flap cable, adjusting







Secure cable to footwell flap -arrow A- while simultaneously pressing lever -arrow B- in direction of arrow.
