Interior Light Switch: Service and Repair
Light Switch -E1-, Removing And Installing -

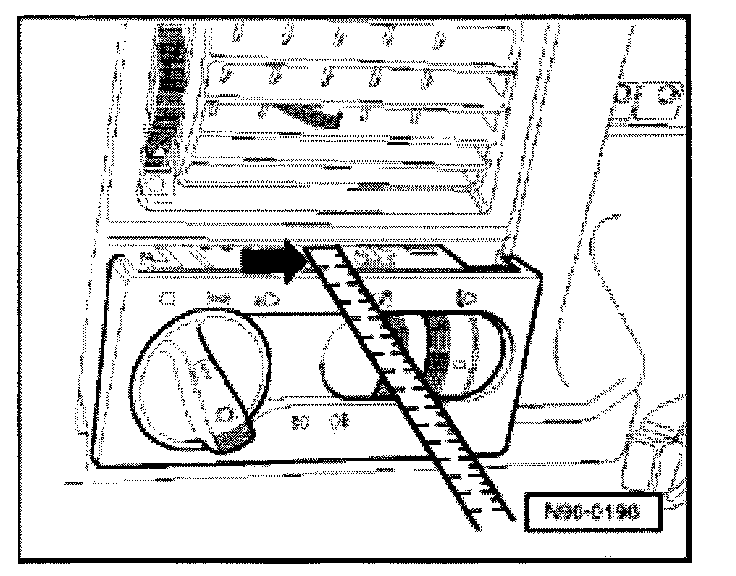

Insert a thin object (E.g.: a feeler gauge max.
0.9 mm) into gap between light switch and fresh air vent on the left above the instrument panel light dimmer.
-
Push the latch to the right -arrow- and pull out lighting switch on rotary knob.
-
Disconnect electrical connection.
-
Install in reverse order of removal.
