Alternator Brush: Testing and Inspection

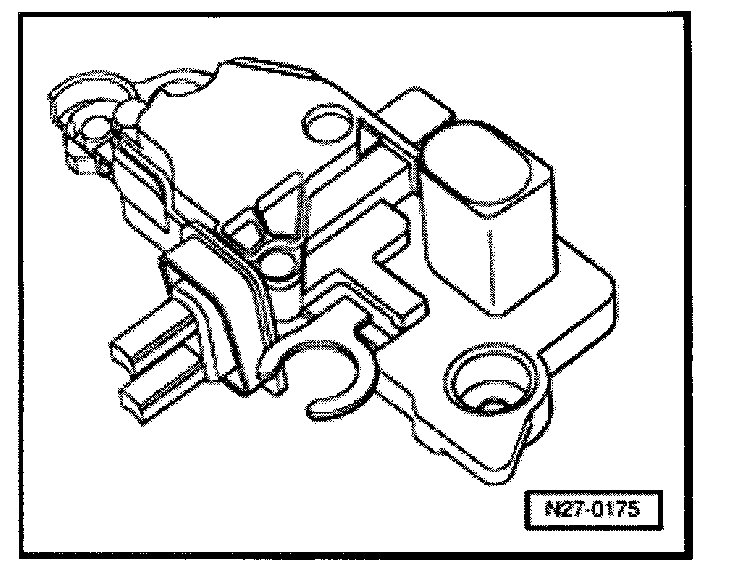

Voltage Regulator (VR) Carbon Brushes From 04.99 >, Checking







Length of new carbon brushes = 12 mm (0.5")
Wear limit = 5 mm (0.19")
Tolerance = +1 mm (0.03")
