Lower Control Arm
Special Tools and Equipment ^
3 - 204/2 Kukko puller
Removing ^
Relieve
torsion bar, refer to Torsion Bar.
^
Remove bolt for shock absorber and coupling rod/stabilizer.
^
Separate threaded connection
ball joint/wheel bearing housing.
^

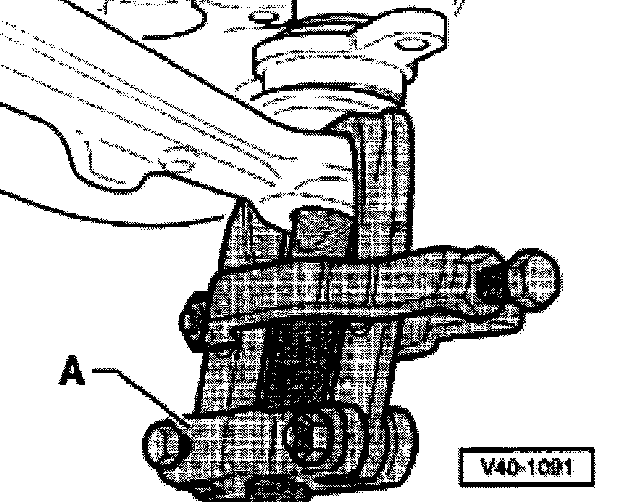

Press out
ball joint.
A - Standard puller, e.g. 204/2 Kukko
Note: Only use puller with tension bracket.
Installing Installation is the reverse of removal.
