Display Groups 50 to 69 (Speed Regulation)
Measuring Value Blocks, Evaluating Display Groups 50 To 69 (Speed Regulation)

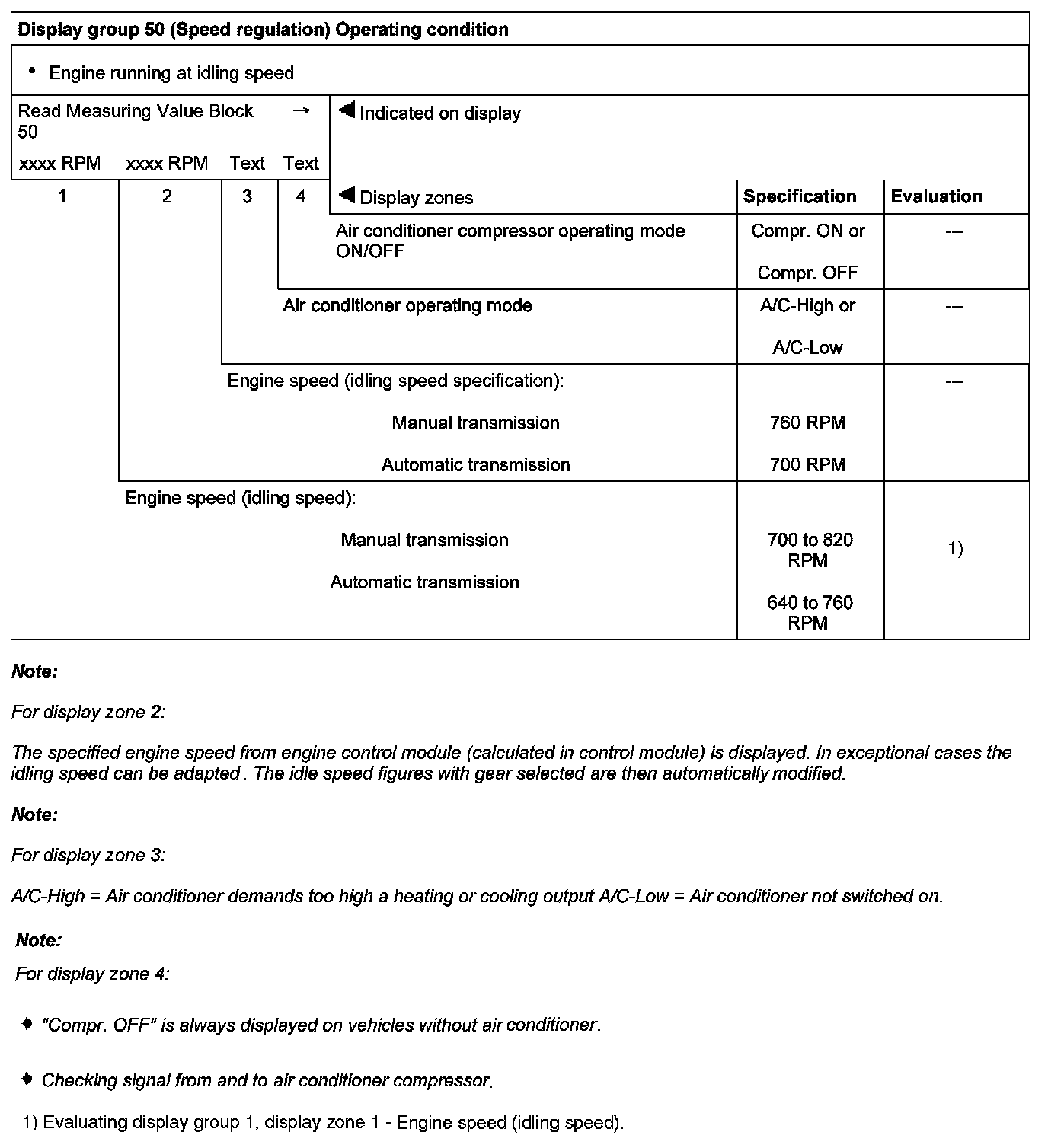

Display group 50 (Speed regulation)Operating condition
Display Group 50:

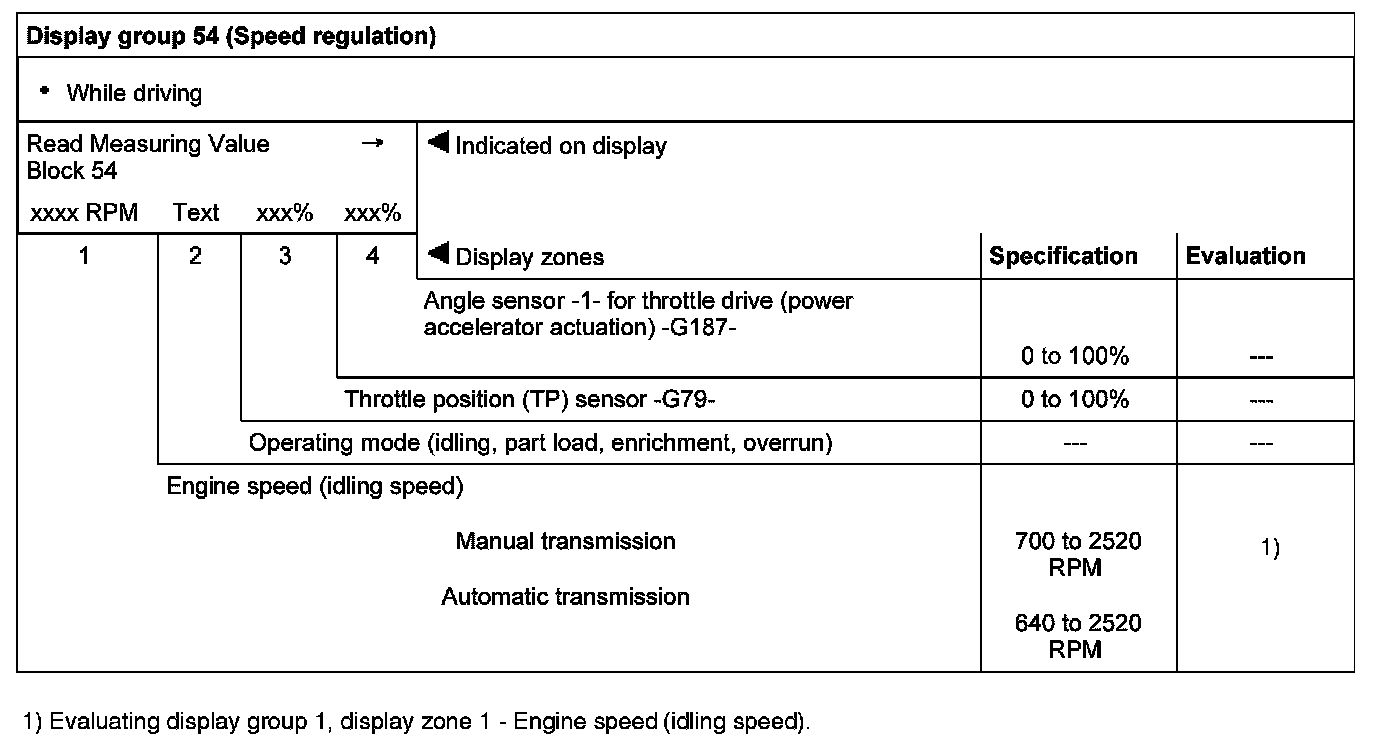

Display group 54 (Speed regulation)
Display Group 54:

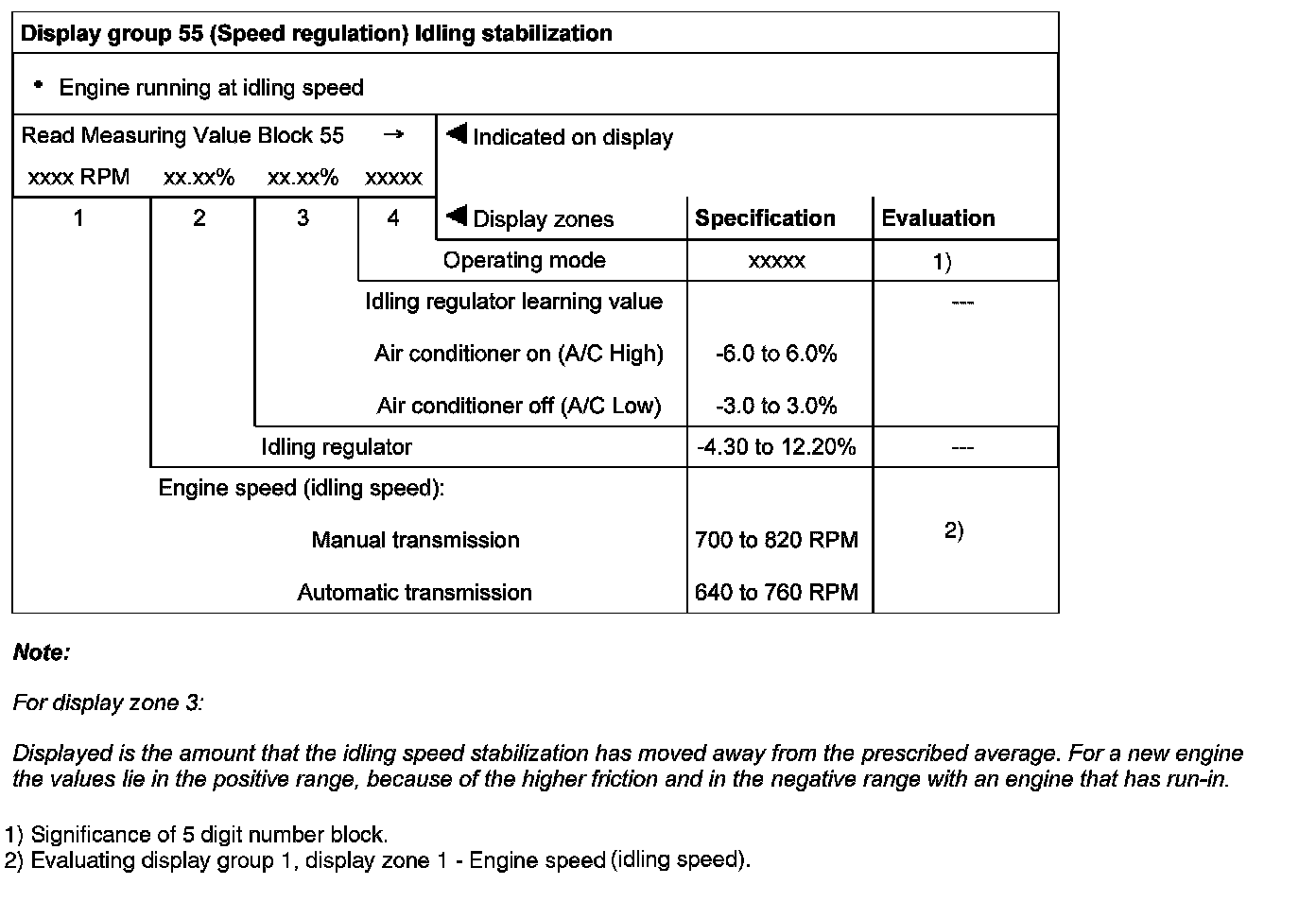

Display group 55 (Speed regulation) Idling stabilization
Display Group 55:

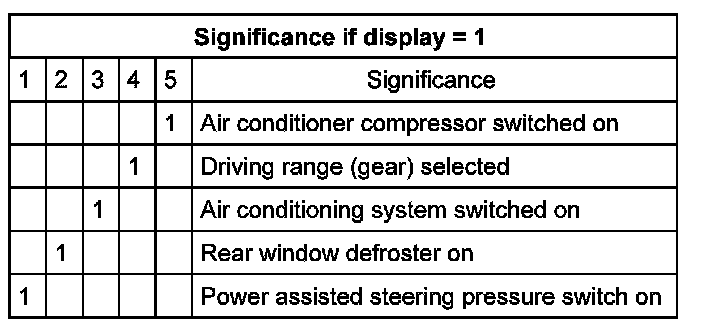

Significance of 5 digit number block

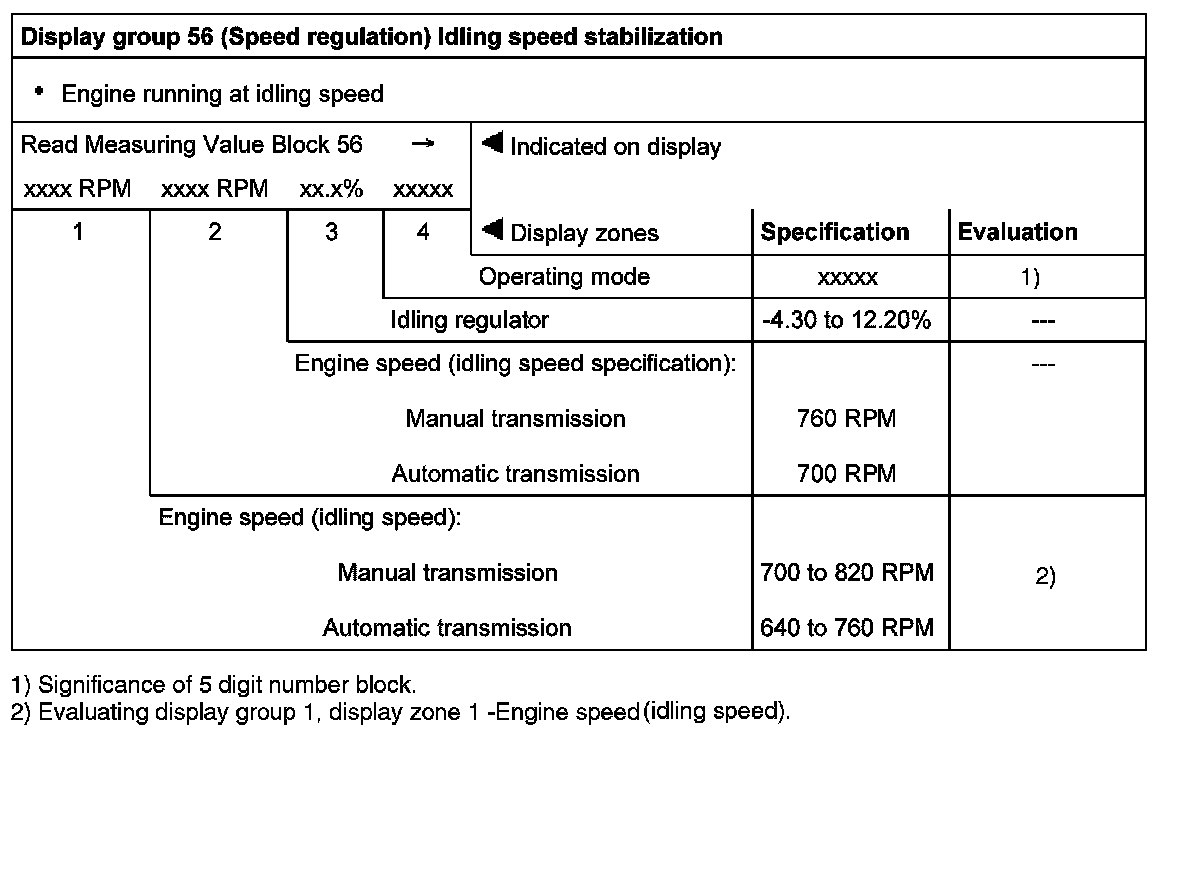

Display group 56 (Speed regulation) Idling speed stabilization
Display Group 56:
Readiness code

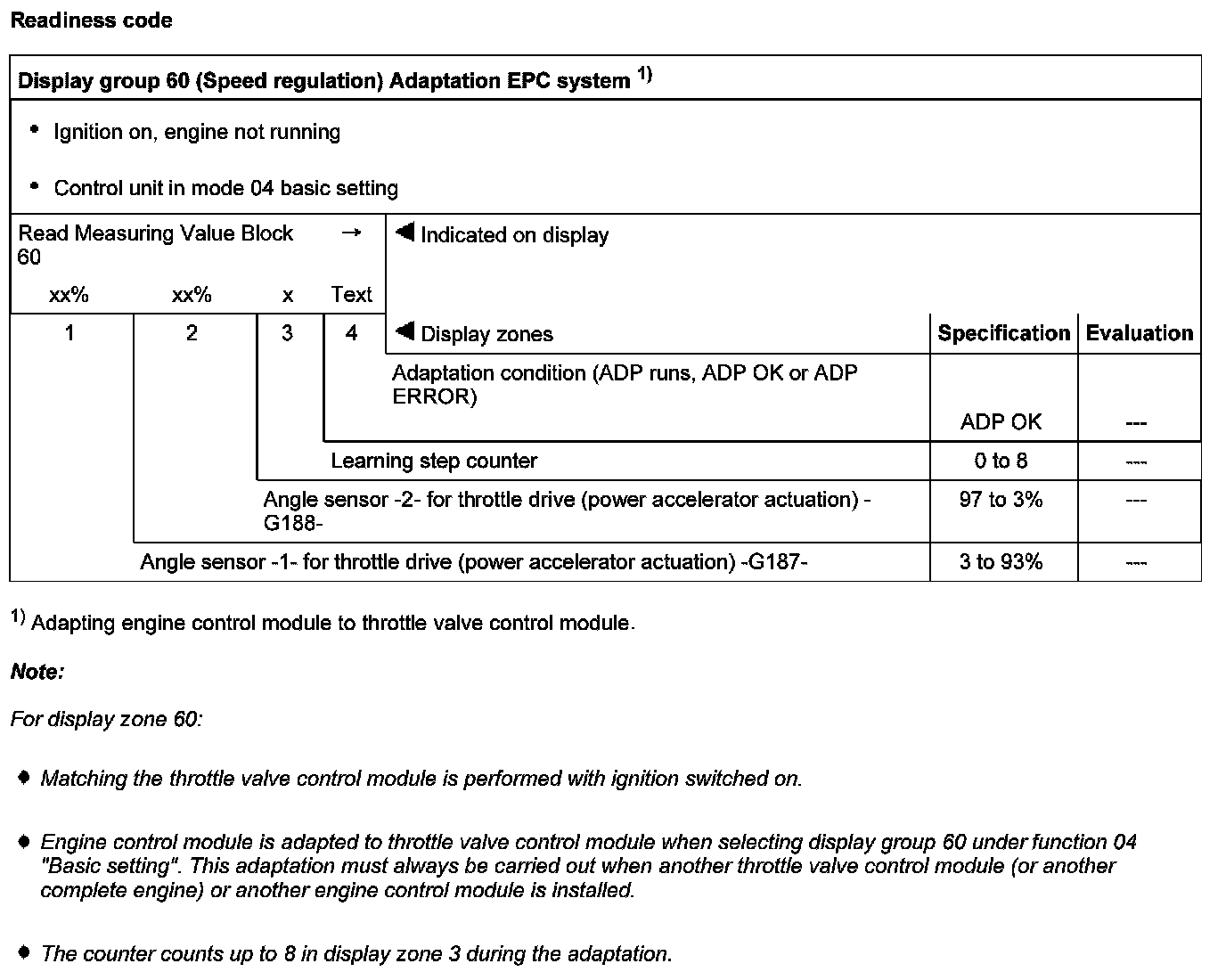

Display group 60 (Speed regulation) Adaptation EPC system
Display Group 60:
Display group 61 (Speed regulation) Electronic Power Control (EPC)
Display Group 61:

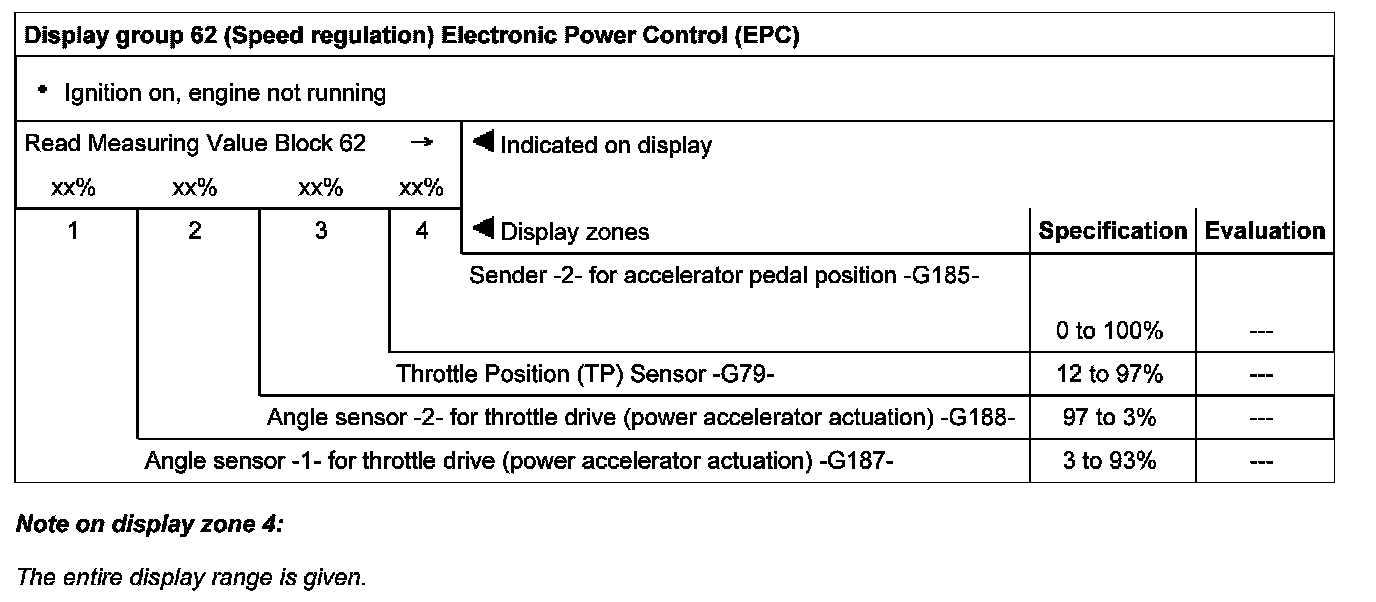

Display group 62 (Speed regulation) Electronic Power Control (EPC)
Display Group 62:
Vehicles with automatic transmissions

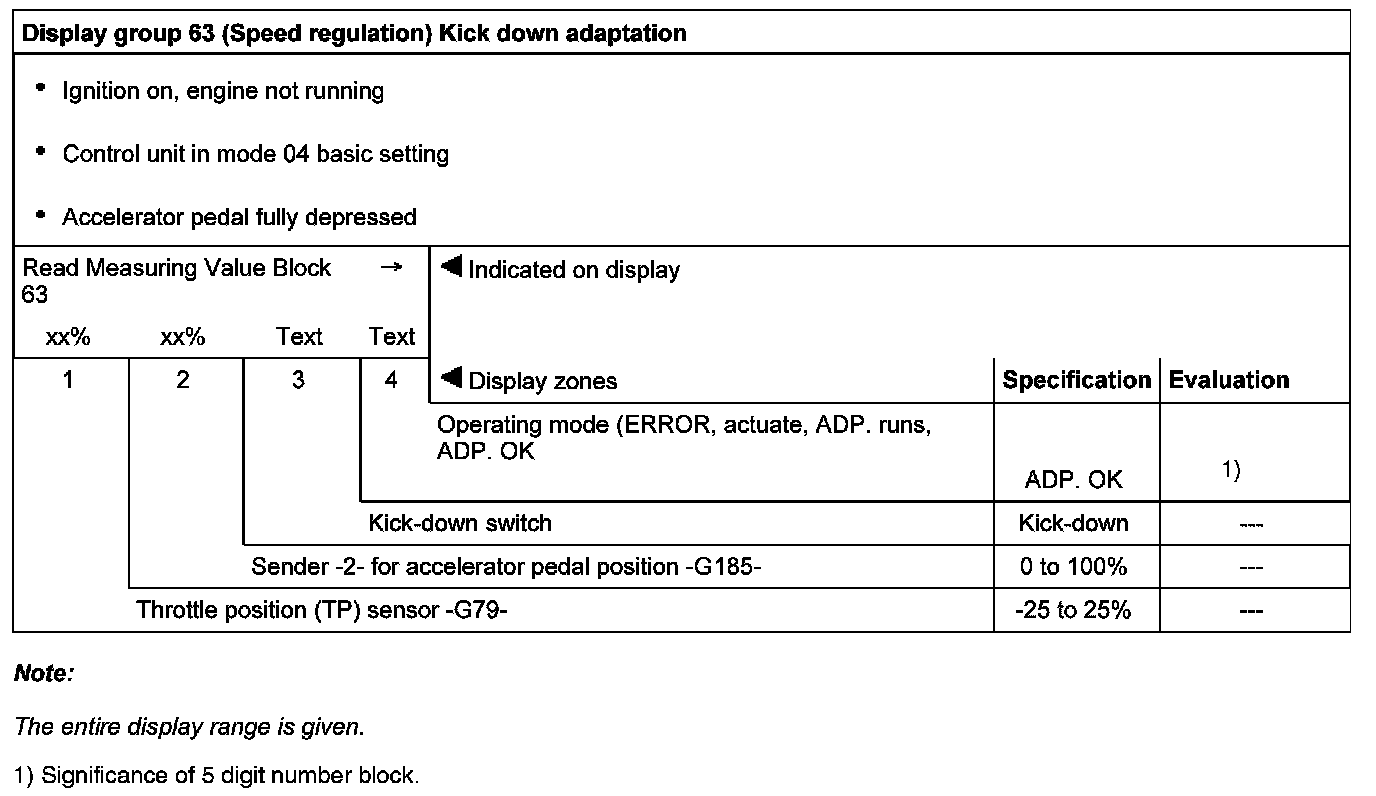

Display group 63 (Speed regulation) Kick down adaptation
Display Group 63:
Vehicles with engine code AWP and cruise control system (CCS)
Display group 66 -Cruise control system
Display Group 66:

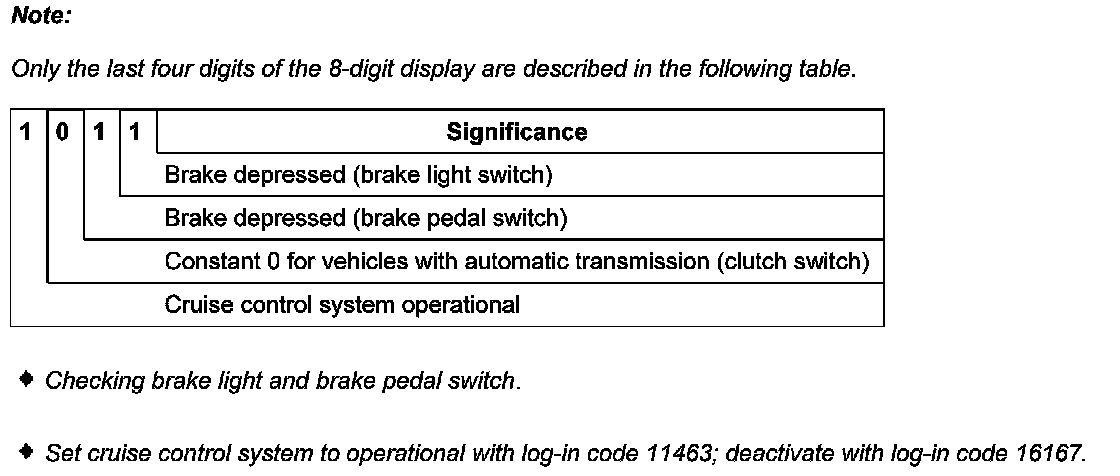

Significance of the numbers in the 8-digit display, display field 2, brake and cruise control switch

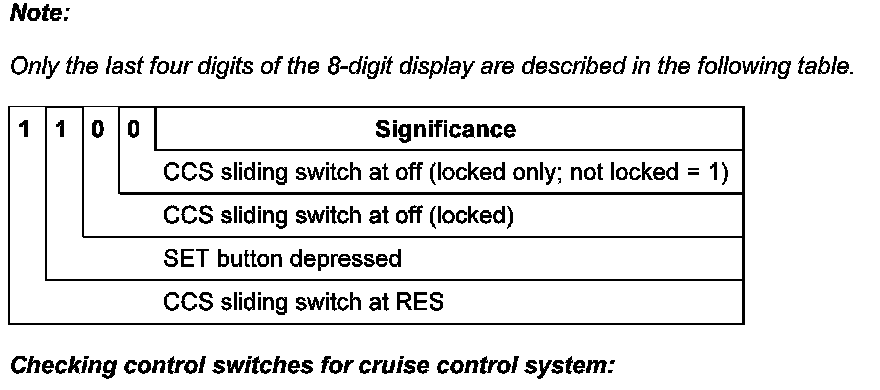

Significance of the numbers in the 8-digit display, display field 4, cruise control switch
Vehicles with engine code AWW and cruise control system (CCS)

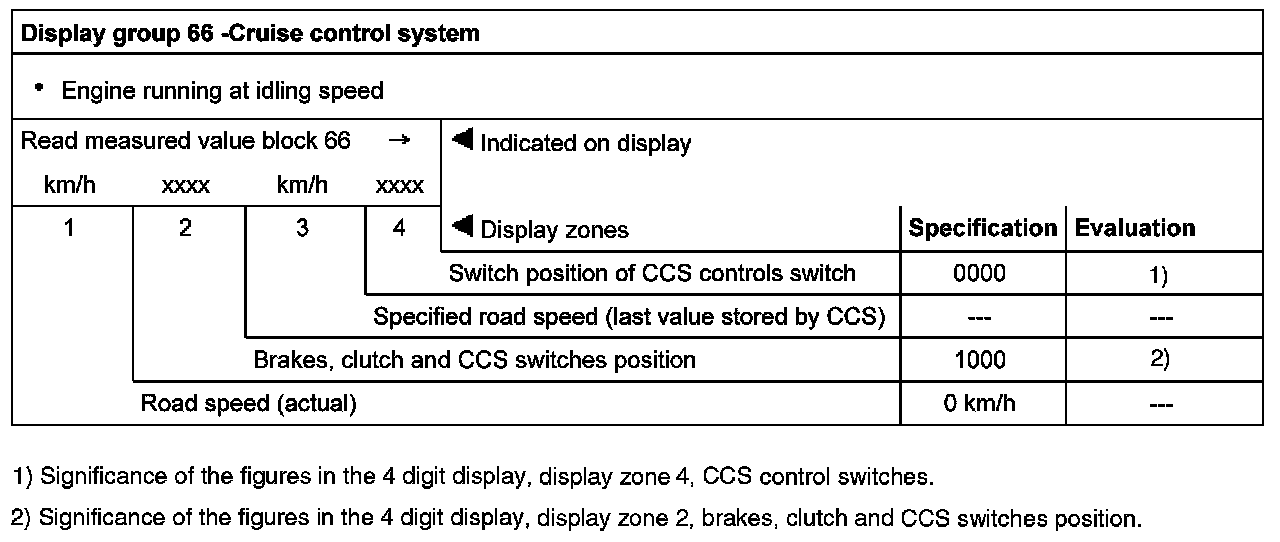

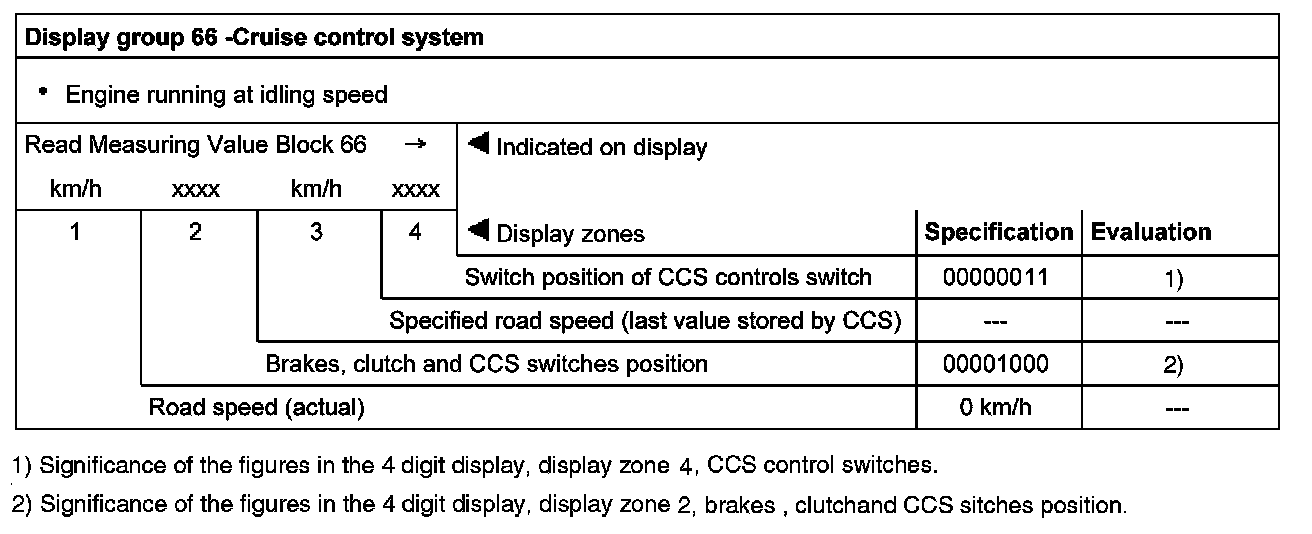

Display group 66 -Cruise control system
Display Group 66:

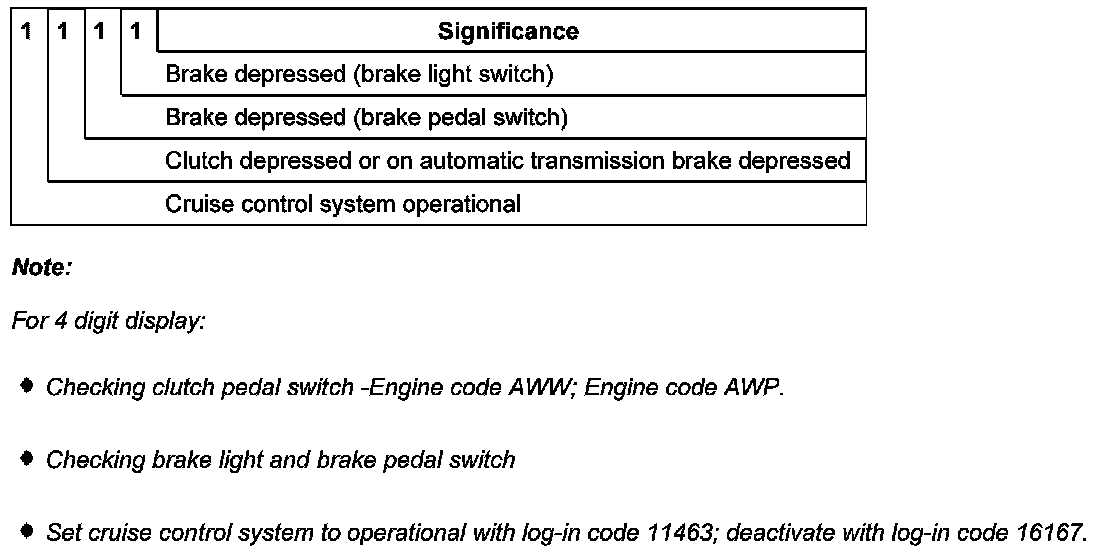

Significance of the figures in the 4 digit display, display zone 2, brakes, clutch and CCS switches position

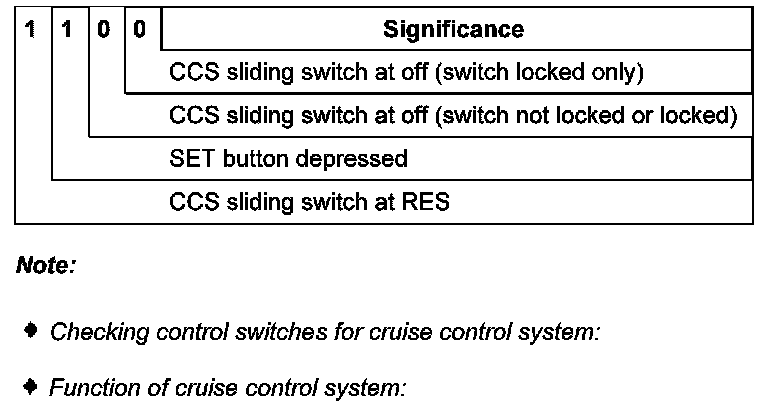

Significance of the figures in the 4 digit display, display zone 4, CCS control switches
